Chapter 2 49
Basic Operation
Configuring the RF Output

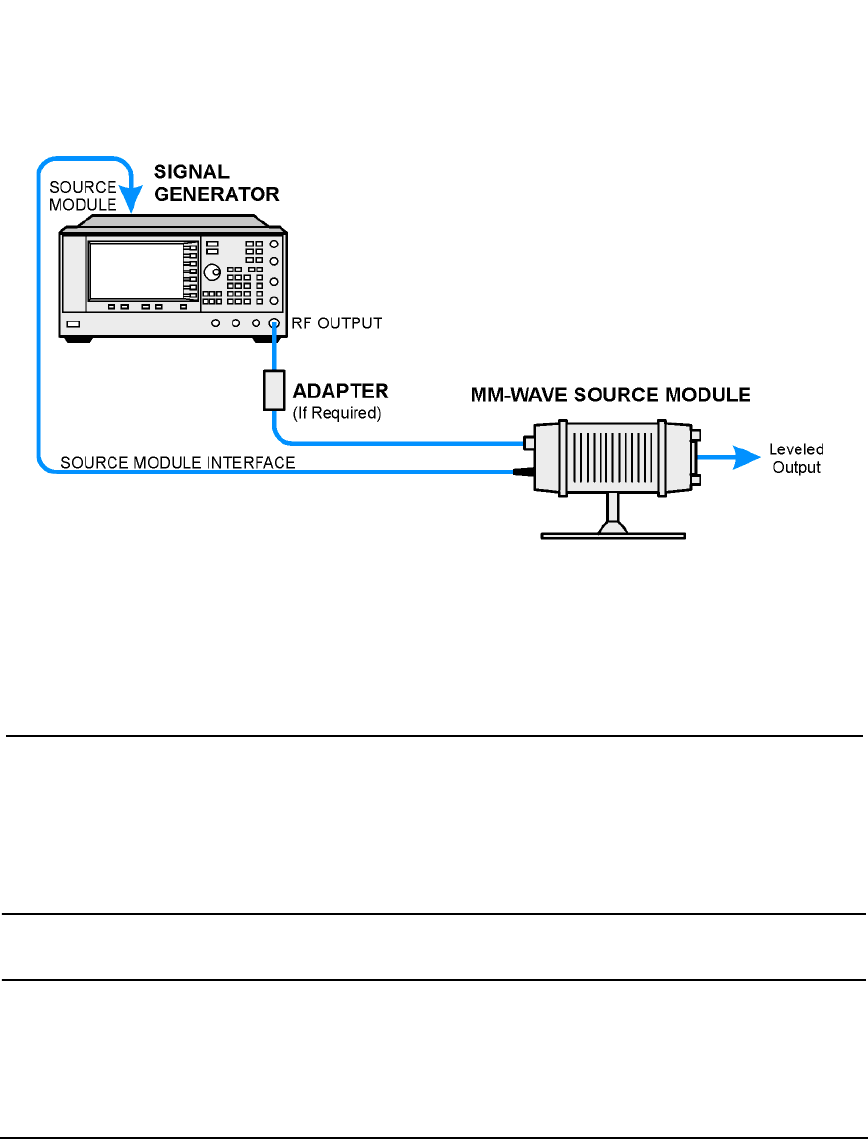

Figure 2-10 Setup for E8267C PSG or E8247C PSG and E8257C PSG with Option 1EA
The MMMOD indicator in the FREQUENCY area and the MM indicator in the AMPLITUDE area of the signal
generator’s display indicate that the mm-wave source module is active.
NOTE Refer to the mm-wave source module specifications for the specific frequency and
amplitude ranges.
2. If the RF OFF annunciator is displayed, press
RF On/Off.
Leveled power should be available at the output of the millimeter-wave source module.
To obtain flatness-corrected power, refer to “Creating and Applying User Flatness Correction” on page 64.
