150 Chapter 7
Custom Real Time I/Q Baseband
Working with Data Patterns
3. Enter the 32 bit values shown using the numeric keypad.
Bit data is entered into the Bit File Editor in 1-bit format. The current hexadecimal value of the binary
data is shown in the Hex Data column and the cursor position (in hexadecimal) is shown in the
Position indicator.
4. Press
More (1 of 2) > Rename > Editing Keys > Clear Text.
5. Enter a file name (for example, USER1) using the alpha keys and the numeric keypad.
6. Press
Enter.
The user file should be renamed and stored to the Memory Catalog with the name USER1.
Selecting a Data Pattern User File from the Catalog of Bit Files
In this procedure, you learn how to select a data pattern user file from the Catalog of Bit Files. If you have
not created and stored a user-defined data file, complete the steps in the previous section, “Creating a Data
Pattern User File with the Bit File Editor” on page 149.
1. Press
Preset.
2. Press
Mode > Custom > Real Time I/Q Baseband > Data > User File.
3. Highlight the file to be selected (for example, USER1).
4. Press
Edit File.
The Bit File Editor should open the selected file (for example, USER1).

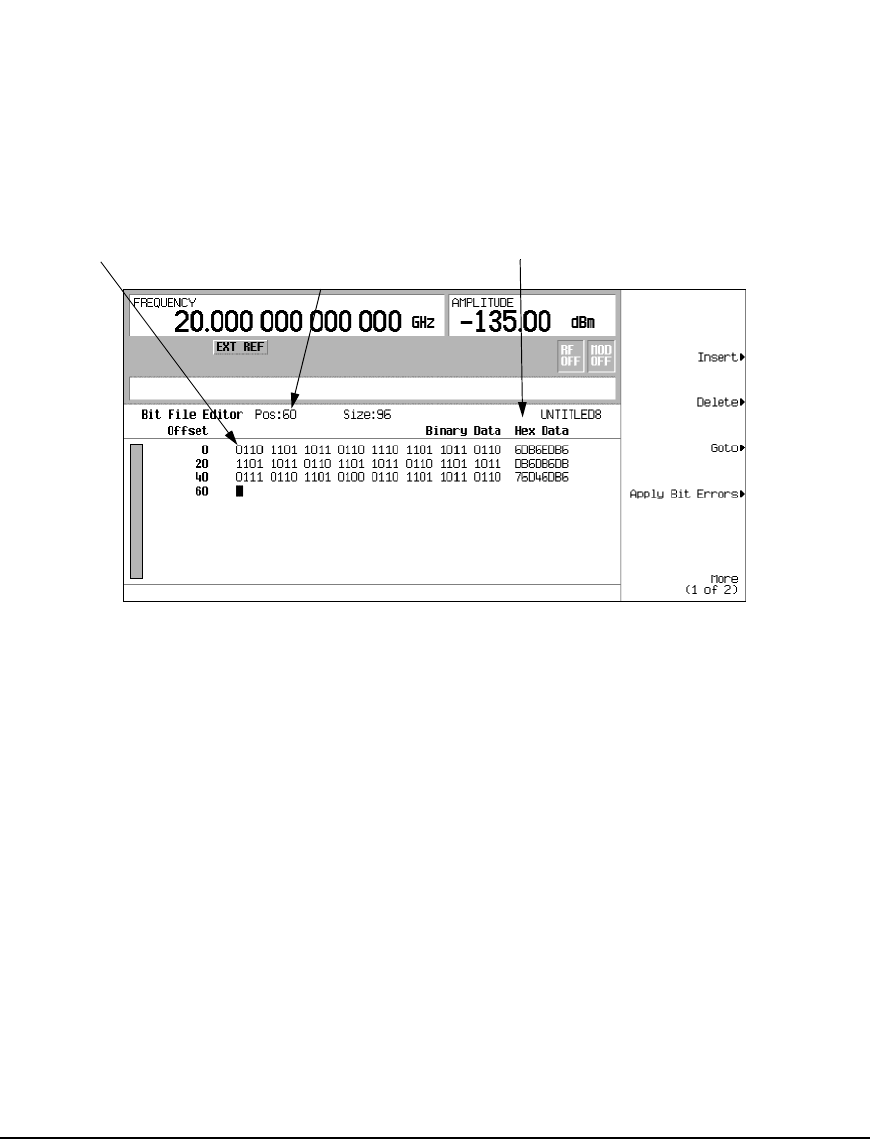

Enter These Bit Values
Hexadecimal Data
Cursor Position
