Chapter 5 109
Dual Arbitrary Waveform Generator
Using Waveform Markers

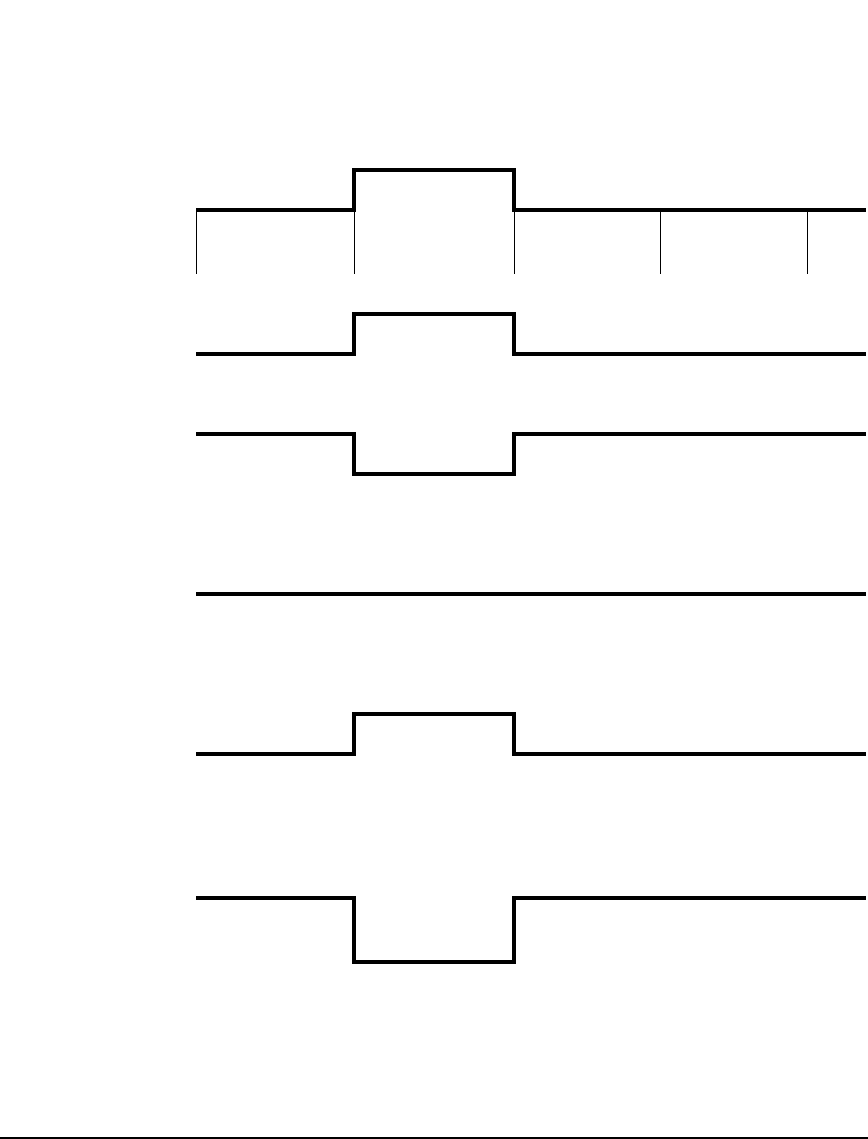

Table 5-2 Marker 2 and EVENT 2
Marker File
Bit 2
Waveform point
n
point n+1 point n+2 point n+3 . . .
Signal At
EVENT 2 Connector
For Marker Polarity = Positive
For Marker Polarity = Negative
RF Output RF Unblanked (low)
Mkr 2 to RF Blank = Off
RF Unblanked
RF Output RF Blanked RF Blanked
Mkr 2 to RF Blank = On
Marker Polarity = Positive
RF Output RF Unblanked RF Unblanked
Mkr 2 to RF blank = On
Marker Polarity = Negative
RF Blanked
