E6581160
25
3

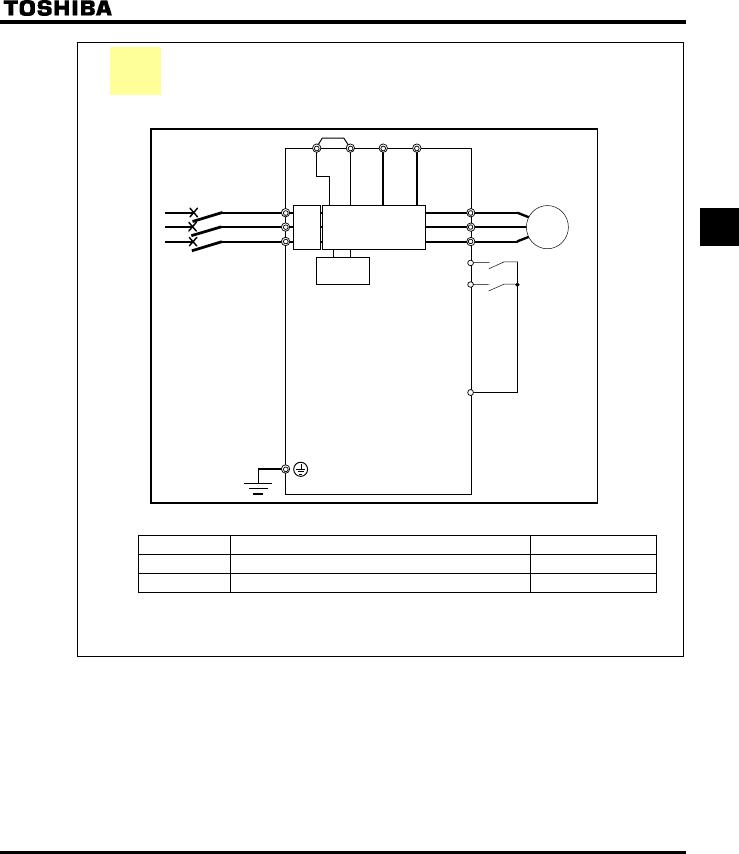

Setting the operation frequency using built-in potentiometer and
running and stopping using external signals.
(1) Wiring
(2) Parameter setting
Title Function Programmed value
EOQF
Command mode selection 0
HOQF
Frequency setting mode selection 0
(3) Operation
Run/stop: ON/OFF input to F-CC, R-CC. (Set SW1 to Sink logic)
Frequency setting: Set adjusting position of notches on the potentiometer.
* 600V models have no noise filter inside.
Braking
circuit
Motor
IM
F
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
Run forward
signal
R
CC
PO PC/-PB
PA/+
Power circuit
Run
backward
signal
Common
MCCB
Noise
filter
*
Ex.3
