3.2 How to operate the VF-S11
Overview of how to operate the inverter with simple examples.
Setting the operation frequency using built-in potentiometer and
running and stopping using the operation panel.

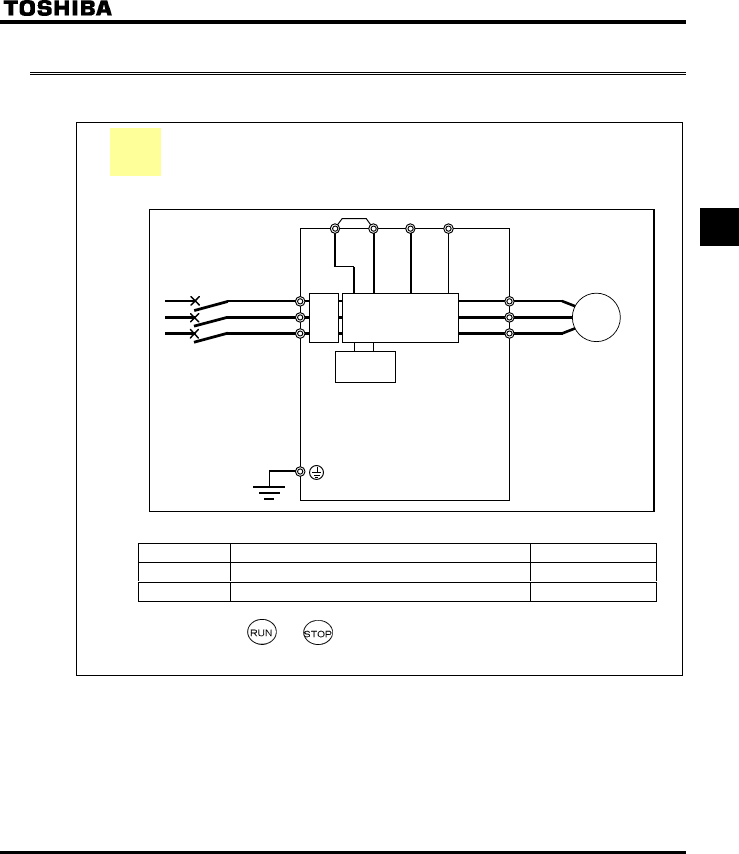

(1) Wiring
Parameter setting (default setting)
Title Function Programmed value
EOQF
Command mode selection 1
HOQF
Frequency setting mode selection 1 0
(3) Operation
Run/stop: Press the and keys on the panel.
Frequency setting: Set adjusting position of notches on the potentiometer.
* 600V models have no noise filter inside.
Braking
circuit
Motor
IM
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
PO
PC/-
PB
PA/+
Power circuit
MCCB
Noise
filter
*
Ex.1
