E6581160
24
3

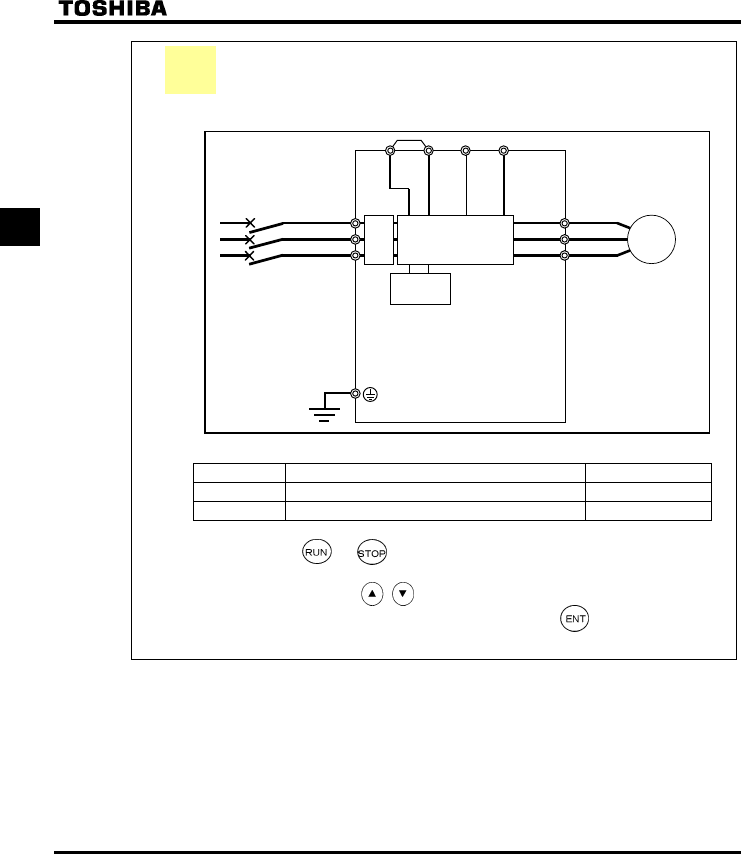

Setting the operation frequency using the operation panel and
running and stopping using the operation panel.
(1) Wiring
(2) Parameter setting
Title Function Programmed value
EOQF
Command mode selection 1
HOQF
Frequency setting mode selection 1 3
(3) Operation
Run/stop: Press the and keys on the panel.
Frequency setting: Set with the keys on the operation panel.
To store the set frequencies in memory, press the key.
HEand the set frequency will flash on and off alternately.
* 600V models have no noise filter inside.
Braking
circuit
Motor
IM
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
PO
PC/-
PB
PA/+
Power circuit
MCCB
Noise
filter
*
Ex.2
