Section 2: Assembly of Optional Equipment
RCF3696, RCFM3696, RCF3610, & RCFM3610 Rotary Cutters 326-600M
12/15/15
Table of Contents
Chain Safety Guards (Optional)
!
DANGER
Rotary Cutters have the ability to discharge objects at high
speeds; therefore, the use of front and rear safety guards is
strongly recommended when cutting along highways or in
areas where people may be present.
!
WARNING
Not all objects will be stopped by safety guards. Therefore, use
extreme caution when cutting in areas where people may be
present. It is best to operate the cutter when no one is nearby.
Stop blade rotation if someone is within several hundred feet.
Front Chain Guard
Refer to Figure 2-2:
1. Locate Single or Double Chain Guards (#1 & #2) with
notched ends out. Attach chain guards and reflector
bracket (#5) to the deck with 1/2" -13 x 3 1/2" long
carriage bolts (#3) and hex whiz nuts (#4).
NOTE: Do not tighten hardware until assemblies
are complete. Refer to “Torque Values Chart” on
page 56.
NOTE: The two carriage bolts “A” are not used if CV
driveline option is included. See “Constant Velocity
Driveline” on page 25.

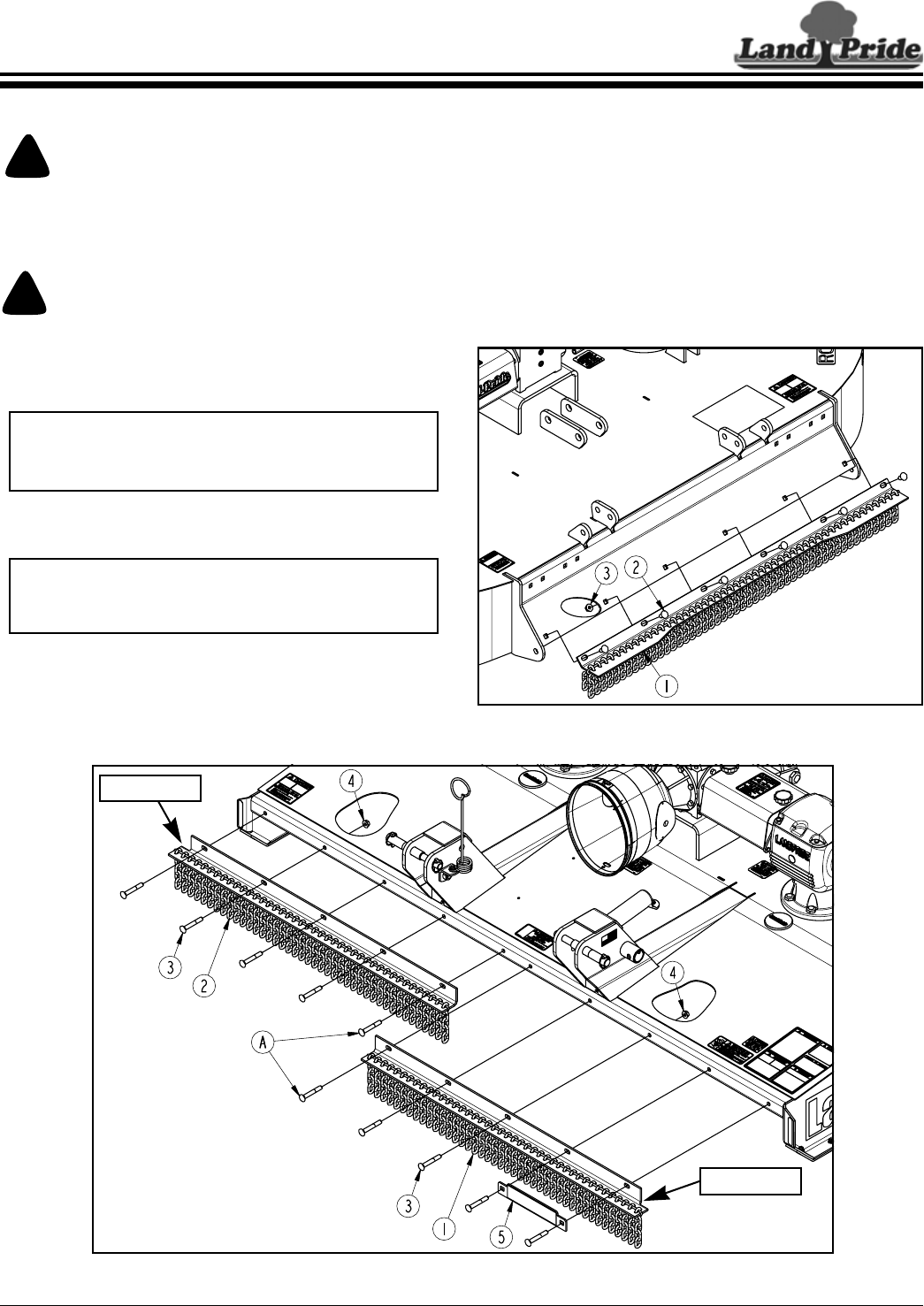

Front Chain Guard (RCF(M)3696 Single Chain Shown)
Figure 2-2
33953
Notched End
Notched End
2. If Constant Velocity driveline is included, attach
bearing support to front chain guards using
steps 1 & 2 on page 25 for installation instructions.
3. Tighten hex whiz nuts (#4) to the correct torque.
Rear Chain Guard
Refer to Figure 2-1:
1. Install Single or Double Rear Chain Guard (#1) to the
deck rear with 1/2" -13 x 1 1/2" carriage bolts (#2),
and 1/2" flange nuts (#3).
2. Tighten hex whiz nuts (#3) to the correct torque.
Rear Chain Guard (RCF(M)3696 Double Chain Shown)
Figure 2-1
33954
