Section 1: Assembly & Set-Up
12/15/15
RCF3696, RCFM3696, RCF3610, & RCFM3610 Rotary Cutters 326-600M
Table of Contents

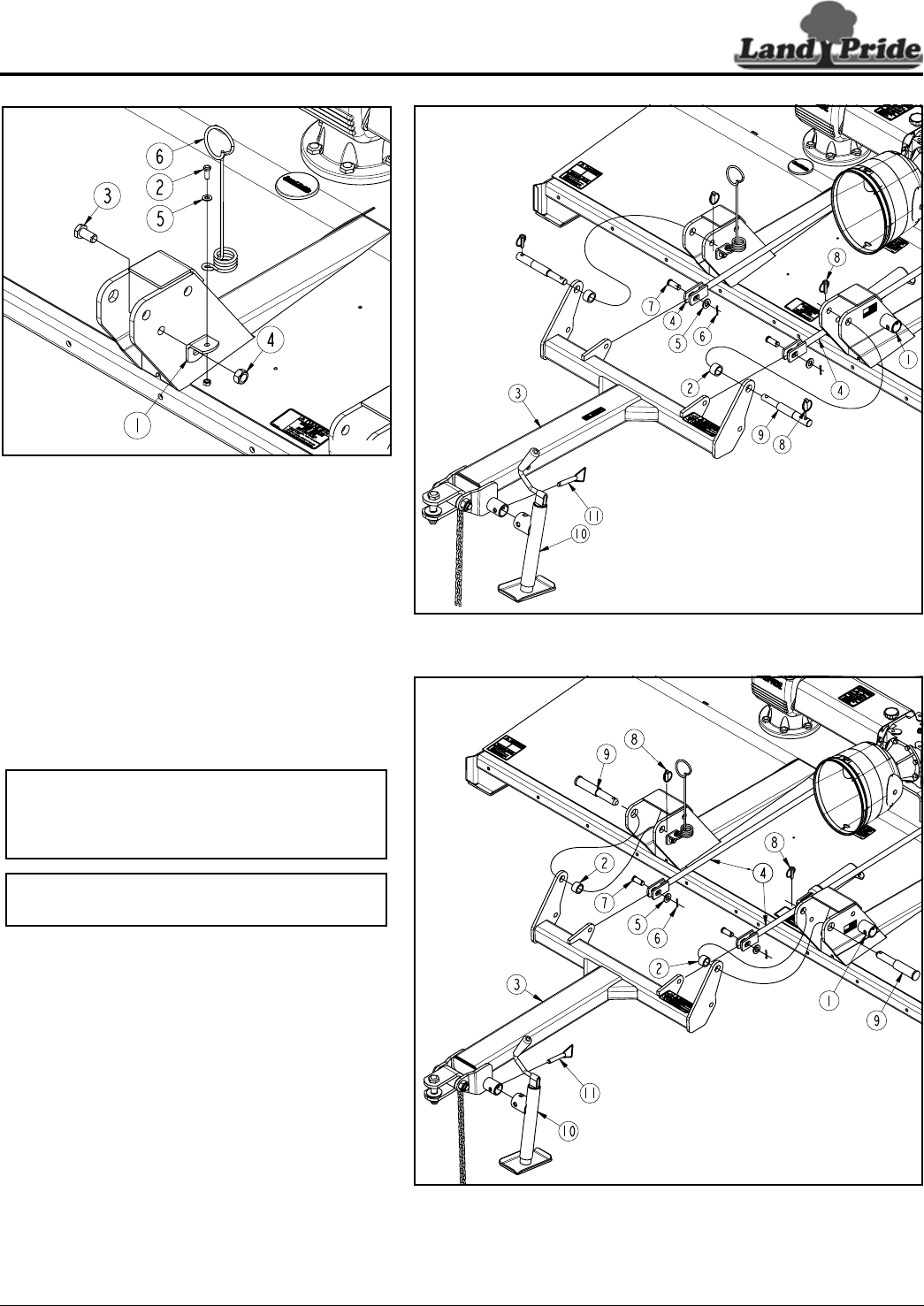

RCF(M)3696 Tongue Assembly
Figure 1-20
RCF(M)3610 Tongue Assembly
Figure 1-21
33945
35009
Spring Hose Loop Assembly
Figure 1-19
Spring Hose Loop
Refer to Figure 1-19:
1. Attach mounting bracket (#1) with
3/4"-10 x 1 1/2" GR5 cap screw (#3) and
lock nut (#4) to the right-hand clevis as shown.
Tighten nut to the correct torque.
2. Attach spring hose loop (#6) to mounting
bracket (#1) with 3/8"-16 x 1" GR5 cap
screw (#2), flat washer (#5), and lock nut (#4).
Tighten nut to the correct torque.
Tongue Assembly
Refer to Figure 1-20 for RCF(M)3696 and
Figure 1-21 for RCF(M)3610 cutters:
1. Assemble tongue (#3) to the deck with
hitch pins (#9), spacer tubes (#2), and
linchpins (#8) as shown.
2. Attach level rods (#4) to tongue (#3) with clevis
pins (#7), flat washers (#5), and cotter
pins (#6).
3. Remove parking jack (#10) from storage
mount (#1) and attach to tongue (#3) with
detent hitch pin (#11). Make sure detent pin is
fully inserted.
35006
NOTE: If preferred, the front guards may be
assembled first. See “Assembly of Optional
Equipment” on page 28 for front guard
assembly instructions.
NOTE: Do not tighten hardware to the correct
torque until assembly is complete.
