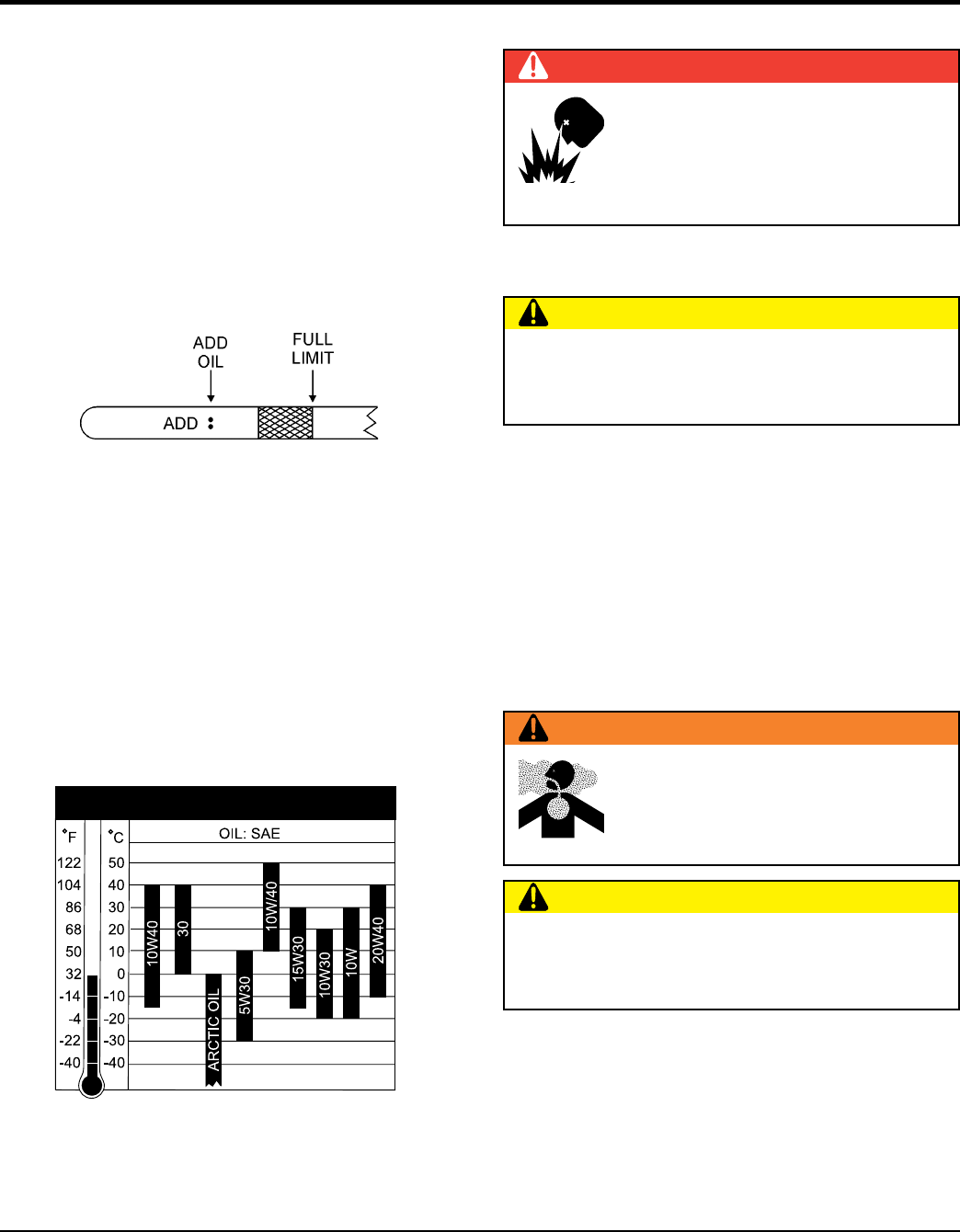

PAGE 30 — SG1400C3 STUDIO GENERATOR • OPERATION AND PARTS MANUAL — REV. #1 (02/15/12)
INSPECTION/SETUP
MAIN CIRCUIT BREAKER
The generator is equipped with a 3-pole, 600-amp circuit
breaker to protect the camlok receptacles from overload.
Make sure that the main circuit breaker is in the OFF
position prior to starting the engine.
LUBRICATION OIL
Fill the engine crankcase with lubricating oil through the
filler hole, but DO NOT overfill. Make sure the generator
is level and verify that the oil level is maintained between
the two notches (Figure 11) on the dipstick. See Table 11
for proper selection of engine oil.
Figure 11. Engine Oil Dipstick
When checking the engine oil, be sure to check if the oil is
clean. If the oil is not clean, drain the oil by removing the
oil drain plug, and refill with the specified amount of oil as
outlined in the Cummins Engine Owner’s Manual. Oil
should be warm before draining.
Other types of motor oils may be substituted if they meet
the following requirements:
API Service Classification CC/SC
API Service Classification CC/SD
API Service Classification CC/SE
API Service Classification CC/SF
Table 11. Recommended Motor Oil
FUEL CHECK
Refilling the Fuel System
This generator has a fuel tank located in the sub base
assembly frame. ALWAYS fill the fuel tank with clean fresh
#2 diesel fuel. DO NOT fill the fuel tank beyond its capacity.
Pay attention to the fuel tank capacity when replenishing
fuel. The fuel tank cap must be closed tightly after filling.
Handle fuel in a safe container. If the container does
not have a spout, use a funnel. Wipe up any spilled fuel
immediately.
Refueling Procedure:
DANGER
Fuel spillage on a hot engine can cause
a fire or explosion. If fuel spillage occurs,
wipe up the spilled fuel completely to
prevent fire hazards. NEVER smoke
around or near the generator.
CAUTION
ONLY properly trained personnel who have read
and understood this section should refill the fuel tank
system.
WARNING
Diesel fuel and its vapors are dangerous
to your health and the surrounding
environment. Avoid skin contact and/or
inhaling fumes.
CAUTION
ALWAYS make sure generator is on firm level ground
before refueling to prevent spilling and maximize the
amount of fuel that can be pumped into the tank.
