SG1400C3 STUDIO GENERATOR • OPERATION AND PARTS MANUAL — REV. #1 (02/15/12) — PAGE 23
BASIC TRAILER COMPONENTS
The definitions below describe the controls and functions
of the Trailer (Figure 6).
1. Pintle Eye Coupler — Adjustable 3-inch eye coupler
rated at 20,000 lbs. (9,072 kg).
2. Hydraulic Brake Actuator — Replaceable bolt-on
actuator, assists in the stopping of the trailer. Rated at
12,000 lbs. (5,443 kg)
3. Spare Tire — Tongue mounted spare tire with anti-theft
wheel lock and locking mount.
4. Jackstand — Tongue mounted swivel jack with flat
disc foot, rated 5000 lbs. (2,268 kg) lift.
5. Reflectors — Side mounted reflectors are mounted on
both sides of the trailer to provide high visibility when
towing in dark areas.
6. Tires — Recommended tire size is LT235/85R16 LR E.
Tire load rating is 3,500 lbs/tire.
7. Reflective Tape — Provides high visibility when towing
in dark areas.
8. Brake/Turn Lights — DOT approved tail, stop, and
turn signal lamps.
9. Bumper Guard — Protects trailer frame when coming
in contact with stationary objects.
10. License Plate Lights — Illuminates license plate.
11. Axle — Tandemum axle, Gross Axle Weight Rating
(GAWR) 6,000 lbs. (2,722 kg) Gross Vehicle Weight
Rating is 10,000 lbs. (4,536 kg).
12. Rear Bumper Reflectors — Provides high visibility
when towing in dark areas.
13. Safety Chains — Connect to towing vehicle. Reference
towing section in this manual.
14. Tool Box — Tongue mounted tool box, lift spare tire
to gain access to this compartment
15. Fuel Tank — Holds 150 gallons (568 liters) of No. 2
diesel fuel.
16. Fuel Tank Filler Port — Fuel filler port, 2-inch (51 mm)
neck.
17. Side Running Lamps — Provides high visibility when
towing in dark areas.
18. Tool Box Locking Latch — Release this latch to gain
access to tool box. Pull spare tire upward and back.
19. Plug Holder — Holds trailer harness (lights) cable plug.

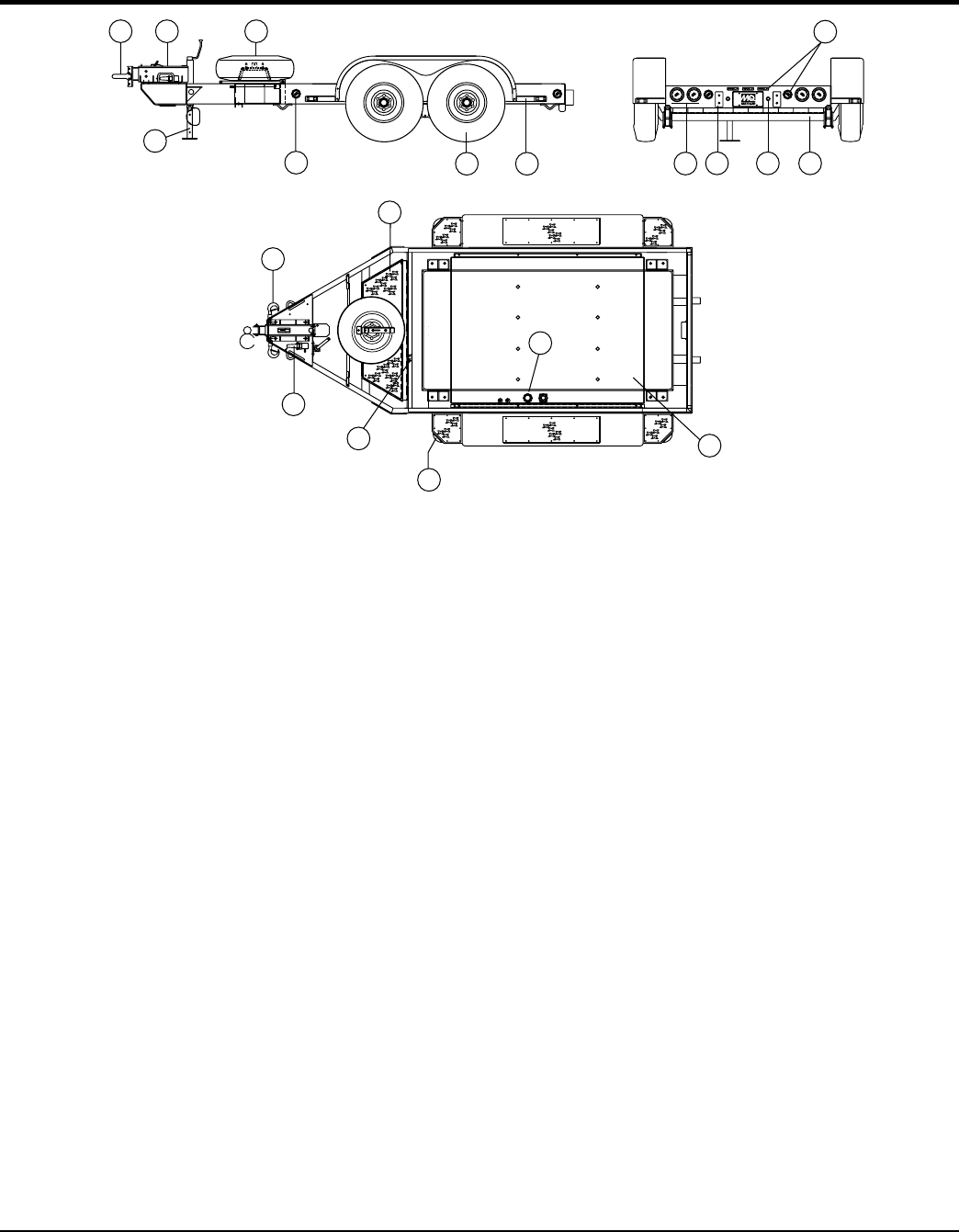

Figure 5. Basic Trailer Components
