SG1400C3 STUDIO GENERATOR • OPERATION AND PARTS MANUAL — REV. #1 (02/15/12) — PAGE 21
18
19
20
21
22
28
29
23
24
25
26
27
24
2
10
11
15
30
31
32
33
34
Inside
Housing
17
4
6
3
1
5
7
14
16
8
9
12
13

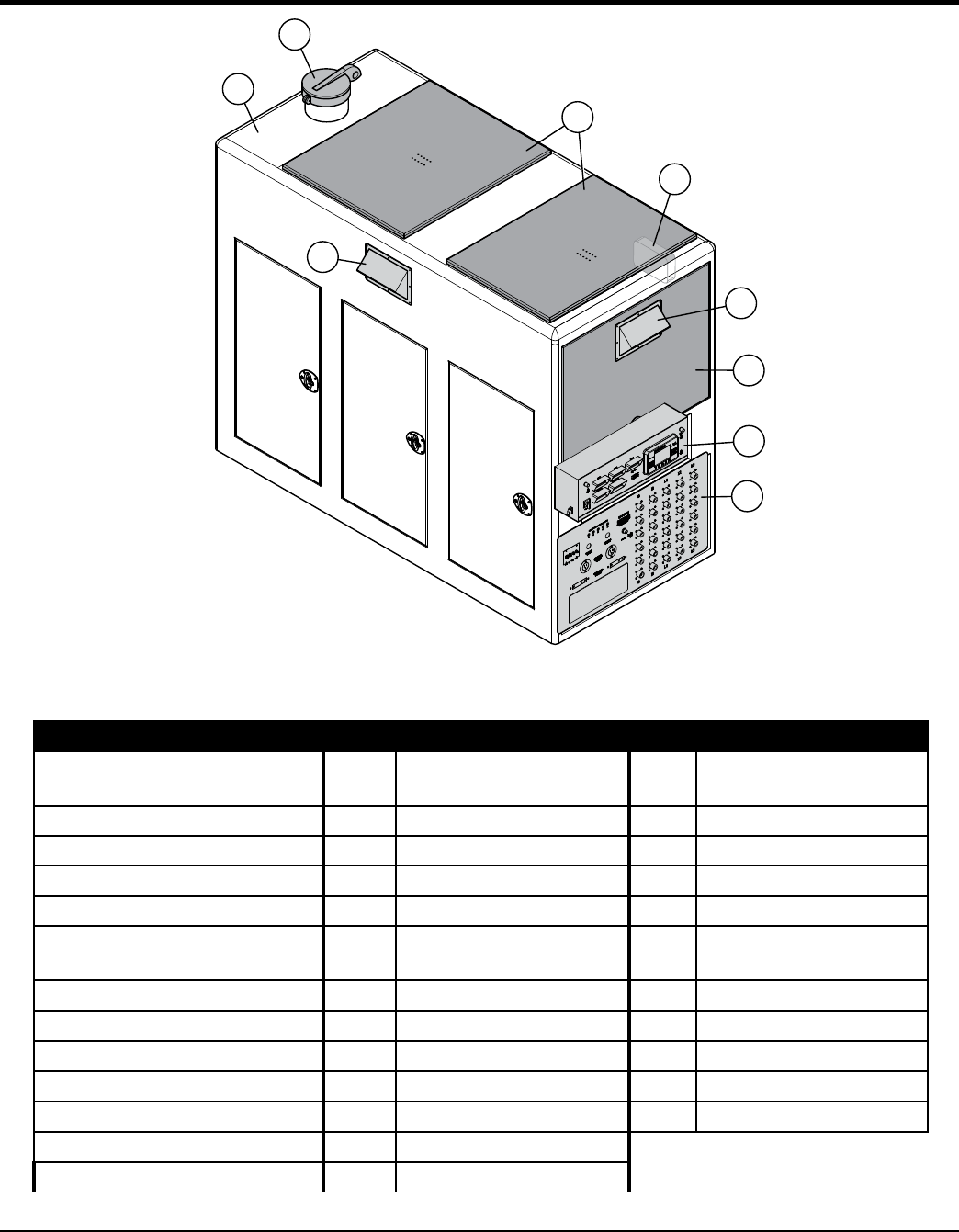

GENERATOR MAJOR COMPONENTS
Figure 3. Major Components
Table 5. Generator Major Components
ITEM
NO.
DESCRIPTION
ITEM
NO.
DESCRIPTION
ITEM
NO.
DESCRIPTION
1 Muffler 13 Hydraulic Oil Sight Gauge 25 Rain Door Intake Vent
2 Air Filter 14 Fuel Priming Pump Switch 26 Control Box
3 Hydraulic Cylinders 15 Fuel-Water Separator 27 Camlok Panel
4 Coolant Overflow Bottle 16 Hydraulic Actuator Manifold 28 Rain Cap
5
Charge Oil Cooler
(Hydraulic)
17 Radiator 29 Housing Assembly
6 Charge Air Cooler 18 Interior Lights 30 Water Drain
7 Saddlebox 19 Circuit Breaker Panel 31 Oil Drain
8 3 kVA Transformer 20 Fuel Pump 32 Fuel In
9 Generator 21 Hydraulic Oil Tank 33 Fuel Out
10 Fuel Gauge 22 Batteries 34 GPS Module (Option)
11 Fuel Cap, Vented 23 Roof Intake/Exhaust Vents
12 Hydraulic Oil Filter 24 Exterior Lights (Option)
