Installation TDB3108, WF3208 Terreon
®
54" Circular
7Bradley Corporation • 215-1187 Rev. N; EN 06-915B 4/6/2007

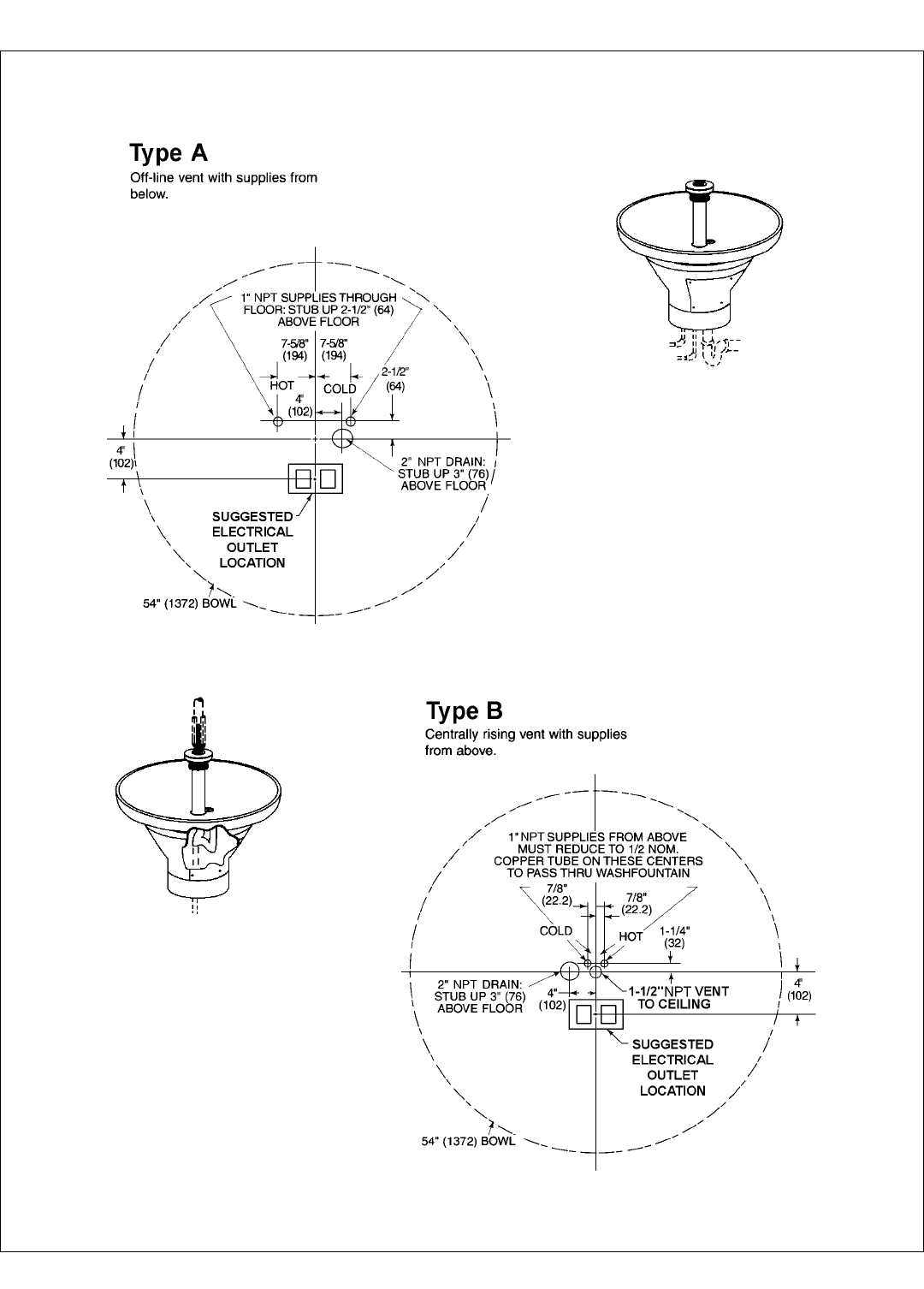

Rough-In Specifications
NOTE: Supply lines for one to two
washfountains should be 1"; for
three washfountains, 1-1/4". For
more than three washfountains,
pipe sizes should be increased
proportionately.
NOTE: Supply lines for one to two
washfountains should be 1"; for
three washfountains, 1-1/4". For
more than three washfountains,
pipe sizes should be increased
proportionately.
Figure 2a
Figure 2b
