TDB3108, WF3208 Terreon
®
54" Circular Installation
16 4/6/2007 Bradley Corporation • 215-1187 Rev. N; EN 06-915B
5

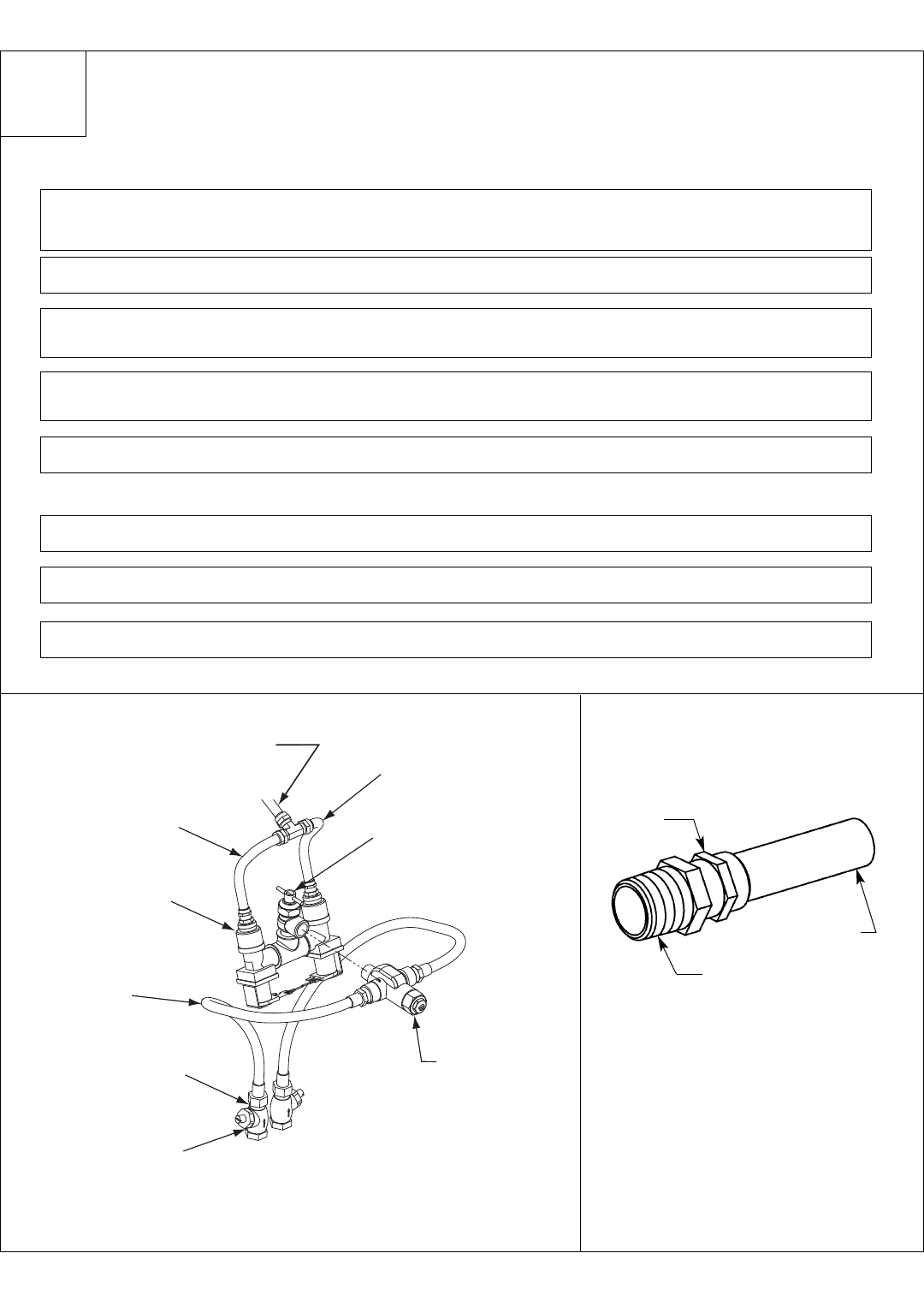

Valve and tubing connections
TEE
269-764
VOLUME CONTROL
S02-045
THERMOSTATIC
MIXING VALVE
ASSEMBLY
S67-597
STOP/CHECK
VALVE
1/2" DIA. TUBE
FROM SPRAYHEAD
1/2" DIA. TUBE
R68-600012
SOLENOID
ASSY.
S08-055
FLEXIBLE
HOSE
FILTER WASHER
Figure 10a
Figure 10b
NUT
MALE TUBE
CONNECTOR
TUBING
VALVE ASSEMBLY S50-369
NOTE: Flush supply lines before making connections.
Do not apply pipe sealant to compression fittings.
CONNECT 1/2" DIA. TUBING TO TEE AND SOLENOID ASSEMBLY, TWO PLACES. THE MALE CONNECTOR
(FIGURE 10B) FOR THE VALVE ASSEMBLY WILL REMAIN TIGHT AND LEAKPROOF WHEN TUBING IS CUT AND INSTALLED PROPERLY.
FOLLOW THE PROCEDURES BELOW WHEN INSTALLING TUBING TO ENSURE THAT YOU ACHIEVE A LEAKPROOF SEAL.
A
USING A SHARP RAZOR, CUT TUBING SQUARELY AND REMOVE ANY BURRS. DO NOT PINCH OR CRUSH END OF TUBING.
•
LOOSEN NUT ON FITTING. MOISTEN END OF TUBE AND PUSH INTO FITTING UNTIL IT IS FIRMLY SEATED. TIGHTEN NUT TO SECURE
TUBE TO FITTING (MAKE SURE NUT IS SECURELY TIGHTENED).
•
IF CONNECTOR LEAKS, RESEAT TUBING ACCORDING TO ABOVE PROCEDURE. IF LEAKING PERSISTS, REPLACE MALE
CONNECTOR, OR CALL YOUR BRADLEY REPRESENTATIVE FOR ASSISTANCE.
•
HANG VALVE ASSEMBLY ON PEDESTAL BRACKET (SEE FIGURE 11 ON PAGE 17). USE WIRE TIE TO SECURE VALVES.
B
CONNECT THE 1/2" NPT FEMALE END OF THE STOP/CHECK VALVES TO THE ROUGH-INS.
C
ATTACH FLEXIBLE HOSING TO THERMOSTATIC MIXING VALVE, TWO PLACES.
D
INSERT THE FILTER WASHERS (PROVIDED) INTO THE SWIVEL NUT AT THE END OF THE SUPPLY HOSES AND CONNECT TO THE
STOP/CHECK VALVES.
E
NOTE! For “O” and “B” units (overhead supplies) Skip steps C through E
