TDB3108, WF3208 Terreon
®
54" Circular Installation
14 4/6/2007 Bradley Corporation • 215-1187 Rev. N; EN 06-915B
Adaptive infrared assembly for B drain and H drain units
with Tie Pipe option
4b
SUPPORT TUBE
GASKET
125-011
SUPPORT TUBE
(STD) S57-005
(JUV) S57-006
PRE-PACK
S45-1466
VENTED TRAP
111-024
TIE BAR
PRE-PACK
S45-056
PEDESTAL ASSY.
S17-242
COVER
107-185 (B)
107-048 (H)
I.R. MODULE ASSY.
S50-344
1/2" SUPPLY TUBE
SPRAYHEAD
S05-054
DRAIN
S45-273
VALVE ASSY.
S50-369
ACCESS PANEL
186-1456
TERREON® DEEP BOWL
(ADA bowl shown, classic bowl
is optional) Part No. varies with color
of bowl. Contact your Bradley Rep.
for assistance.
B/H
(B shown)
COVER

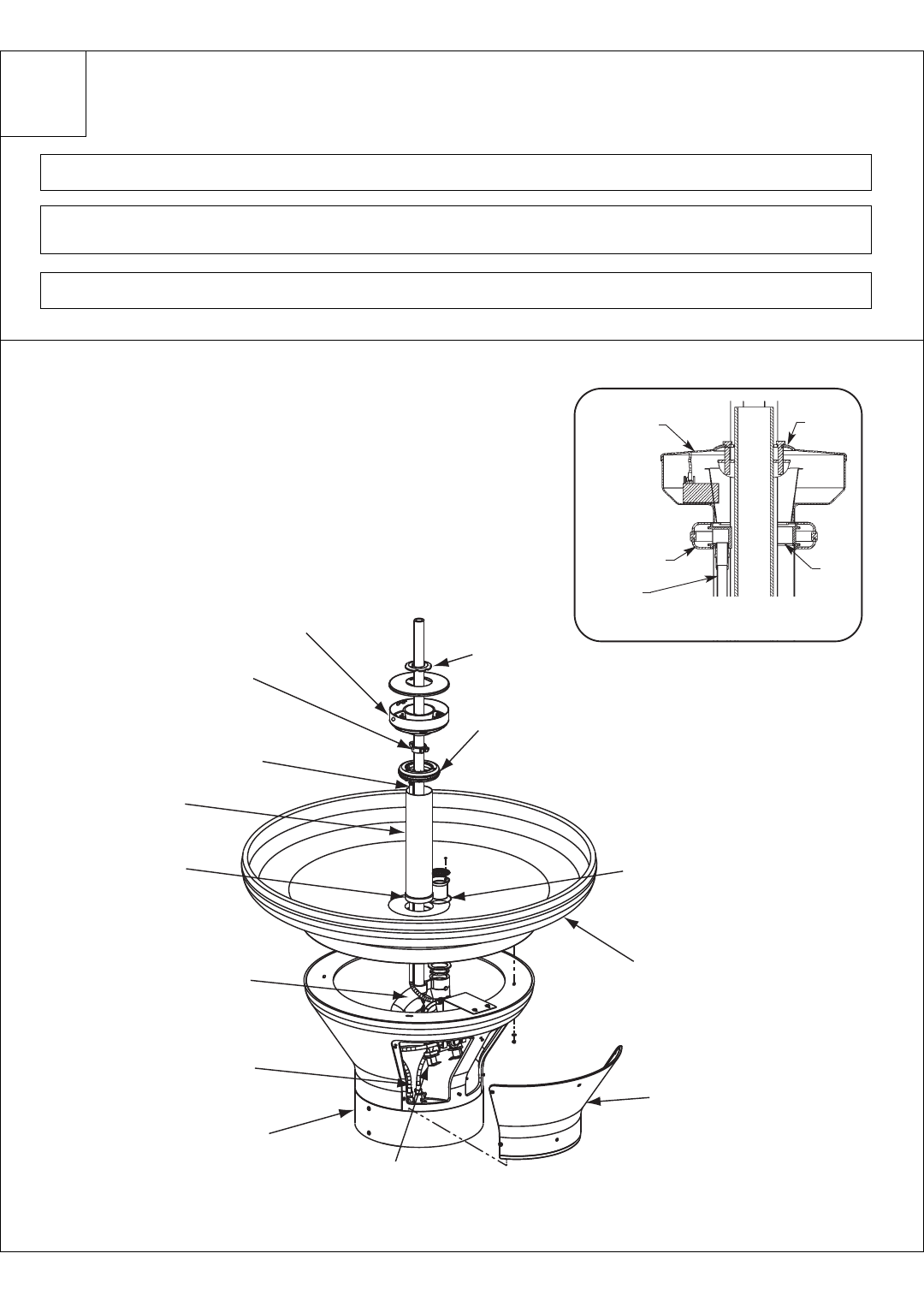

SECTION VIEW OF
B/H UNIT ASSEMBLY
SPRAYHEAD
ACTUATOR
MODULE
ASSY.
TIE
BAR
SUPPLY
TUBE
Figure 8
INSTALL HEMMED END (NOT SHARP END) OF SUPPORT TUBE WITH GASKET ONTO BOWL (SEE FIGURE 8).
A
CONNECT 1/2" SUPPLY TUBING TO SPRAYHEAD WITH 3/8" NPT TO 1/2" TUBE CONNECTOR AND PLACE SPRAYHEAD ONTO
SUPPORT TUBE. RUN THE TUBING DOWN THROUGH THE SUPPORT TUBE AND CONNECT TO VALVE TUBE CONNECTOR.
B
INSERT THE 1-1/2" VENT PIPE (SUPPLIED BY INSTALLER) DOWN THROUGH THE SUPPORT TUBE AND THREAD INTO VENTED TRAP.
C
