Installation TDB3108, WF3208 Terreon
®
54" Circular
5Bradley Corporation • 215-1187 Rev. N; EN 06-915B 4/6/2007

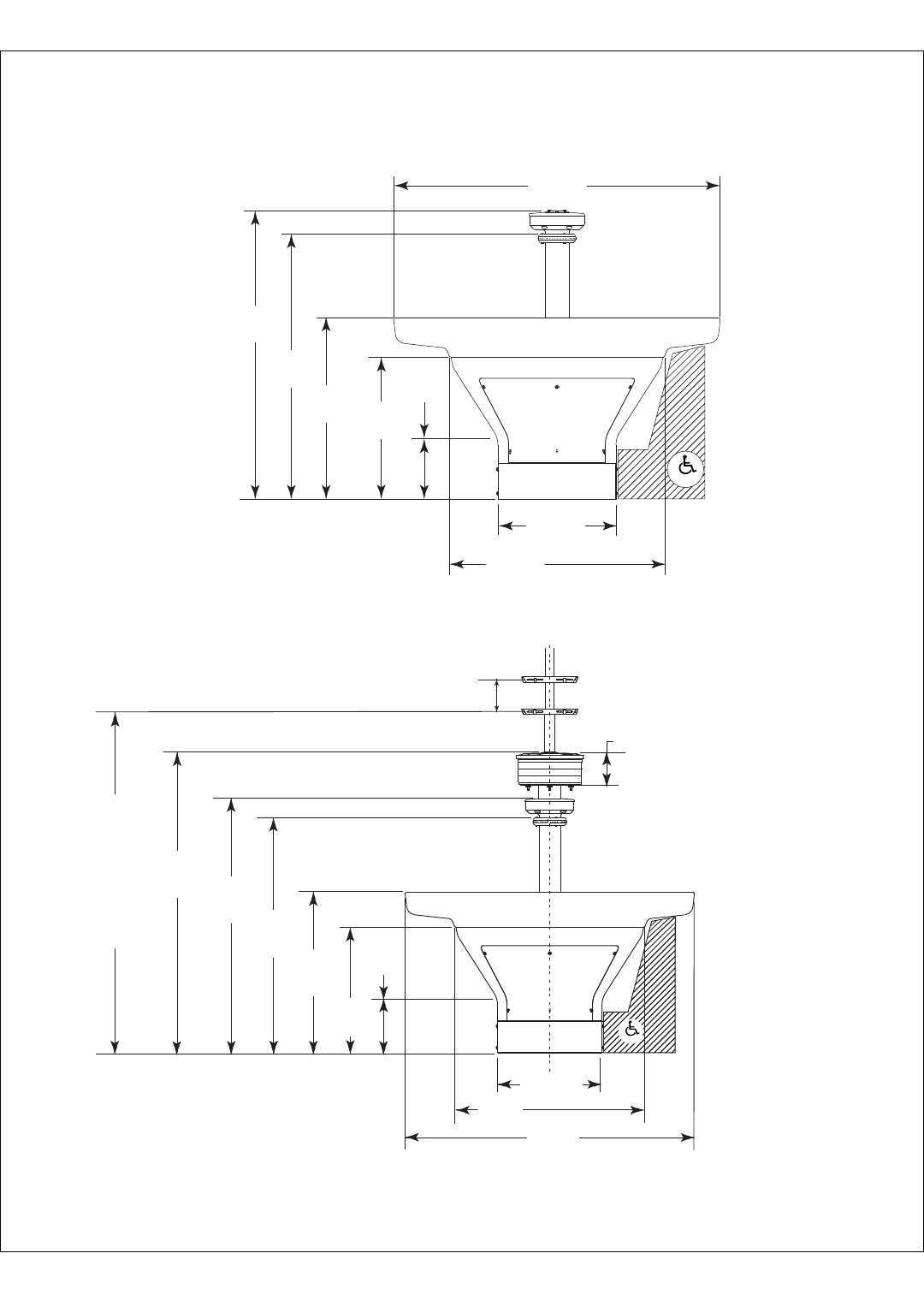

Circular Washfountain Dimensions (juvenile height)
59-1/8"
(1502)
WITH
SOAP
50-5/8"
(1286)
WITHOUT
SOAP
54"
(1372)
35-1/2"
(902)
19-1/2"
(495)
51-1/4"
(1303)
42-5/8"
(1033)
39-1/8"
(994)
30"
(762)
23-1/2"
(597)
10"
(254)
6" (152)
Adjust to towel dispenser
mounting holes
A
D
A
•
C
O
M
P
L
I
A
N
T
Optional equipment may not
comply with all ADA
dimensional guidelines
A
D
A
•
C
O
M
P
L
I
A
N
T
54"
(1372)
19-1/2"
(495)
35-1/2"
(902)
23-1/2"
(597)
10"
(254)
30"
(762)
39-1/8"
(994)
42-5/8"
(1083)
Model TDB3108
54" Circular - Juvenile Height
Model TDB3108
54" Circular - Juvenile Height
with optional accessories
Figure 1e
Figure 1f
Optional equipment may not comply with
all ADA or TAS dimensional guidelines
