TDB3108, WF3208 Terreon
®
circular de 1372 mm (54") Instalación
62 6/4/2007 Bradley Corporation • 215-1187 Rev. N; EN 06-915B

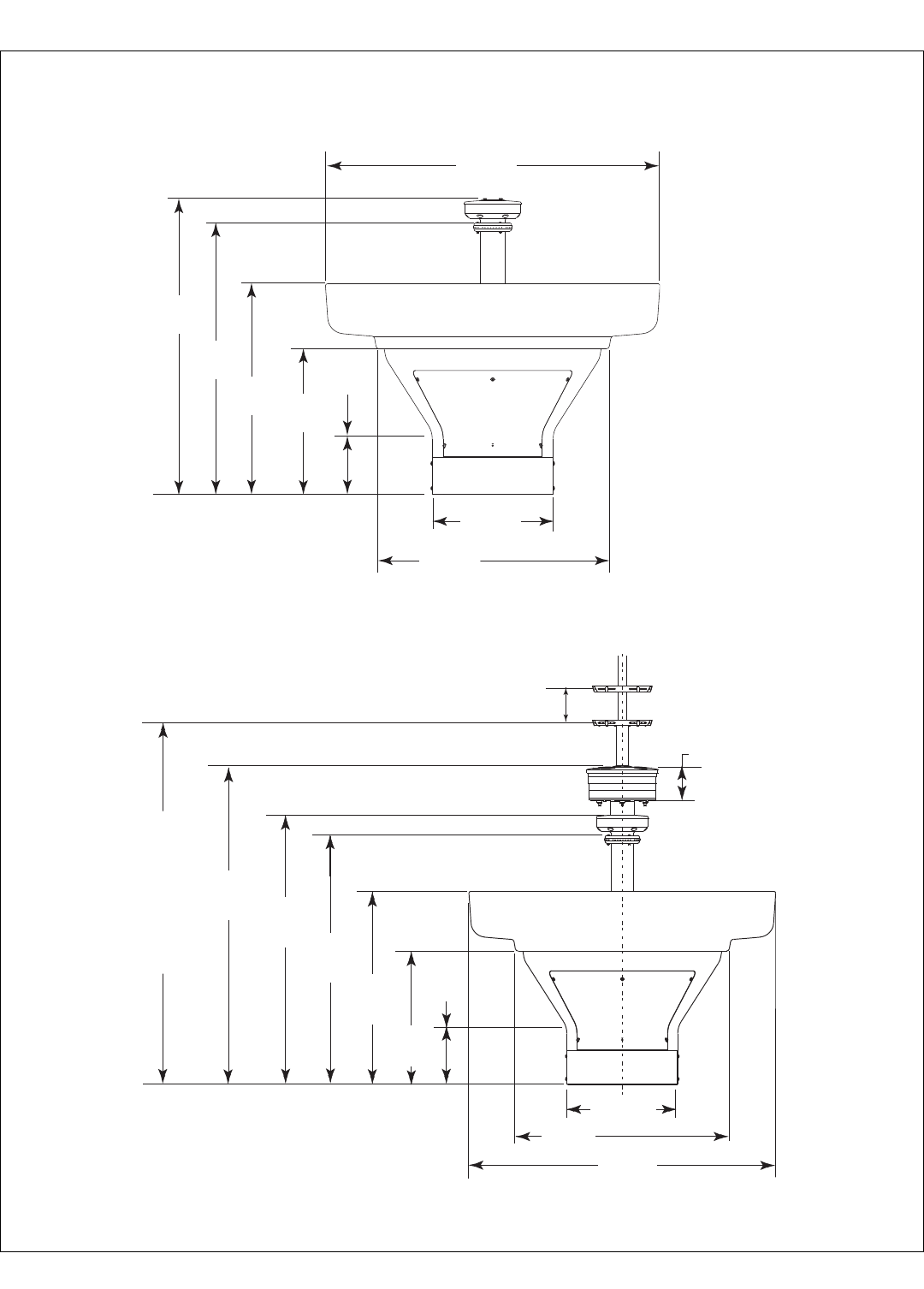

Dimensiones de la fuente de lavado circular
63-5/8"
(1616)
WITH
SOAP
55-1/8"
(1400)
WITHOUT
SOAP
54"
(1372)
37-1/2"
(953)
19-1/2"
(495)
55-3/4"
(1416)
47-1/4"
(1200)
43-3/4"
(1111)
34"
(864)
23-1/2"
(597)
10"
(254)
6" (152)
Adjust to towel dispenser
mounting holes
54"
(1372)
19-1/2"
(495)
37-1/2"
(953)
23-1/2"
(597)
10"
(254)
34"
(864)
43-3/4"
(1111)
47-1/4"
(1200)
El modelo WF3208 no cumple con las
normas de ADA.
Modelo WF3208 - Circular de
1372 mm (54")
Modelo WF3208 - Circular
de 1372 mm (54") con
accesorios opcionales
Figura 1g
Figura 1h
1372 mm
(54")
495 mm
(19-1/2")
953 mm
(37-1/2")
597 mm
(23-1/2")
254 mm
(10")
1616 mm
(63-5/8")
CON
JABÓN
1400 mm
(55-1/8")
SIN
JABÓN
864 mm
(34")
1111 mm
(43-3/4")
1200 mm
(47-1/4")
864 mm
(34")
1111 mm
(43-3/4")
1200 mm
(47-1/4")
1416 mm
(55-3/4")
597 mm
(23-1/2")
254 mm
(10")
495 mm
(19-1/2")
953 mm
(37-1/2")
1372 mm
(54")
AJUSTE PARA LOS ORIFICIOS DE MONTAJE
DEL DISPENSADOR DE TOALLAS
152 mm (6")
