TDB3108, WF3208 Terreon
®
54" Circular Installation
12 4/6/2007 Bradley Corporation • 215-1187 Rev. N; EN 06-915B

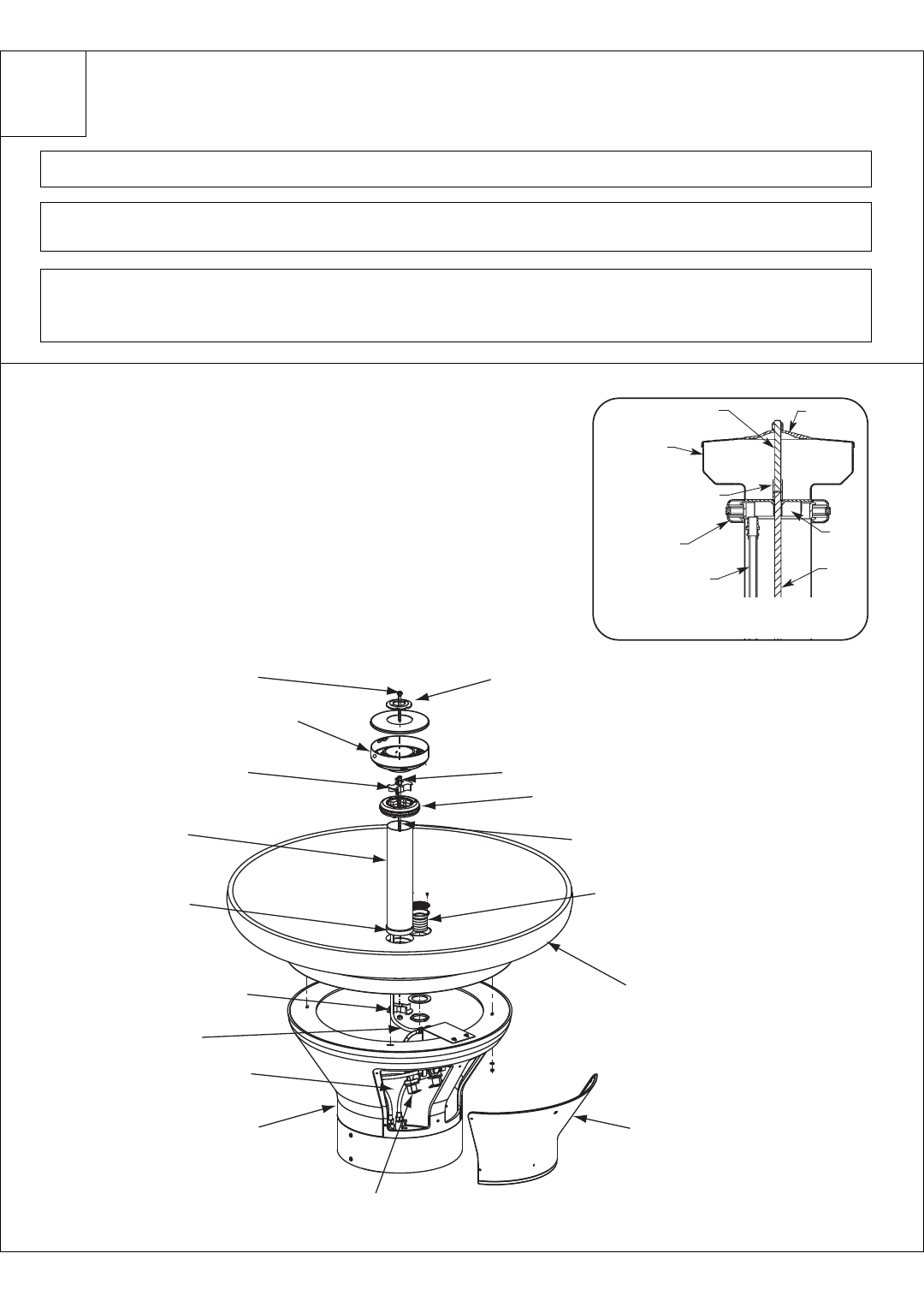

Adaptive infrared assembly for A drain and O drain units
without Tie Pipe option
4a
SUPPORT TUBE
GASKET
125-011
SUPPORT TUBE
(STD) S57-005
(JUV) S57-006
TIE ROD PRE-PACK
S45-1336
1/2" SUPPLY TUBE
PRE-PACK
S45-1466
PRE-PACK
S45-055
TIE BAR
PEDESTAL ASSY.
S17-242
COVER
107-099 (A)
107-179 (O)
I.R. MODULE ASSY.
S50-344
SPRAYHEAD
S05-054
TIE ROD
176-008A
DRAIN
S45-273
VALVE ASSY.
S50-369
ACCESS PANEL
186-1456
TERREON® DEEP BOWL
(ADA bowl shown, classic
bowl is optional)
Part No. varies with color of bowl.
Contact your local Bradley Rep.
for assistance
NUT
A/O
(A shown)
COVER
TIE ROD
PRE-PACK
TIE
ROD
COUPLING
NUT
SECTION VIEW OF
A/O UNIT ASSEMBLY
SPRAYHEAD
ACTUATOR
MODULE
ASSY.
TIE
BAR
SUPPLY TUBE
Figure 6
INSTALL HEMMED END (NOT SHARP END) OF SUPPORT TUBE WITH GASKET ONTO BOWL (SEE FIGURE 6).
A
CONNECT 1/2" SUPPLY TUBING TO SPRAYHEAD WITH 3/8" NPT TO 1/2" TUBE CONNECTOR AND PLACE SPRAYHEAD ONTO
SUPPORT TUBE. RUN THE TUBING DOWN THROUGH THE SUPPORT TUBE AND CONNECT TO VALVE TUBE CONNECTOR.
B
PLACE THE UPPER TIE BAR (NOTCHED AT BOTH CORNERS OF EACH END) ON TOP OF SPRAYHEAD. CONNECT THE LONGER TIE
ROD TO THE 4-1/4" TIE ROD USING THE COUPLING NUT WITH HEX HEAD SET SCREWS. RUN THE TIE ROD ASSEMBLY DOWN
THROUGH UPPER TIE BAR (SEE FIGURE 6 INSET) AND SECURE FROM UNDERNEATH THE BOWL USING LOWER TIE BAR (NO
NOTCHES) AND HEX NUT WITH SOCKET HEAD SET SCREW.
C
