E6581090
A-8
1
Sizes of connectable wires
Solid wire: 0.3 to 1.5 (mm
2
)
Stranded wire: 0.3 to 1.5 (mm
2
)
(AWG: 22 to 16)
Sheath strip length: 6 mm
Driver bit size: 3.5 × 0.6 mm
Sizes of connectable wires
Solid wire: 0.3 to 1.5 (mm
2
)
Stranded wire: 0.3 to 1.25 (mm
2
)
(AWG: 22 to 16)
Sheath strip length: 5 mm
Driver bit size: 2.5 × 0.4 mm

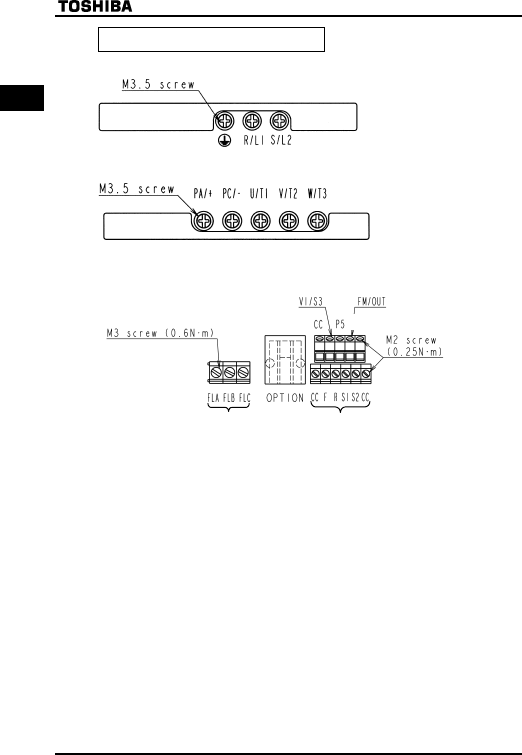

[Main circuit input terminals]
[Main circuit output terminals]
2) Control circuit terminal block
The same type of terminal board is provided for all models.
For details of each terminal, see 2.3.2.
VFNC1S-2015PL～2022PL
