Section 7
- NOTE -
The front of the machine will have to be raised
slightly to remove the blade bolt from the cutter
spindle.
To install the new cutter blade, put the flat washer 4.
onto the blade bolt and slide the bolt into the hole in
the cutter blade.

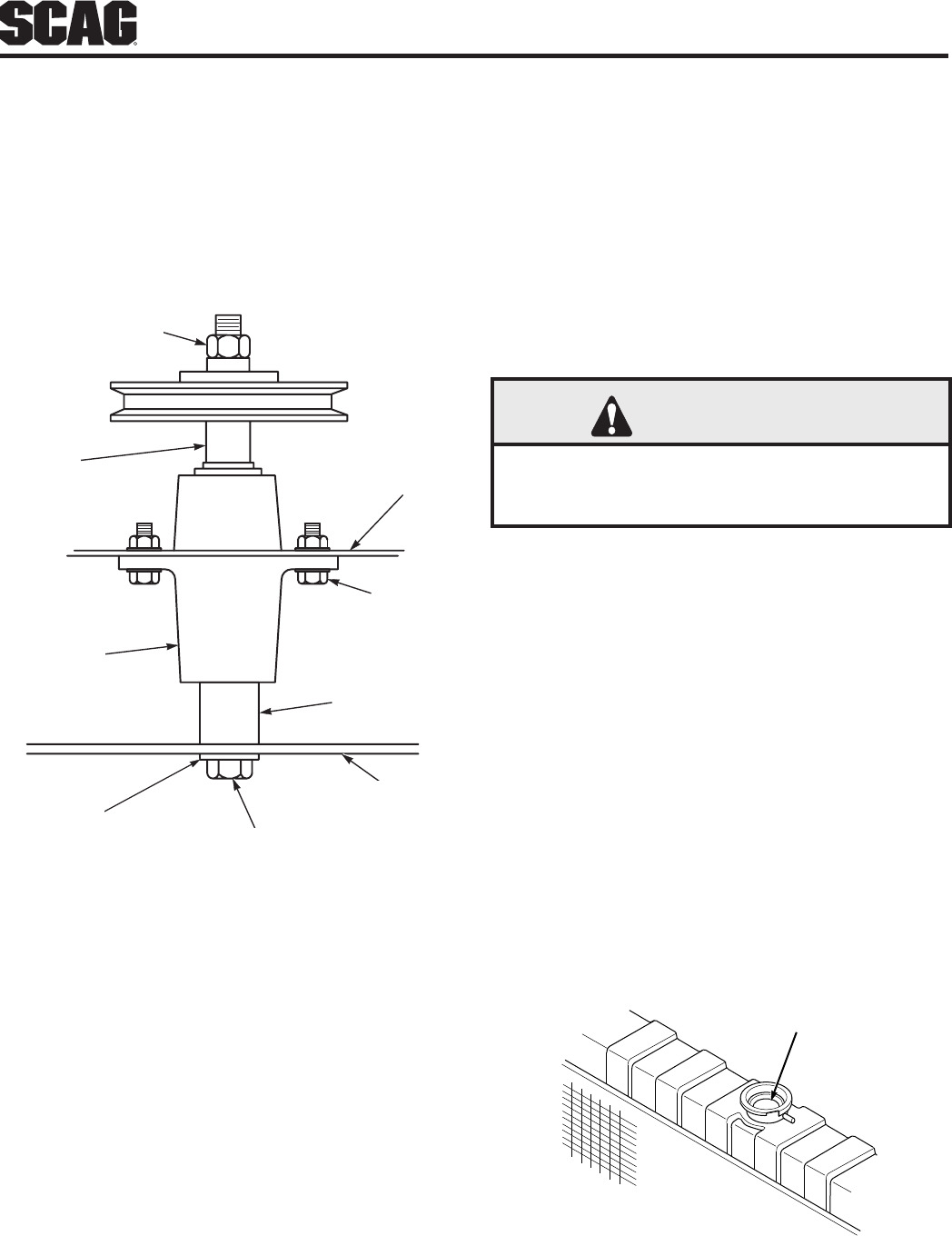

WASHER
HEX HEAD BOLT
CUTTER
BLADE
SPINDLE
ASSEMBLY
CUTTER BLADE
SPACER
HEX HEAD
BOLT / NUT
CUTTER
DECK
SPINDLE
SHAFT
HEX NUT-TORQUE
TO 75 LB-FT
Blade ReplacementFigure 7-7.
- NOTE -
Be sure that the blade is installed with the lift wing
toward the top.
Install the spacer onto the blade bolt and insert the 5.
bolt into the cutter spindle shaft.
Install the hex nut to the blade bolt at the top of the 6.
cutter spindle. Secure the blades from rotating and
torque to 75 lb-ft. See Figure 7-7.
TIRES7.10
Check the tire pressures after every 8 hours of operation
or daily.
Caster Wheels Flat Free
Drive Wheels 12 PSI
COOLING SYSTEM7.11
(LIQUID-COOLED MACHINES ONLY)
WARNING
To avoid burns, always allow the engine to cool
before removing the radiator cap.
A. CHECKING COOLANT LEVEL
The coolant level should be checked before each day of
operation.
Remove the radiator cap by turning it slowly 1.
counterclockwise to the first stop and allow any
pressure to be released. Push down on the cap and
turn counterclockwise to remove.
Visually check the coolant level. The coolant level 2.
should be up to the bottom of the filler neck as
shown in Figure 7-8. Add a mixture of coolant and
soft water as needed.
- NOTE -
Refer to the coolant manufacturer's instructions for
the proper coolant mixture ratio.
Fill to Bottom of
Filler Neck
030467-13
Coolant LevelFigure 7-8.
