Section 8

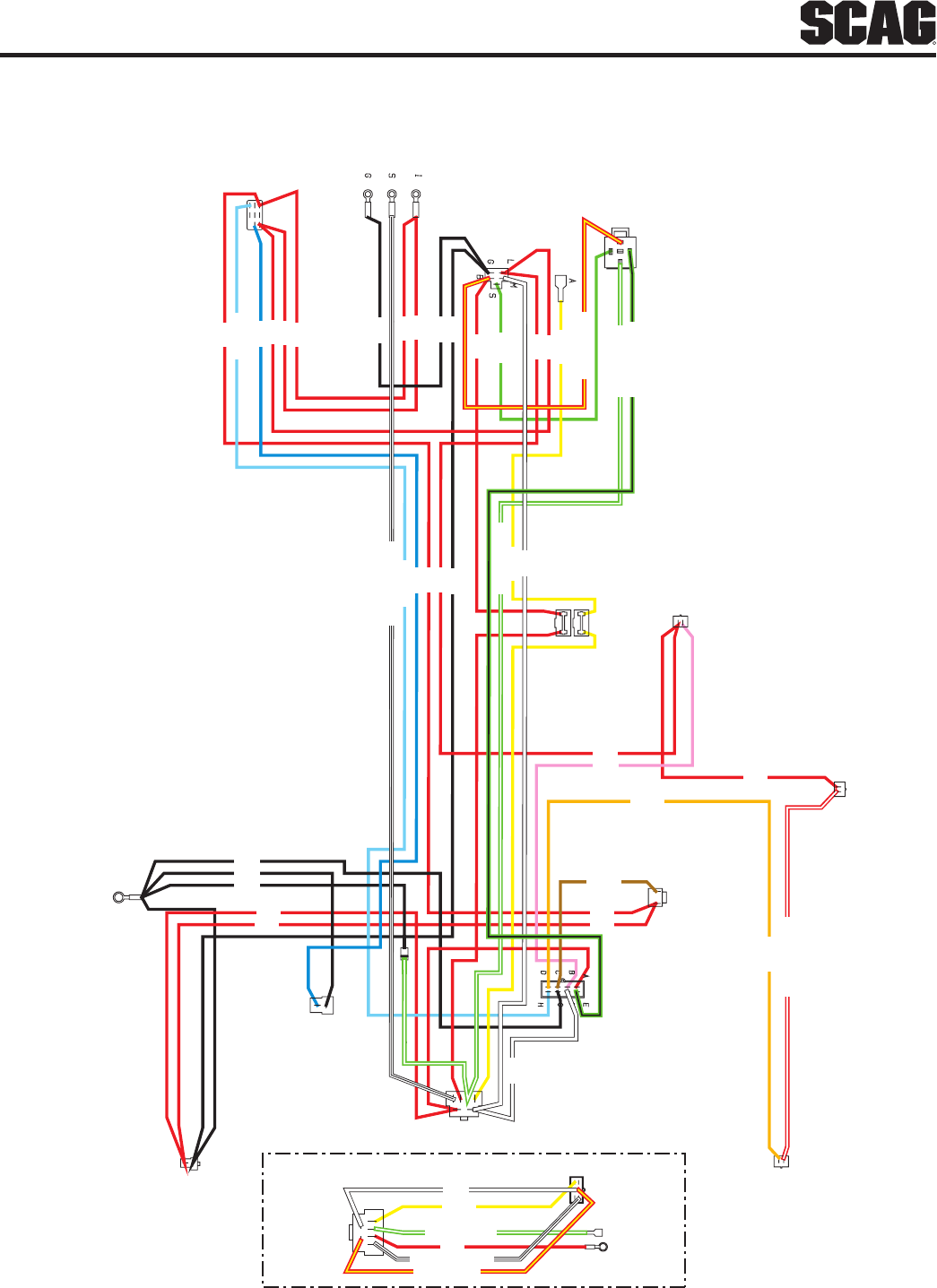

ELECTRICAL SCHEMATIC - 26HP KAWASAKI LIQUID-COOLED
ADAPTER HARNESS
ORANGE
BROWN
PINK
LIGHT BLUE
BLUE
GRN W/WHT STRIPE
YELLOW
WHITE
BLACK
RED
RED W/WHITE STRIPE
RED
RED
RED
RED
RED
RED
LIGHT BLUE
BLUE
RED
RED
BLACK
RED
RED
RED
RED
RED
RED
ORANGE
YELLOW
BLACK
BLACK
RED
RED
BLACK
BLACK
BLACK
WHITE
RED W/YEL STRIPE
GRN W/BLK STRIPE
GREEN
GRN W/WHT STRIPE
GRN W/WHT STRIPE
YELLOW
WHITE
RED
RED W/YEL STRIPE
WHITE W/BLACK STRIPE
WHITE W/BLACK STRIPE
RELAY
MODULE
PLUG
PTO
SWITCH
KEY
SWITCH
NEG
POS
HOURMETER
GROUND
R.H. NEUTRAL
SWITCH
20 AMP FUSES
BRAKE
INTERLOCK
SWITCH
SEAT
SWITCH
L.H. NEUTRAL
SWITCH
TO
ENGINE
ADAPTER
HARNESS
MAIN HARNESS
CLUTCH
WATER TEMP
GAUGE
SOLENOID "B+"
