Scag Power Equipment STWC61V-26KA-LC Lawn Mower User Manual



31
R
Section 7
- IMPORTANT -
The hydraulic oil should be changed if you notice
the presence of water or a rancid odor to the
hydraulic oil.
Park the mower on a level surface and stop the 1.
engine.
Place a suitable container under the hydraulic oil 2.
filter. Tilt the seat forward. Remove the fill cap from
the reservoir and the drain plug from the bottom
of the drain tee fitting on the front side of the filter
base. See Figure 7-3. Allow the fluid to drain into the
container and properly discard it.

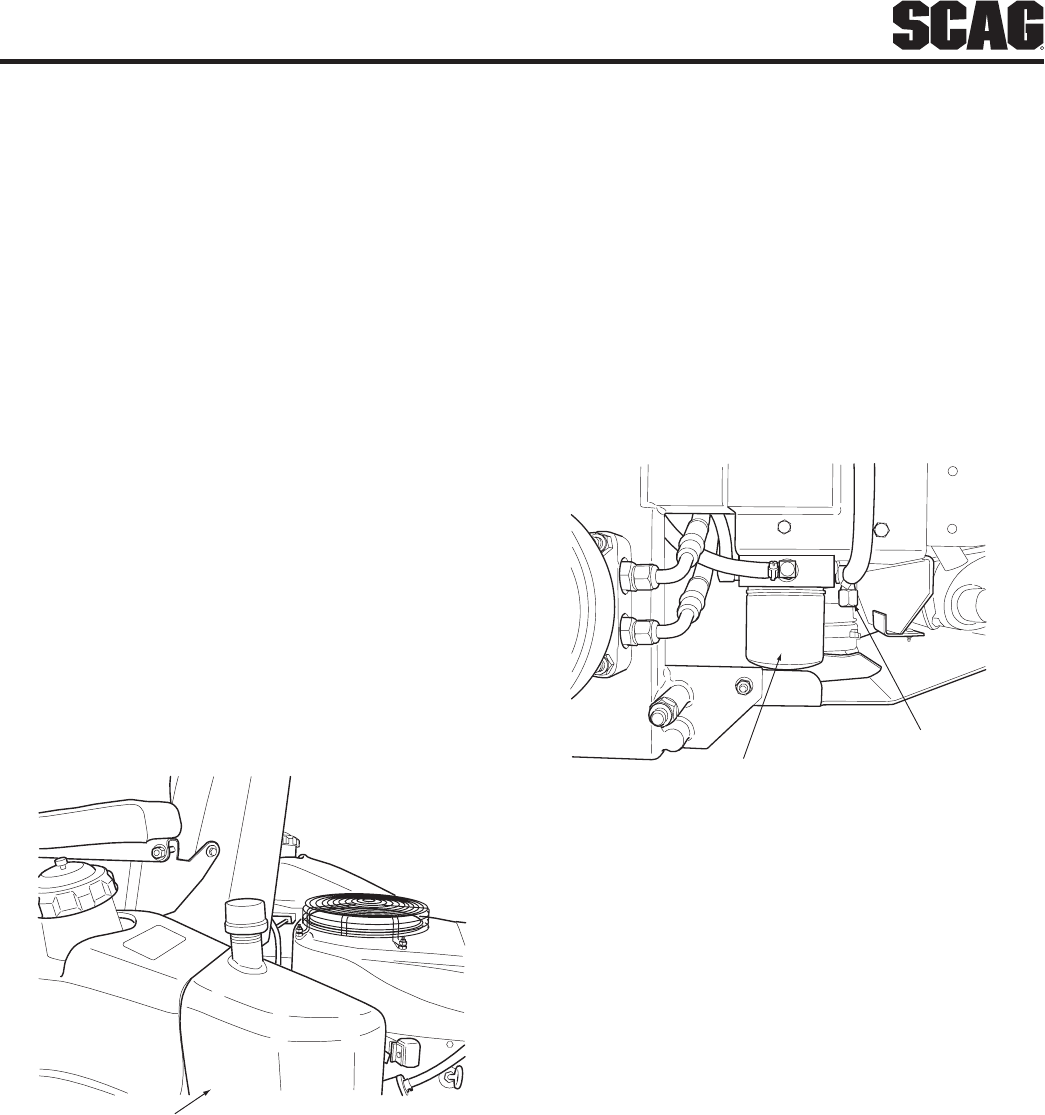

HYDRAULIC OIL FILTER
HYDRAULIC OIL
DRAIN PLUG
STC2001HODP
Hydraulic Oil Filter and Drain PlugFigure 7-3.
Re-install the drain plug into the tee fitting and be 3.
sure it is tight.
- NOTE -
Before refilling the hydraulic oil reservoir the
hydraulic oil filter should be changed as outlined
in Procedure C "Changing Hydraulic Oil Filter
Element" on page 32.
Fill the reservoir to 3-1/4" inches from the top of the 4.
filler neck with 20W50 motor oil.
Replace the reservoir fill cap. Start the engine and 5.
drive forward and backward for two minutes. Check
the oil level in the reservoir. If necessary, add oil to
the reservoir.
HYDRAULIC SYSTEM7.3
A. CHECKING HYDRAULIC OIL LEVEL
The hydraulic oil level should be checked after the first 10
hours of operation. Thereafter, check the oil after every
200 hours of machine operation or monthly, whichever
occurs first.
- IMPORTANT -
If the oil level is consistently low, check for leaks
and correct immediately.
Wipe dirt and contaminants from around the 1.
reservoir cap. Remove the cap from the hydraulic oil
reservoir.
Visually check the level of hydraulic oil. Hydraulic 2.
oil must be at least 3" inches from top of the filler
neck. If the level cannot be determined visually,
use a clean tape measure to check the level. If the
fluid is low, add 20W50 motor oil. DO NOT overfill;
(overfilling the oil reservoir may cause oil seepage
around the cap area).
Clean the fill cap and install it onto the reservoir.3.
HYDRAULIC OIL
RESERVOIR
STC2002HOR
Hydraulic Oil ReservoirFigure 7-2.
B. CHANGING HYDRAULIC OIL
The hydraulic oil should be changed after every 500 hours
or annually, whichever occurs first. The oil should also
be changed if the color of the fluid has become black or
milky. A black color and/or a rancid odor usually indicates
possible overheating of the oil, and a milky color usually
indicates water in the hydraulic oil.
