Section 4
Fuse Holders (Figure 4-1). 6. Two 20-amp fuses
protect the mower’s electrical system. To replace
fuses, pull fuse out of the socket and install a new
fuse.
Left Steering Control (Figure 4-1). 7. Used to control
the mower's left wheel when traveling forward or
reverse.
Right Steering Control (Figure 4-1).8. Used to
control the mower's right wheel when traveling
forward or reverse.
Parking Brake Control (Figure 4-1). 9. Used to
engage and disengage the parking brakes. Pull the
lever back to engage the parking brakes. Push the
lever forward to disengage the parking brakes.
Fuel Switching Valve (Figure 4-1). 10. Located on the
left side of the machine. Used to shut off fuel supply
to the engine and change fuel supply between the
fuel tanks. Rotate the valve counter clockwise to
supply fuel from the tank on the left side only. Rotate
the valve clockwise to supply fuel from the tank on
the right side only.
Dump Valve Control Levers (Figure 4-2). 11. Located
on the hydraulic pumps, used to “free-wheel” the
mower. Rotating the levers clockwise until they stop
(closed) allows the unit to move under hydraulic
power. The levers must be in this position and
torqued to 10 lb-ft during operation of the mower.
Rotating the levers counter-clockwise (open) allows
the mower to be moved by hand (free-wheeling).
DUMP VA LVE
CONTROL LEVERS
STC 2001 DV C

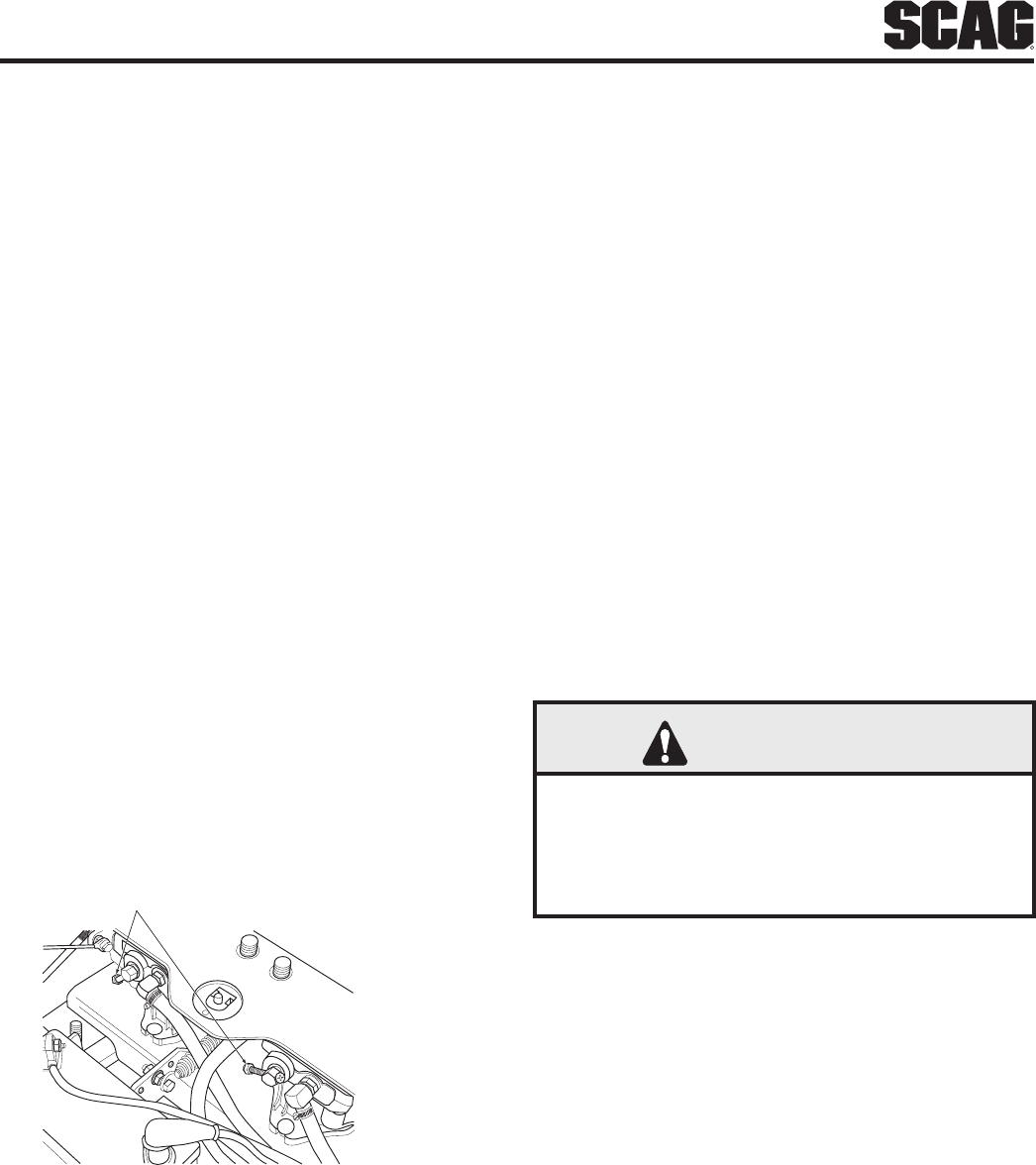

Dump Valve ControlFigure 4-2.
Deck Lift Foot Lever (Figure 4-1). 12. Used to raise
and lower the cutter deck. Push full forward to lock in
the transport position.
Cutting Height Adjustment (Figure 4-1).13. Used to
set the cutter deck at the desired cutting height.
Deck Release Lever (Figure 4-1). 14. Used to lock the
cutter deck in the transport position. Push the foot
pedal forward and pull back on the release lever to
release the cutter deck for normal mowing.
Seat Belt (Figure 4-1). 15. Used to secure the operator.
Seat belt must be worn at all times when the ROPS
is in the upright and locked position.
Seat Hold Down Release Latch (Figure 4-1).16.
Located behind the seat. Used to secure the seat
in the operator's position. Release the latch to gain
access under the seat.
SAFETY INTERLOCK SYSTEM4.2
The mower is equipped with a safety interlock system that
prevents the engine from starting unless the deck drive is
disengaged, the parking brake is engaged, the steering
control levers are in the neutral position and the operator
is in the seat. The interlock system shuts off the engine
if the operator leaves the seat with the steering control
levers not in the neutral position and/or the cutter blades
engaged and the parking brake not engaged.
WARNING
Never operate the mower with the interlock
system disconnected or malfunctioning. Do not
disengage or bypass any switch; injury to yourself
and others or property damage could result.
INITIAL RUN-IN PROCEDURES4.3
FIRST DAY OF USE OR APPROXIMATELY 20 HOURS
Check all belts for proper alignment and wear at 2, 4 1.
and 8 hours.
Change the engine oil and oil filter after the first 20 2.
hours of operation. (See Section 7.4.)
Check hydraulic oil level in reservoir. (See Section 3.
7.3.)
Check for loose hardware. Tighten as needed.4.
Check interlock system for proper operation. (See 5.
Section 4.2.)
Check tire pressure. Adjust pressure if necessary. 6.
(See Section 7.10.)
