2. Turn key to STOP position. Engine will stop and headlights will turn
off.
3. Remove key.
4. Lock the park brake.
Using Travel Controls on Automatic
Transmission
CAUTION: Children or bystanders may be injured by runover
and rotating blades. Before traveling forward or rearward:
CCaarreeffuullllyy cchheecckk tthhee aarreeaa aarroouunndd tthhee mmaacchhiinnee..
DDiisseennggaaggee tthhee mmoowweerr bbeeffoorree bbaacckkiinngg uupp..
IMPORTANT: Stop machine movement before shifting between
reverse and forward to prevent transmission damage.
Travel Forward

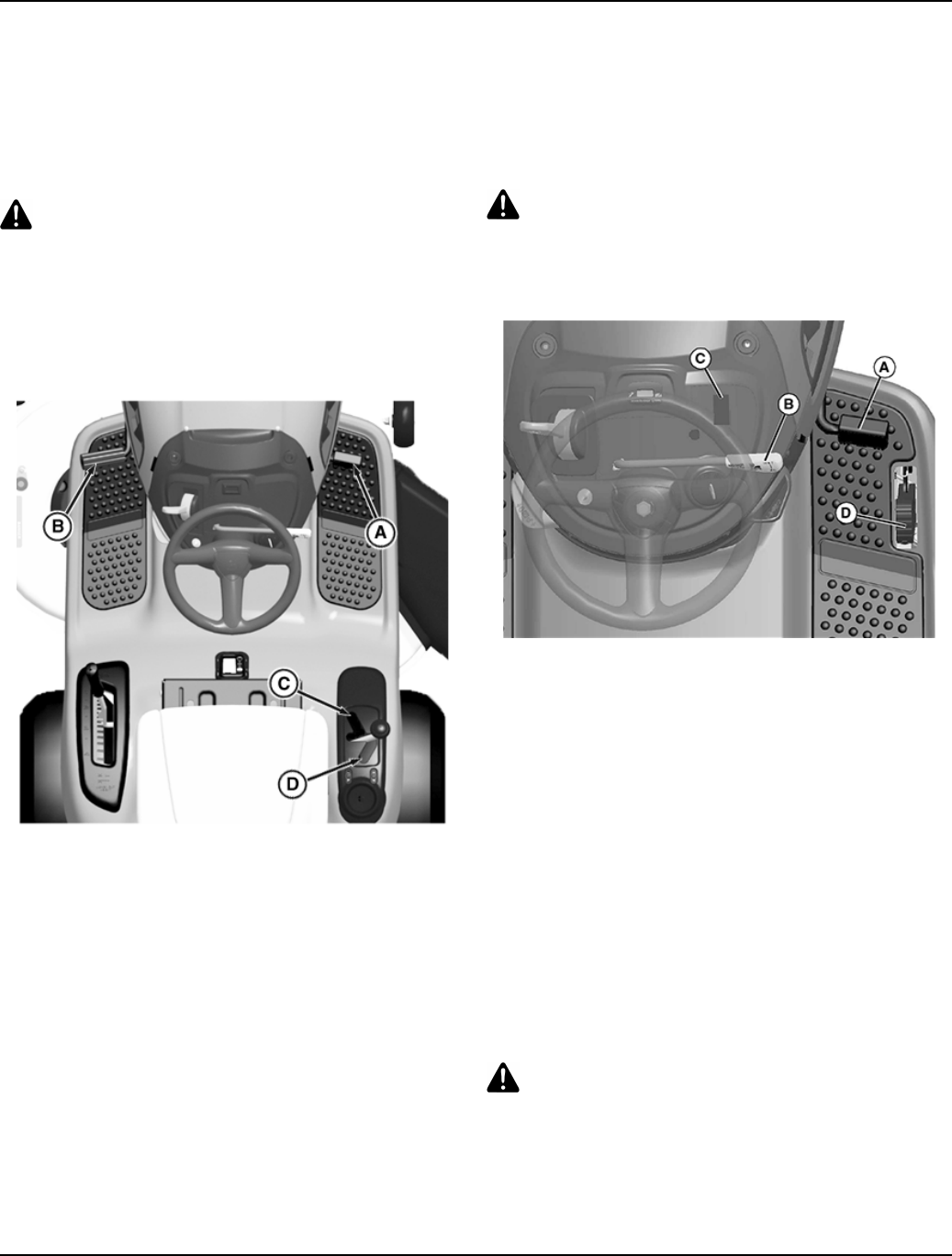

PY19050—UN—07AUG13
1. Completely remove foot from travel pedal (A).
2. Push brake pedal (B) all the way down to stop machine.
3. Move transmission shift lever into forward slot (C).
4. Release brake pedal.
5. Slowly apply foot to travel pedal.
Travel in Reverse
1. Completely remove foot from travel pedal (A).
NOTE: Any operating attachment and the engine will stop as the
transmission shift lever is moved to rear slot (D) (reverse) with
attachment engaged.
2. It may be required to push brake pedal to stop machine when on a
slope.
3. Move transmission shift lever to rear slot (D).
4. Look behind the machine to be sure there are no bystanders nearby.
5. Release brake pedal.
6. Slowly apply foot to travel pedal.
Emergency Stopping
Push brake pedal all the way down to stop machine.
Using Travel Controls on Hydrostatic
Transmission
CAUTION: Children or bystanders may be injured by runover
and rotating blades. Before traveling forward or rearward:
CCaarreeffuullllyy cchheecckk tthhee aarreeaa aarroouunndd tthhee mmaacchhiinnee..
DDiisseennggaaggee tthhee mmoowweerr bbeeffoorree bbaacckkiinngg uupp..
Travel Forward
GXAL41995—UN—04MAR13
Push down the forward travel pedal (A).
Travel in Reverse
NOTE: Any operating attachment and the engine will stop as the reverse
motion pedal is pressed with attachment engaged.
1. Disengage attachment:
On models with mechanical attachment engagement lever (B),
pull lever back to the off position.
On models with electric attachment engagement switch, push
switch in location (C) (not shown above) down to the off position.
2. Look behind the machine to be sure there are no bystanders nearby.
3. Touch the reverse travel pedal (D) with front of foot and slide foot
over pedal from front to rear.
Emergency Stopping
Push brake pedal all the way down to stop machine.
Using The Reverse Implement Option (RIO)
CAUTION: Children or bystanders may be injured by runover
and rotating blades. Before traveling forward or rearward:
CCaarreeffuullllyy cchheecckk tthhee aarreeaa aarroouunndd tthhee mmaacchhiinnee..
DDiisseennggaaggee tthhee mmoowweerr bbeeffoorree bbaacckkiinngg uupp..
NOTE: Backing up while the mower is engaged is strongly discouraged.
The Reverse Implement Option should be used only when
operating another attachment or when the operator deems it
necessary to reposition the machine with the mower engaged.
Operating
28
