Section 1: Assembly & Set-up
3/18/15
SBL2566, SBL2574, & SBL2584 with S/N 891531+ Snow Blowers 370-478M
Table of Contents

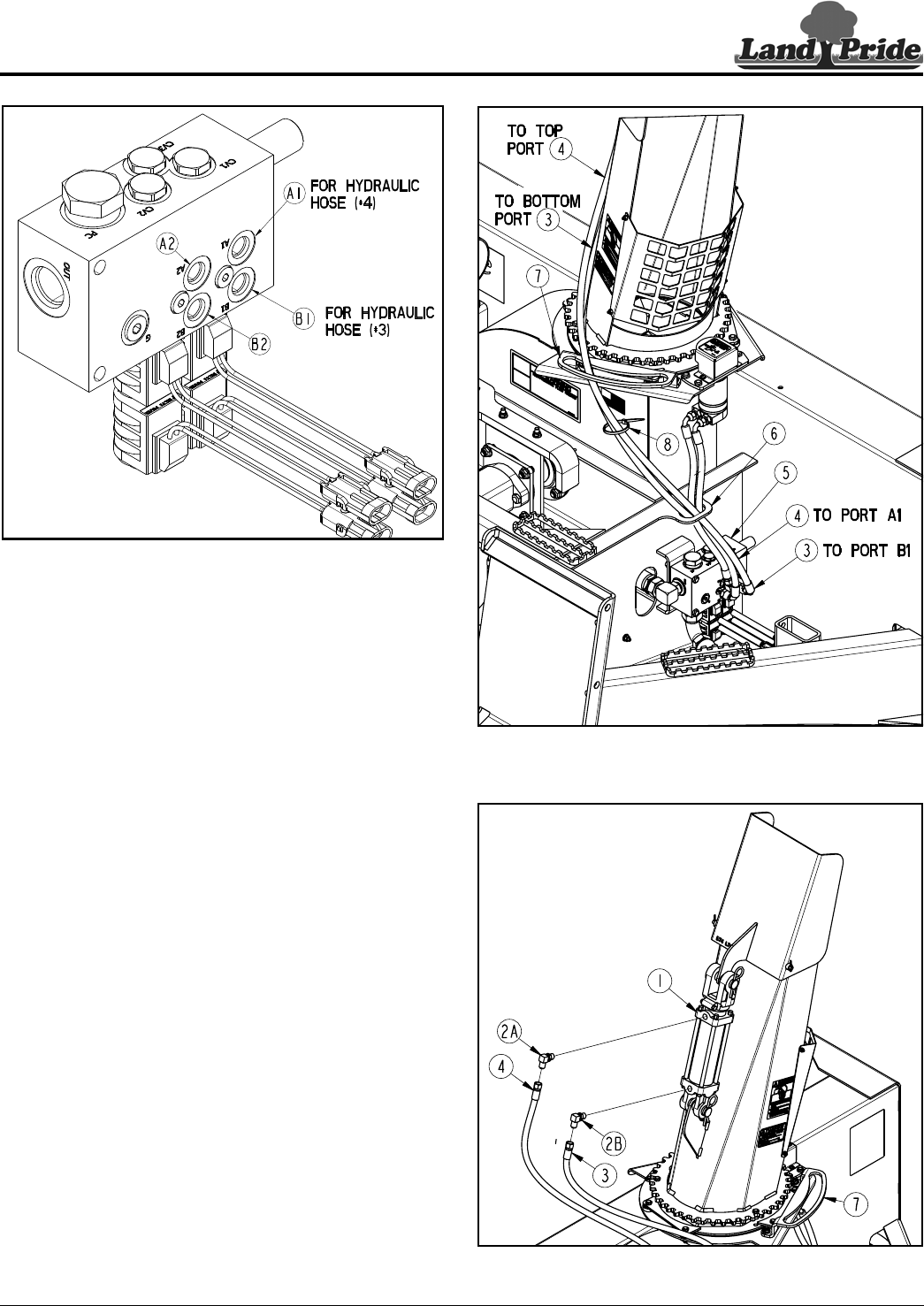

Priority Valve Ports
Figure 1-7
Spout Deflector, Hydraulic Cylinder
Refer to Figure 1-7 & Figure 1-8:
1. Route hydraulic hoses (#3 & #4) through hose
guides (#6 & #7).
2. Tie hoses (#3 & #4) together below hose guide (#7)
with cable tie (#8) in the locations shown.
Refer to Figure 1-9:
3. Screw o-ring end of 9/16" elbows (#2A & #2B) into
cylinder ports on hydraulic cylinder (#1). Do not
tighten elbows at this time.
4. Screw 1/4" x 45" short hydraulic hose (#3) to
elbow (#2B) until tight.
5. Screw 1/4" x 55" long hydraulic hose (#4) to
elbow (#2A) until tight.
6. Tighten elbows (#2A & #2B) to hydraulic
cylinder (#1) until tight.
37229
Hydraulic Hose Hook-up (Spout Deflector to Solenoid)
Figure 1-8
Hydraulic Cylinder Assembly For Spout Deflector
Figure 1-9
35603
35602
