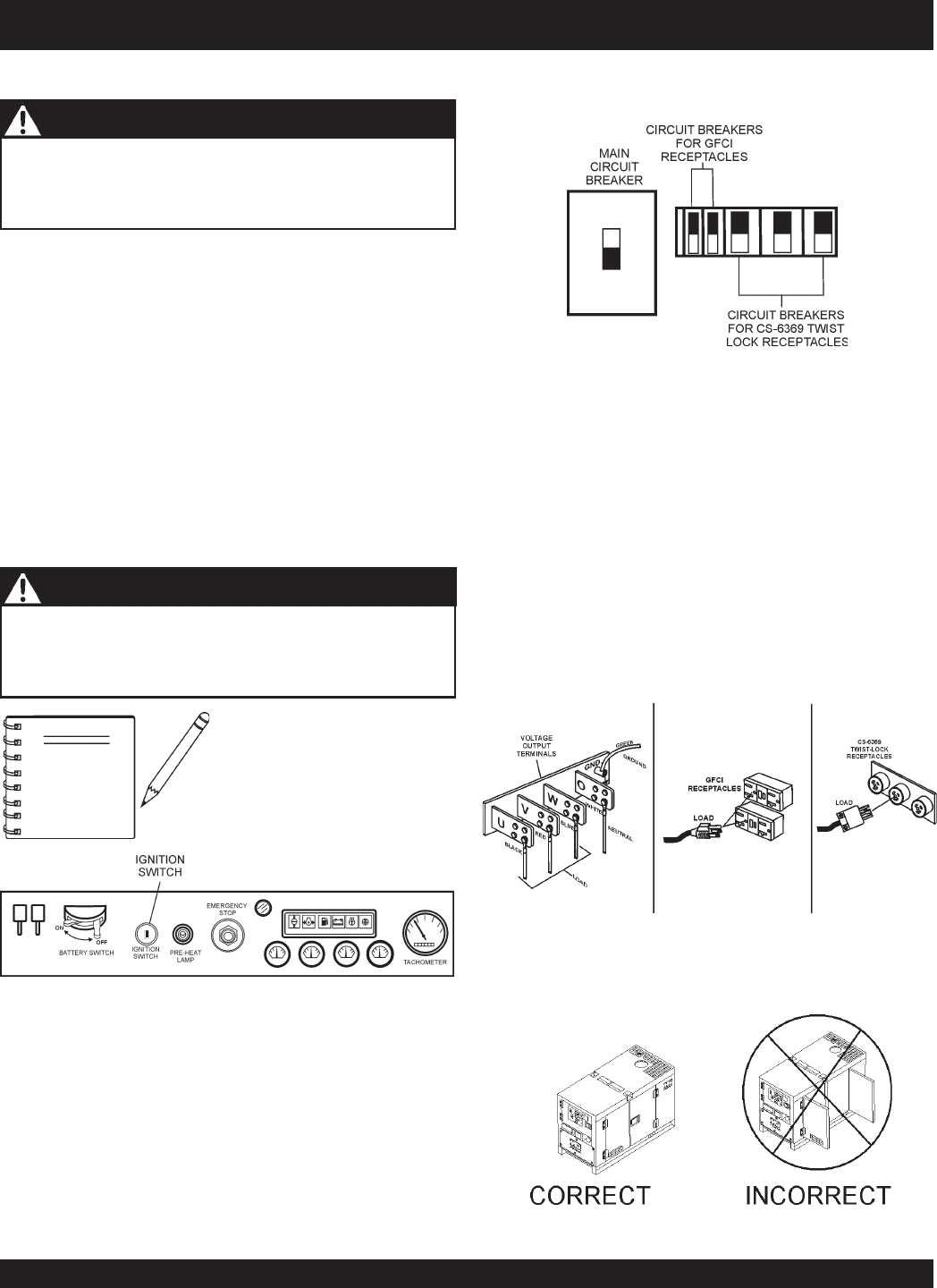

DCA-800SSK (STD) — OPERATION AND PARTS MANUAL — REV. #4 (06/03/10) — PAGE 45
DCA-800SSK — GEN. START-UP PROCEDURE (MANUAL)
If applicable perform the following:
■
Apply commercial power to the internal battery charger
receptacle (to ensure good starting) via commercial power.
An external power cord will be required. This capability is an
option
.
■
Apply commercial power to the jacket water heater
receptacle (not necessary for warm climates) via commercial
power. An external power cord will be required. This capability
is an
option
.
Figure 43. Load Connections
Generator and Control Panel
4. Close all engine enclosure doors (Figure 44).
Figure 44. Engine Enclosure Doors
Steps 1 thru 19 are referenced
for Engine Operating Panel up
to S/N 3699247. See Figure 41
below. This panel has an
igni-
tion
switch
.
NOTE
Figure 41. Engine Operating Panel
Up To S/N 3699247
1. Place the
main, G.F.C.I.
and
aux.
circuit
breakers (Figure 42)
in the “OFF” position prior to starting the engine.
2. Connect the load to the
UVWO
terminals or
auxiliary
receptacles
as shown in Figure 43. These load
connection points can be found on the output terminal
panel. To gain access to the UVWO terminals or other
power receptacles, unlock the access cover and lift the
door.
3. The UVWO terminals are protected by a plastic cover,
remove this cover to gain access to the terminals.
Tighten terminal nuts securely to prevent load wires from
slipping out.
Figure 42. Main, Aux. and GFCI
Circuit Breakers (OFF)
The engine's exhaust contains harmful emissions.
ALWAYS have adequate ventilation when operating
.
Direct exhaust away from nearby personnel.
Before Starting
NEVER!
manually start the engine with the
main
,
GFCI
or
auxiliary
circuit breakers in the ON (closed) position.
CAUTION - LETHAL EXHAUST HAZARD
WARNING - STARTING THE GENERATOR
