DCA-800SSK (STD) — OPERATION AND PARTS MANUAL — REV. #4 (06/03/10) — PAGE 33
DCA-800SSK — OUTPUT TERMINAL PANEL OVERVIEW
120 VAC GFCI Receptacles
There are two 120 VAC, 20 amp GFCI (Duplex Nema 5-20R)
recepacles provided on the output terminal panel. These
receptacles can be accessed in any
voltage change-over
board
position. Each receptacle is protected by a 20 amp
circuit breaker. These breakers are located directly above
the GFCI receptacles. Remember the load output (current)
of both GFCI receptacles is dependent on the load
requirements of the UVWO terminals.
Pressing the
reset
button resets the GFCI receptacle after
being tripped. Pressing the "
Test Button
" (See Figure 9) in
the center of the receptacle will check the GFCI function.
Both receptacles should be tested at least once a month.

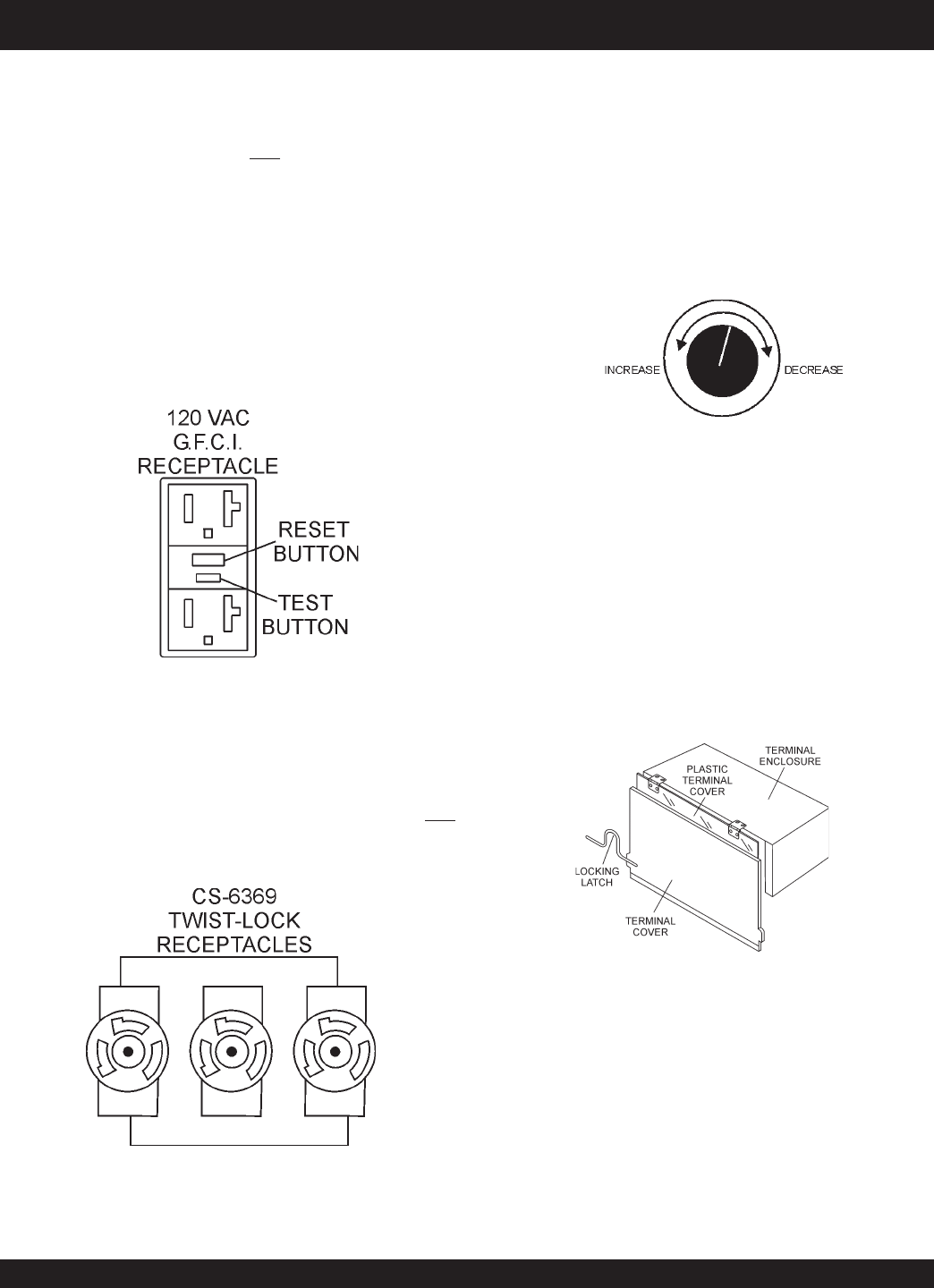

Figure 9. G.F.C.I. Receptacle
Each auxiliary receptacle is protected by a 50 amp circuit
breaker. These breakers are located directly above the GFCI
receptacles. Remember the load output (current) on all three
receptacles is dependent on the load requirements of the
UVWO terminals.
Turn the
voltage regulator control knob
(Figure 11) on the
control panel to obtain the desired voltage. Turning the knob
clockwise will
increase
the voltage, turning the knob counter-
clockwise will
decrease
the voltage.
Figure 10. 240/139 VAC Twist-Lock
Auxiliary Receptacles
Twist Lock Dual Voltage 240/139 VAC Receptacles
There are three 240/139 VAC, 50 amp auxiliary twist-lock
(CS-6369) receptacles (Figure 10) provided on the output
terminal panel. These receptacles can be accessed in any
voltage change-over board
position.
Removing the Plastic Face Plate (UVWO Terminals)
The UVWO terminal lugs are protected by a plastic face
plate cover (Figure 12). Un-lock the locking latch, and lift
the terminal cover to gain access to the plastic face plate.
Remove the screws securing the face plate to the terminal
enclosure, then lift the plastic hinged face plate.
After the load wires have been securely attached to the
UVWO terminals, reinstall the plastic face plate. Place the
terminal cover in the down position and secure the locking
latch.
Figure 11. Voltage Regulator Control Knob
Figure 12. Plastic Face Plate (UVWO Terminals)
