2.4 Installation – Sensor
Unscrew the nut on the side of the debubbler. Insert the sensor in the mouth of the measuring
chamber. Be sure the pin on the debubbler lines up with the hole in the sensor. Replace the nut.
Remove the protective cap from the sensor and screw the cable onto the receptacle. The plug and
receptacle are keyed for proper alignment.
The sensor is rated to IP65 when properly connected to the cable. To prevent possible water
damage to the connector contacts, be sure the cable receptacle and the connector on the back of
the sensor are dry when connecting or disconnecting the cable.

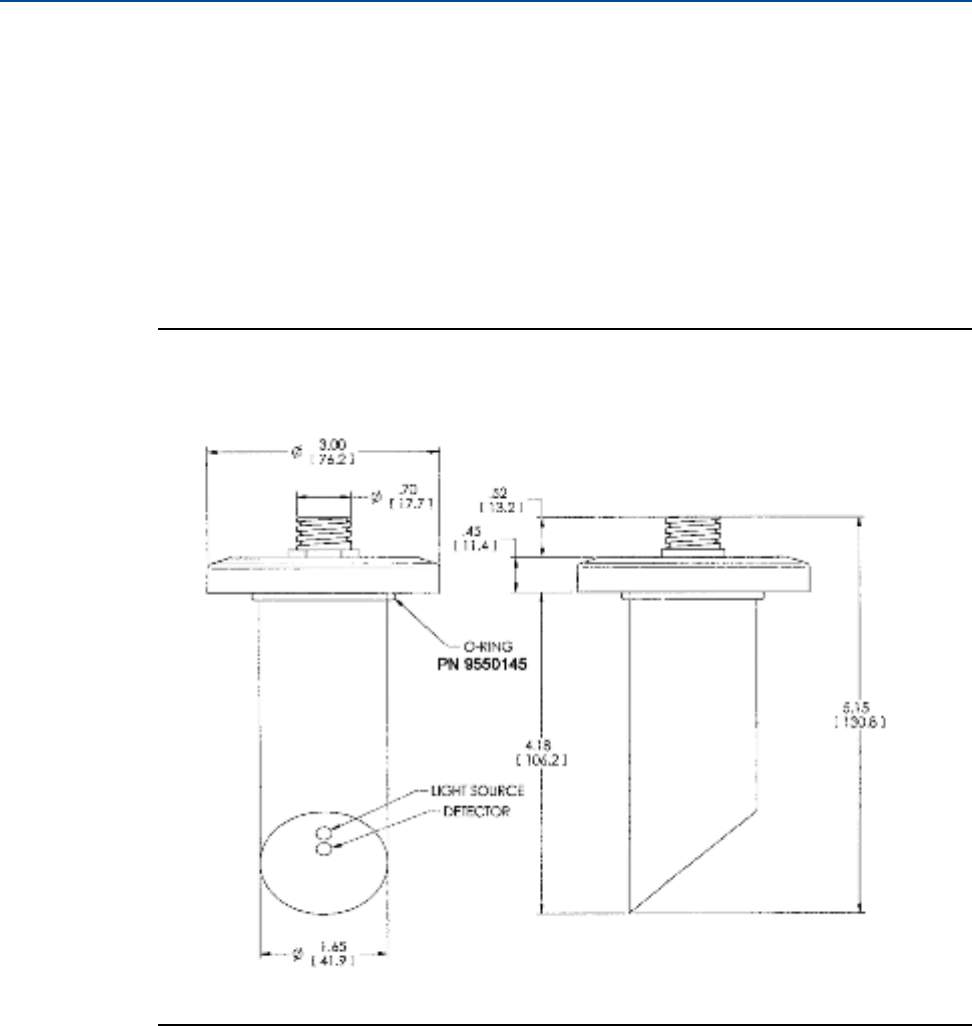

Fig. 2-4 Sensor
