7. Select the power supply entrance you want to use (Figure A, page 10)
and remove the short cabinet panel from the front of the hot tub to allow
you to feed the cable through to the control box. Install the cable with
connector through the large opening provided in the bottom of the
control box.

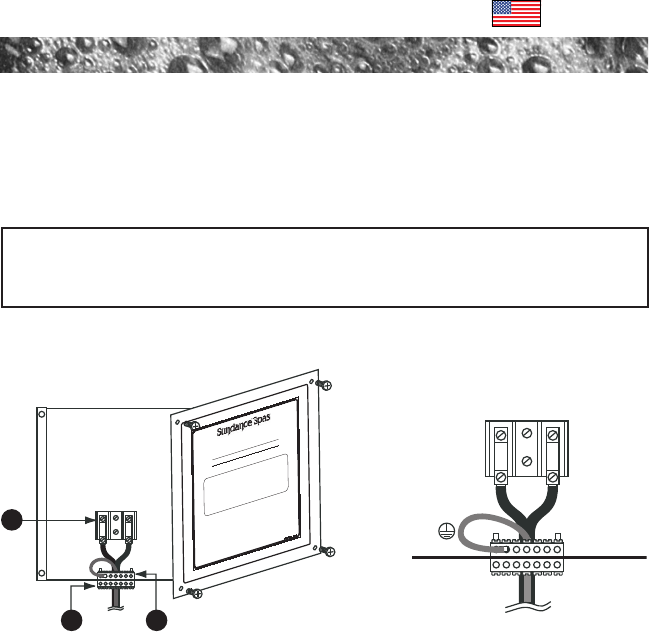

8. Connect wires, color to color, on terminal blocks TB1 and TB3 (Figure C,
page 10). TIGHTEN SECURELY! All wires must be hooked up securely or
damage could result.
9. Install control box door and screws and reinstall the cabinet side panels.
6.0 Power Requirements
Sundance hot tubs are designed to provide optimum performance and flexi-
bility of use when connected to the maximum electrical service as listed
below. However, they are shipped configured for the most commonly pre-
ferred electrical connection -- 50A, 240V
*
If you prefer, your Sundance dealer can perform a minor circuit board modi-
fication to allow the hot tub to accept different electrical service. The opera-
tional considerations of these modifications are listed in the footnotes below.
AL
TAMAR and MARIN Models
2
40V/30A** 240V/50A* 240V/60A***
Voltage 240 VAC 240 VAC 240 VAC
Current Draw 24A 40A 48A
Number of Wires Three Three Three
Circuit Breaker 30A, 2-pole 50A, 2-pole 60A, 2-pole
CAPRI Models
240V/30A** 240V/50A* 40V/60A***
Voltage 240 VAC 240 VAC N/A
Current Draw 24A 40A
Number of Wires Three Three
Circuit Breaker 30A, 2-pole 50A, 2-pole
* In 50A configuration, the heater will not operate while both pumps are
running in high speed. Note: pump #2 runs only in high speed.
