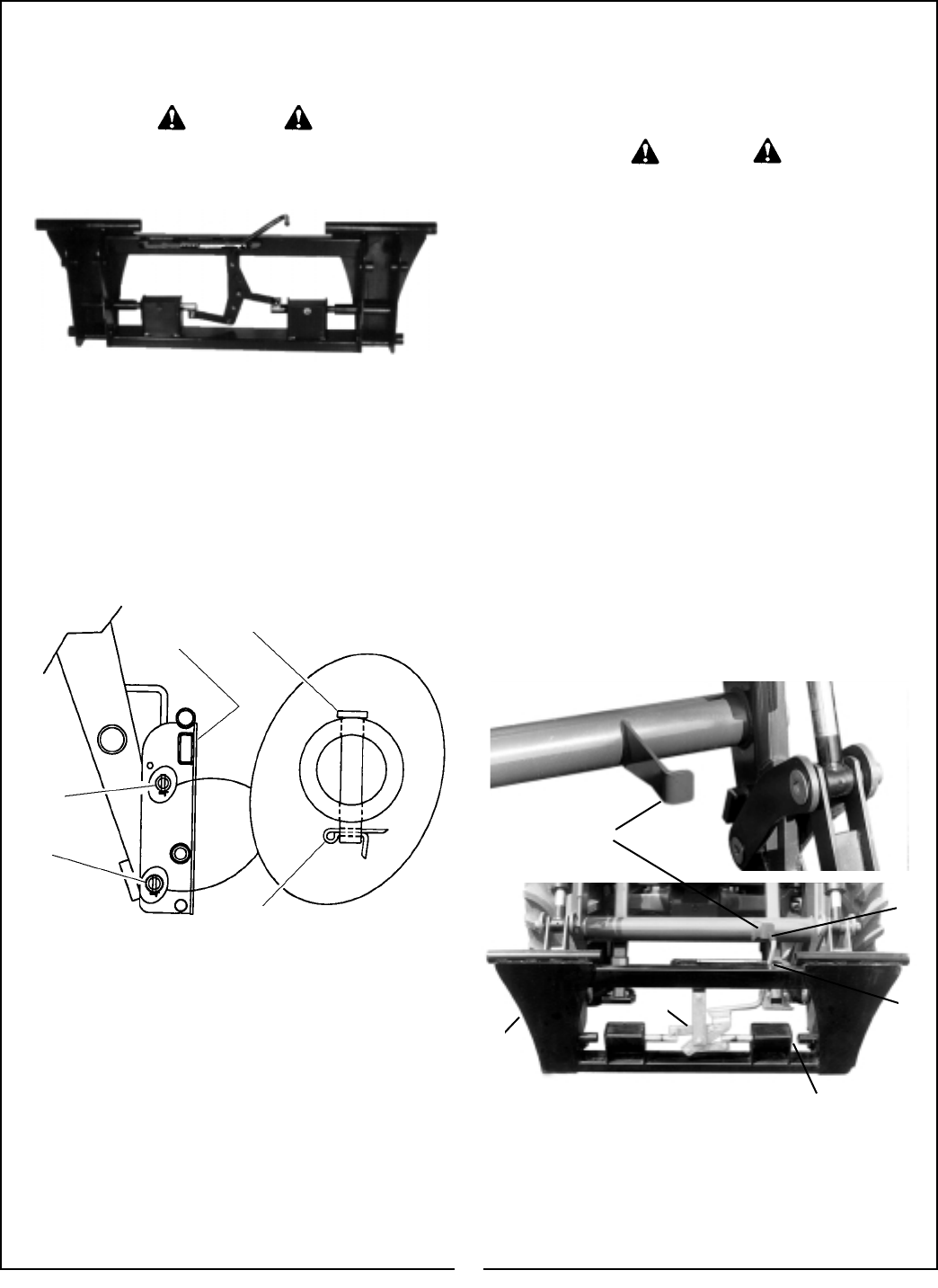

8. INSTALLATION & OPERATION OF
QUICK DRAW LATCH ATTACH
ALWAYS READ AND FOLLOW OPERAT-
ING INSTRUCTIONS BEFORE OPERATING
QUICK DRAW LATCH ATTACH.
WARNING
INSTALLATION INSTRUCTIONS
IMPORTANT: Do not extend bucket cylinders
without quick draw latch attach installed on
loader. Failure to follow these instructions will
void loader warranty.
Install quick draw latch attach to loader using four (4)
pins as specified below. Secure pins using clevis
pins and cotter pins, 4 places. Refer to Figure 1.
Figure 1
(1) Top pin 1-1/8" x 6-7/8", 2 places.
(2) Bottom pin 1-1/8" x 6-7/8", 2 places.
(3) Clevis pin 5/16" x 2", 4 places.
(4) Cotter pin 1/8" x 1", 4 places.
(5) Quick Draw Latch Attach Adapter.
3
5
1
2
4
OPERATING INSTRUCTIONS
CAUTION
EXCEPT WHEN DETACHING OR ATTACH-
ING A QUICK DRAW BUCKET OR ATTACH-
MENT TO YOUR QUICK DRAW LATCH
ATTACH, ALWAYS POSITION THE QUICK
DRAW HANDLE IN THE HANDLE
ENGAGED POSITION, FIGURE 6, PAGE 28
THIS WILL PREVENT ACCIDENTAL TRIP-
PING OF QUICK DRAW HANDLE WHEN
NOT IN USE.
TO AVOID PERSONAL INJURY, KEEP
HANDS AWAY FROM LOADER WHEN
OPERATING.
IMPORTANT: To maintain your quick draw latch
attach functioning properly, always inspect
quick draw latch attach and quick draw handle
linkage components for damage. If damage
exists, replace component immediately.
IMPORTANT: To maintain your quick draw latch
attach functioning properly, always keep quick
draw latch attach, loader push off bar, quick
draw handle linkages, and pin areas clean. Refer
to Figure 2.
Figure 2
(1) Quick draw latch attach.
(2) Quick draw handle.
(3) Quick draw notch.
(4) Loader push off bar.
(5) Quick draw handle linkages.
(6) Quick draw pin area.
4
1
2
3
5
6
27
