168 Chapter 7
Custom Real Time I/Q Baseband
Working with Data Patterns
NOTE When you create a new file, the default name is UNTITLED, or UNTITLED1, and so forth. This
prevents overwriting previous files.
3. Using the numeric keypad (not the softkeys), enter the 32 bit values shown.
Bit data is entered into the Bit File Editor in 1-bit format. The current hexadecimal value of the
binary data is shown in the Hex Data column and the cursor position (in hexadecimal) is shown
in the Position indicator.

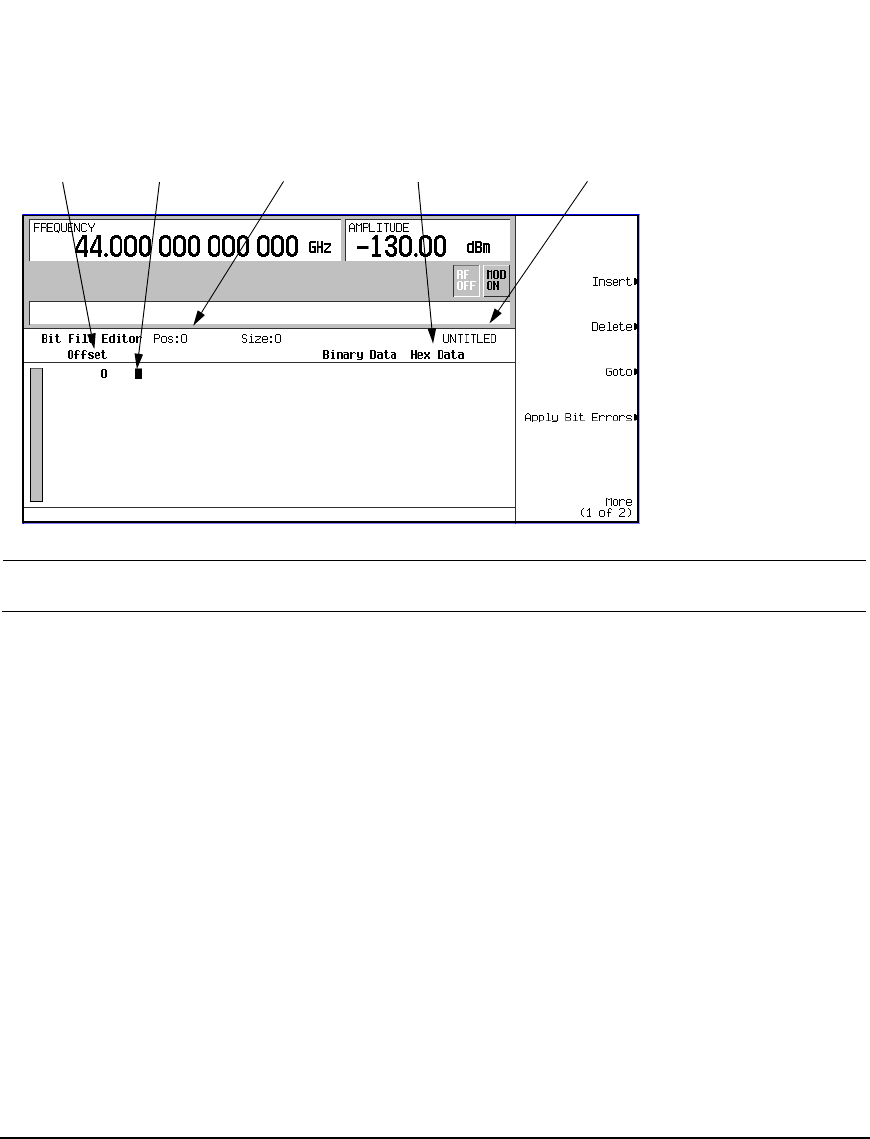

Hexadecimal Data
File Name indicator
Bit Data
Cursor Position
indicator (in Hex)
Offset
(in Hex)
