Section 7
- NOTE -
The front of the machine will have to be raised
slightly to remove the blade bolt from the cutter
spindle.
To install the new cutter blade, put the flat washer
4.
onto the blade bolt and slide the bolt into the hole in
the cutter blade.
WASHER
HEX HEAD BOLT
CUTTER
BLADE
SPINDLE
ASSEMBLY
CUTTER BLADE
SPACER
HEX HEAD
BOLT / NUT
CUTTER
DECK
SPINDLE
SHAFT
HEX NUT-TORQUE
TO 75 LB-FT

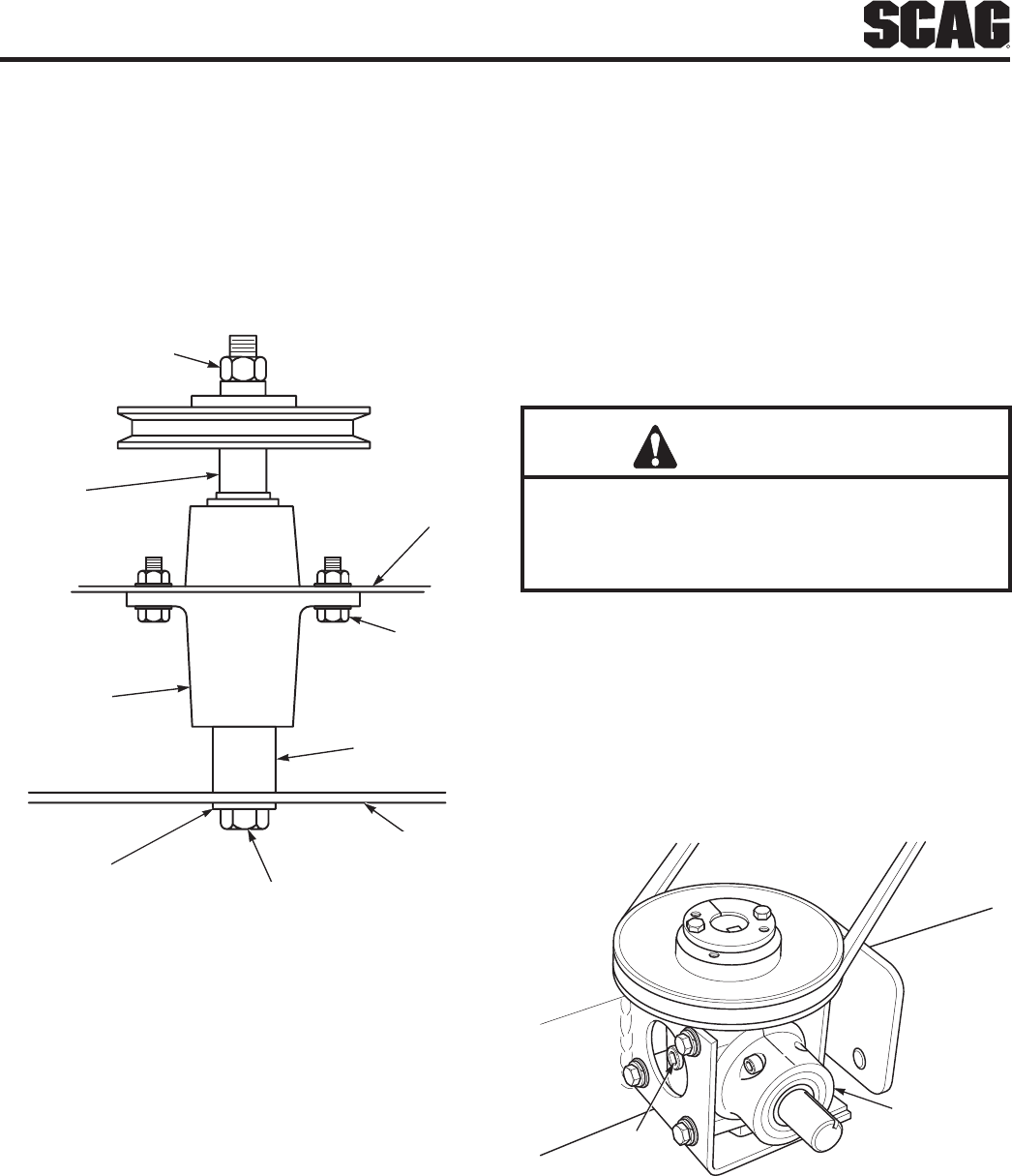

Blade ReplacementFigure 7-8.
- NOTE -
Be sure that the blade is installed with the lift wing
toward the top.
Install the spacer onto the blade bolt and insert the 5.
bolt into the cutter spindle shaft.
Install the hex nut to the blade bolt at the top of the 6.
cutter spindle. Secure the blades from rotating and
torque to 75 lb-ft. See Figure 7-8.
TIRES7.10
Check the tire pressures after every 8 hours of operation
or daily.
Caster Wheels Flat Free
Drive Wheels 12 PSI
CUTTER DECK GEARBOX7.11
A. CHECKING LUBRICANT LEVEL
CAUTION
The cutter deck gearbox can reach high operating
temperatures. Allow the cutter deck gearbox to
cool before servicing.
The fluid level in the cutter deck gearbox should be
checked after every 100 hours of operation or bi-weekly,
whichever occurs first.
Lower the cutter deck to to its lowest position to gain
1.
access to the cutter deck gearbox.
Clean and remove the check plug from the side of
2.
the gearbox. See Figure 7-9.
390S0161
CUTTER DECK
GEARBOX
CHECK
PLUG
Cutter Deck GearboxFigure 7-9.
Visually check that the lubricant level is up to the 3.
bottom edge of the check plug hole. If lubricant is
low, add SAE 80W90 lubricant through the check
plug hole in the gearbox until it is level with the
bottom of the check plug hole. Install the check plug
and tighten securely.
