Scag Power Equipment STT61V-27KA Lawn Mower User Manual



24
R
Section 6
PARKING BRAKE ADJUSTMENT6.1
WARNING
Do not operate the mower if the parking brake
is not operable. Possible severe injury could
result.
The parking brake linkage should be adjusted whenever
the parking brake lever is placed in the “ENGAGE” position
and the parking brake will allow the mower to move. If the
following procedures do not allow you to engage the parking
brake properly, contact your Scag dealer for further brake
adjustments.
Position a floor jack under the rear of the machine. 1.
Raise the machine and support it to prevent it
from falling. Block the caster wheels to prevent the
machine from moving. Remove the drive wheels.
With the brake lever in the disengaged position,
2.
check the distance between the top of the frame
tube and the bottom of the brake handle. The
distance should be 2" to 2-1/4". See Figure 6-1.
If the distance is not at the specified measurement, 3.
adjust by loosening the jam nuts at both ends of the
brake control rod and turning the rod until the proper
distance is achieved. Tighten the jam nuts. See
Figure 6-1.
With the brake in the engaged position, check
4.
the distance between the lower nut on the brake
actuator rod and the brake actuator lever on the LH
side of the machine. The distance should be 1/8".
See Figure 6-2.
If the distance is not at the specified measurement,
5.
loosen the jam nut at the clevis on the top of the
brake actuator rod. See Figure 6-2.
Turn the bolt at the bottom of the brake actuator lever 6.
until the 1/8" measurement is achieved and tighten
the jam nut at the clevis on the brake actuator rod.
See Figure 6-2.
Repeat steps 4 though 6 on the RH side of the 7.
machine.
Replace the drive wheels and test the brake.8.
ADJUSTMENTS
- NOTE -
If this procedure does not achieve proper brake
adjustment, please contact your authorized Scag
dealer.
390S0152-1
LOOSEN HERE
2" to 2-1/4" Clearance

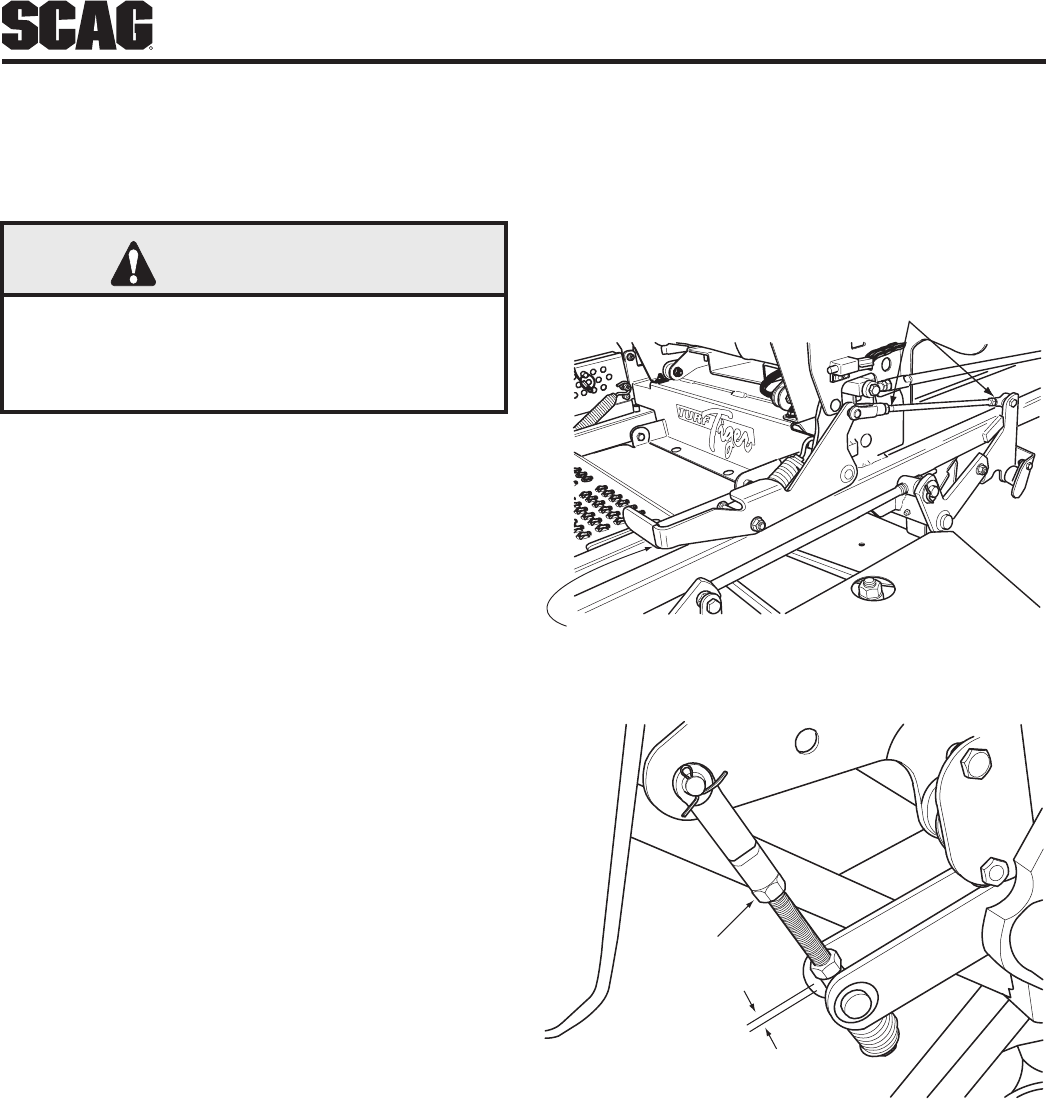

Brake AdjustmentFigure 6-1.
390S0153-1
LOOSEN
HERE
1/8"
Brake Rod AdjustmentFigure 6-2.
