Scag Power Equipment STT61V-27KA Lawn Mower User Manual



13
R
Section 4
CAUTION
Do not attempt to operate this mower unless you
have read this manual. Learn the location and
purpose of all controls and instruments before
you operate this mower.
CONTROLS AND INSTRUMENT 4.1
IDENTIFICATION
Before operating the mower, familiarize yourself with all
mower and engine controls. Knowing the location, function
and operation of these controls is important for safe and
efficient operation of the mower.
Ignition Switch (Figure 4-1).1. The ignition switch
is used to start the engine and has three positions;
OFF, ON, and START.
OPERATING INSTRUCTIONS
Mower Deck Switch (Figure 4-1). 2. Used to engage
and disengage the mower drive system. Pulling up
on the switch will engage the deck drive. Pushing
down on the switch will disengage the deck drive.
Engine Choke Control (Figure 4-1).
3. Used to start
a cold engine. Not used on the 29DFI.
Engine Throttle Control (Figure 4-1).4. Used to
control the engine speed. Pushing the lever forward
increases engine speed. Pulling the lever back
decreases engine speed. Full back position is the
IDLE position. Full forward is the cutting position.
Ammeter (Figure 4-1).5. Indicates the condition of
the charging system. When the engine is running
the needle should be toward the positive end of the
meter. If the needle is toward the negative end of the
meter, this indicates a discharge condition and the
machine should be taken in for service.
CHOKE
481348
F
LEFT STEERING
CONTROL
MOWER DECK
IGNITION SWITCH
FUEL GAUGE
DUMP VALVE
DUMP VALVE
FUSES
ENGINE
CHOKE
CONTROL
ENGINE THROTTLE
CONTROL
RIGHT STEERING
CONTROL
DECK LIFT
DECK RELEASE
2006 STTCHMI
PARKING BRAKE
CONTROL
CUTTING HEIGHT
ADJUSTMENT
KAWASAKI DFI ONLY
AMMETER
SWITCH
WATER TEMPERATURE
CHECK
ENGINE
LIGHT
CHECK
ENGINE LIGHT
482796
SLOW
FAST
HOUR METER
SEAT BELT

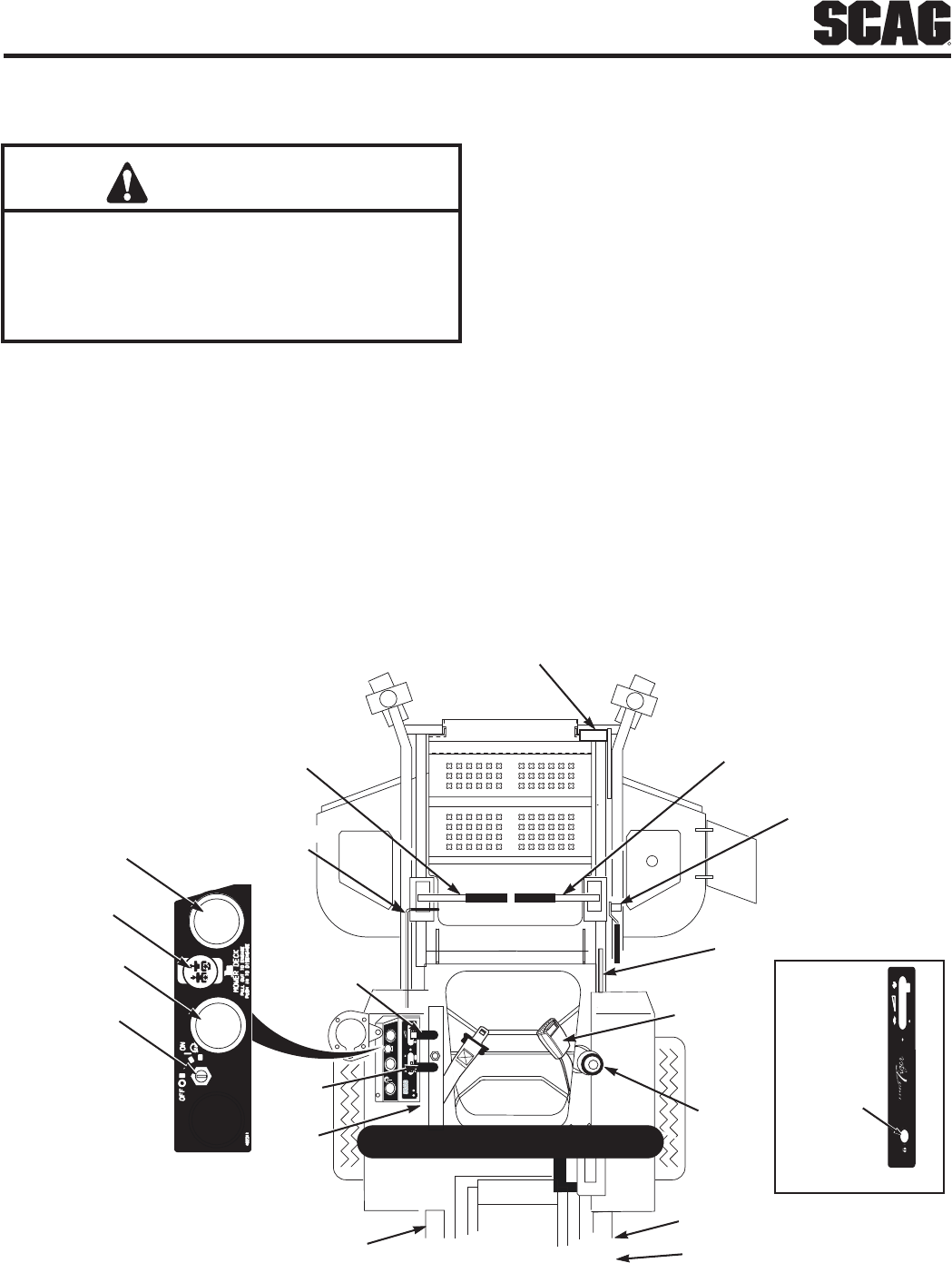

Controls and InstrumentsFigure 4-1.
