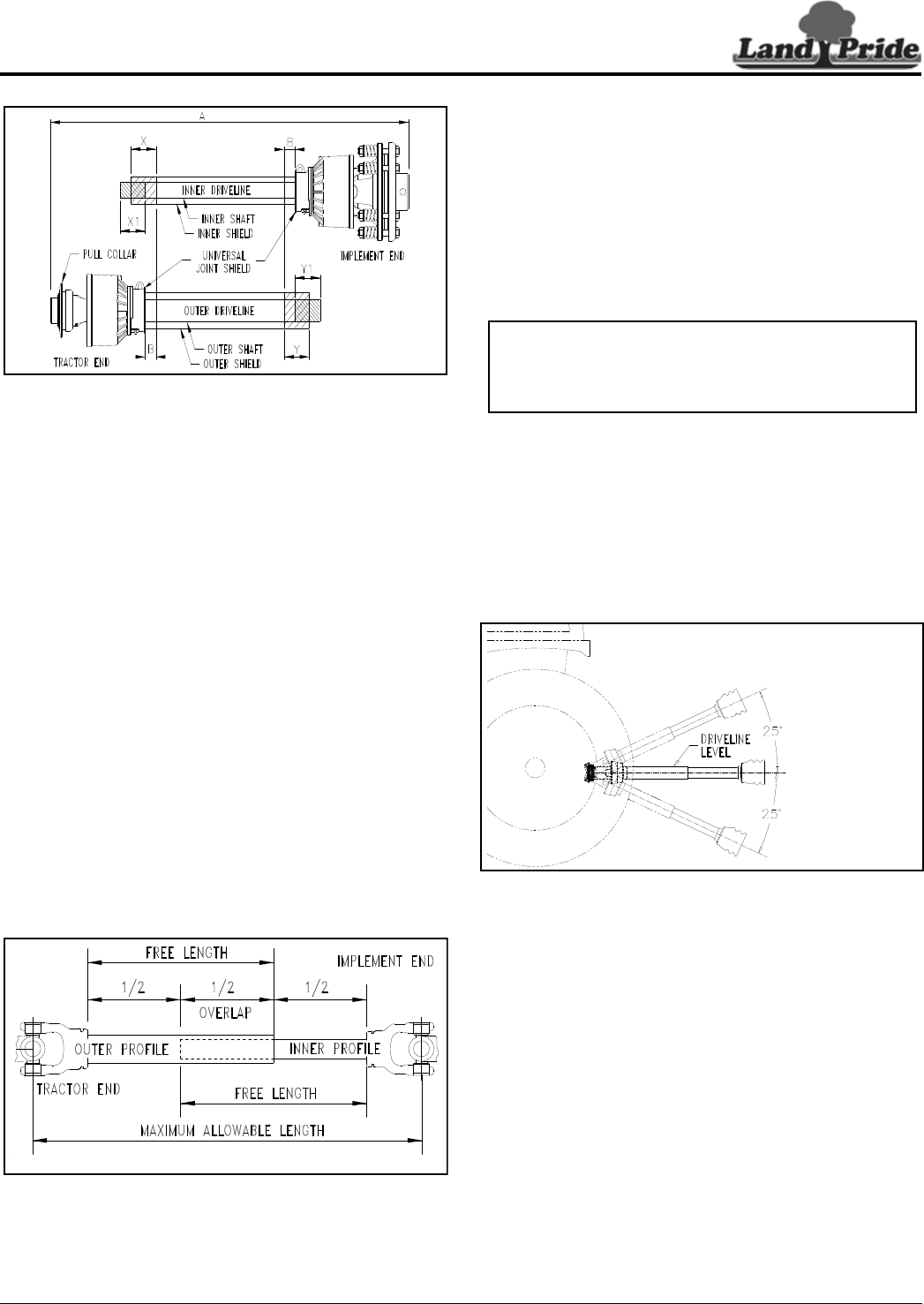

Driveline Shortening
Figure 1-6
4. Remove driveline from tractor PTO shaft and gearbox
shaft.
5. Measure from end of inner shield to scribed mark
(“X” dimension). Cut off inner shield at the mark. Cut
same amount off the inner shaft (“X1” dimension).
6. Measure from end of outer shield to scribed mark
(“Y” dimension). Cut off outer shield at the mark. Cut
same amount off the outer shaft (“Y1” dimension).
7. Remove all burrs and cuttings.
8. Continue with “Check Driveline Maximum Length”.
Check Driveline Maximum Length
Refer to Figure 1-7:
The driveline maximum allowable length must, when fully
extended, have a minimum overlap of profile tubes by not
less than 1/2 the free length with both inner and outer
profile tubes being of equal length.
1. Separate inner and outer profiles apart and apply
multi-purpose grease inside the outer shaft.
2. Reassemble inner and outer driveline profiles
together with just 1/2 overlapping of the profile tubes
as shown. Once assembled, measure and record
maximum allowable length here. ________
Driveline Maximum Extended Length
Figure 1-7
22311
24804
Outer Shielding has been removed for clarity.
Check Driveline Interference
1. Make certain driveline yokes are properly attached.
2. Start tractor and raise Rotary Cutter just enough to
remove support blocks from under the cutter.
3. Slowly engage tractor hydraulic 3-Point control lever
to lower cutter while checking for sufficient drawbar
clearance. Move drawbar ahead, aside, or remove if
required.
Refer to Figure 1-8:
4. With PTO off, raise implement fully up to make the
following checks below. If driveline exceeds any of
the limits listed, set tractor 3-Point lift limiter at a
height that will keep the driveline within its lift limits
and to avoid premature driveline breakdown.
• Driveline does not exceed 25
o
up.
• Driveline does not exceed maximum allowable
length recorded in step 2 under “Check Driveline
Maximum Length”.
Maximum PTO Driveline Movement During Operation
Figure 1-8
IMPORTANT: Avoid premature driveline breakdown.
A driveline that is operating must not exceed an
angle of 25 degrees up or down while operating 3-
point lift.
24872
