Jacuzzi Whirlpool Bath: Finestra Walk-in Bath Page 7 FL61000B • 10/07
SPECIFICATIONS
Technical Specifications
Dimensions
60” L x 30” W x 38-1/2” H
(1524 mm) L x (762 mm) W x (977.9 mm) H
Drain/Overflow
A: 31-1/2” (800 mm) B: 11-11/16” (297 mm)
Cutout
NA
Total Weight
EW05, EW10: 360 lb. (163.5 kg)
EY30, EY35: 360 lb. (163.5 kg)
Operating Gallonage
Max: 75 U.S. Gal. (284 liters)
Min: 55 U.S. Gal. (208 liters)
Product Weight
EW05, EW10: 310 lb. (141 kg)
EY30, EY35: 310 lb. (141 kg)
Skirt Mounting
NA
Electrical Specifications
Requires two seperate GFCI protected circuits.
Motor/Pump and RapidHeat™: 240 VAC, 20 AMP, 60 Hz.
Blower: 120 VAC, 20 AMP, 60 Hz.
Heater (Standard)
RapidHeat™: P/N BN60000
Installation Notes
Refer to installation instructions included with fixture before
beginning installation. Please confirm product availability and
specifications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO
CHANGE WITHOUT NOTICE.
Ordering Information
Product Code:
EW05 Finestra™ 6030 Walk-In 14" Seat Salon™ Spa
Bath, Left Hand
EW10 Finestra™ 6030 Walk-In 14" Seat Salon™ Spa
Bath, Right Hand
EY30 Finestra™ 6030 Walk-In 17" Seat Salon™ Spa
Bath, Left Hand
EY35 Finestra™ 6030 Walk-In 17" Seat Salon™ Spa
Bath, Right Hand
• Left and Right Hand drain locations
• Standard drain kit, No. FB48827
• Accessories / Hardware:
Remote Drain Kit: #FC30XXX
Pillow: #EK91959
• Trim Kit Finishes Available:
Standard Part No. BN21XXX
(827) – Chrome
(829) – Bright Brass
(898) – Brushed Chrome
(826) – Brushed Nickel
(845) – Oil-Rubbed Bronze
(805) – Platinum
(815) – Satin Nickel

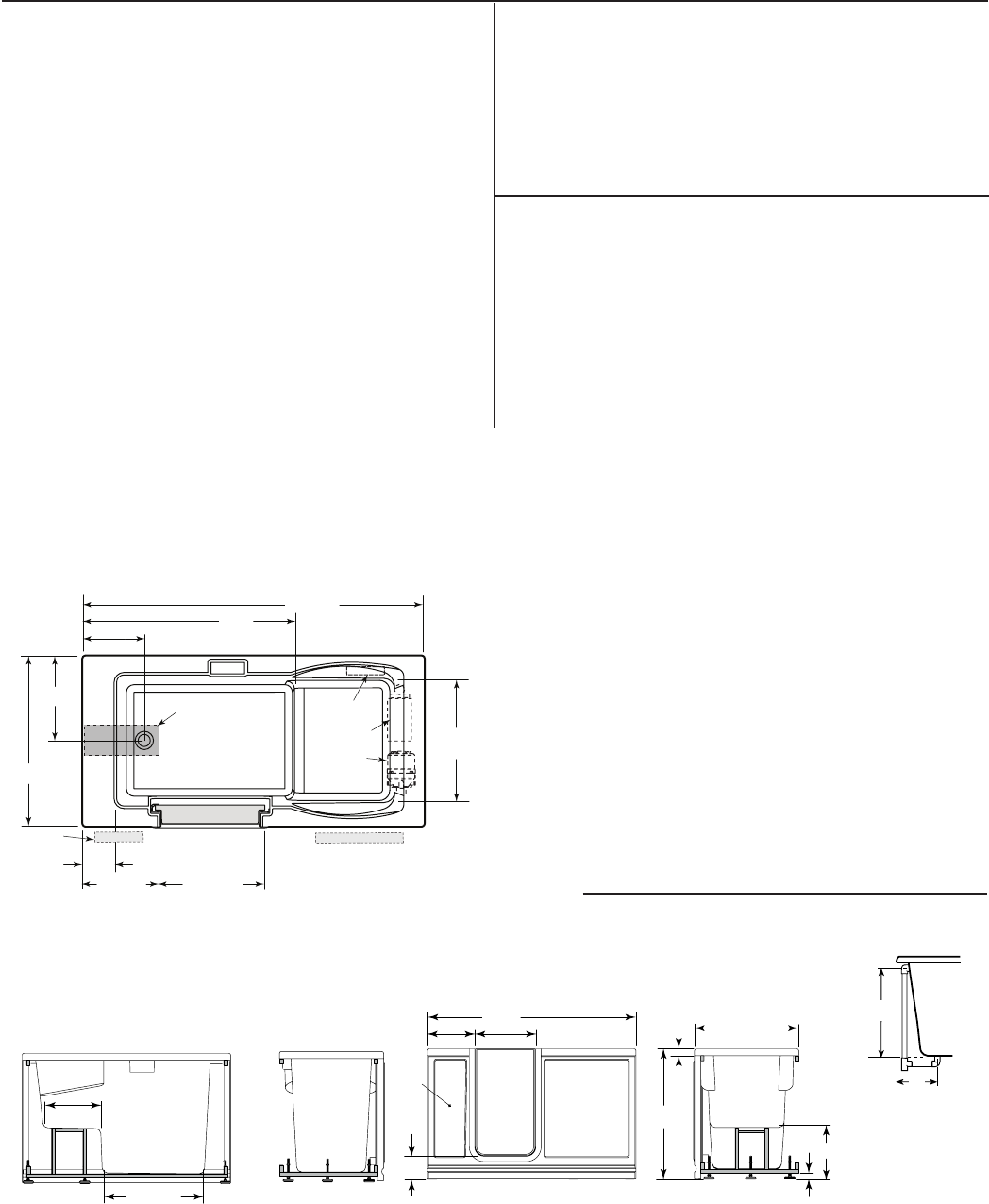

DRAIN/OVERFLOW
A
B
BACK FRONTLEFT END RIGHT END
L
H
W
14" or 17"
1-1/2"
2"
6-1/2"
29-1/2"
16-3/4"
17-1/2"
13-3/4"
Service Access
Service
Access
60"
30"
17-1/2"
5"
15"
6-5/8”
37"
13-3/4"
20"
4" x 16"
Motor
SeatFloor
FINESTRA™ 6030
Blower
Heater
27" H x 24" L
Service Access
27" H x 9" L
Service Access
Door
Finestra™ 6030 Walk-In 14" Seat Salon™ Spa Bath Left Hand (EW05) shown.
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
Minimum service access dimensions given.
