Jacuzzi Whirlpool Bath: Finestra Walk-in Bath Page 15 FL61000B • 10/07
OPERATION
NOTE: These instructions pertain to all bath products
manufactured by Jacuzzi Whirlpool Bath. Not all features
discussed in this instruction pamphlet apply to all baths.
All baths manufactured by Jacuzzi Whirlpool Bath are
designed for “ll and drain,” which means the bath should
be drained after each use and lled with fresh water by the
next bather. This is a health precaution, as these baths are
not designed to hold water continuously like pools or spas.
If you want a unit designed to continuously hold water, see
your Jacuzzi Whirlpool Bath dealer for the complete line of
whirlpool spas available.
Once the bath is installed, remove any residue or foreign
materials left over from construction.
NOTE: Use these chemicals only on SURFACE stains. Other
dirt can be cleaned off with a mild liquid detergent on a damp
cloth. Scrape off plaster with a wooden or plastic edge; do
not use metal scrapers, wire brushes or other metal tools,
as they will damage the bath’s surface.
Water Level

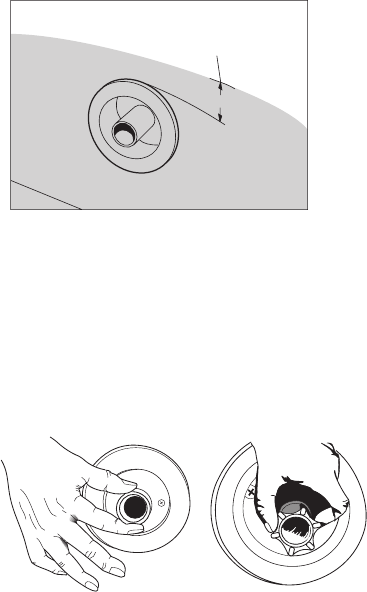

Close the drain and ll the bath until water is at least 1” to 2”
(2.5 to 5.08 cm) above the highest jet (see water line indicated
in the illustration). Do not turn on the whirlpool system at any
time if the jets are not completely immersed in water. Do not
immerse the control panel by overlling the bath. Running
the whirlpool system when there is insufcient water in the
bath could result in water spraying outside the bath area.
Running the whirlpool system without water will damage the
recirculating pump.
IMPORTANT: When exiting the bath, the water level will drop
below the jets which could result in water being sprayed out
of the unit. To prevent this, you must turn unit off before
exiting bath.
Controlling Whirlpool Action
The whirlpool action in your bath, controlled manually and
electronically, is inuenced by three factors – direction of ow,
force of water, and force of air. Every bath manufactured by
Jacuzzi Whirlpool Bath that is equipped with fully adjustable
PowerPro® jets, are manually adjustable for direction and
water force. Some baths have additional jets which can be
adjusted for direction only. Baths equipped with 2 speed
motors and electronic controls can also inuence water force
and force of air.
DIRECTION: To change the direction of the water ow, swivel
the jet nozzle to the desired angle. The jets can be directed
individually toward any location on your body to provide a
hydromassage. The jets can also be adjusted so that they all
point in the same direction (clockwise or counterclockwise)
to circulate the water in a circular motion around the bath,
causing a total whirlpool effect.
WATER FORCE: The high volume, fully adjustable
PowerPro® jets can be manually adjusted to control the
force of the water coming into the bath. For robust action,
increase the force of the ow by rotating the jet handles to
the left (counterclockwise). For a more gentle effect, rotate
1" - 2"
FILL TO AT LEAST
1" - 2" ABOVE HIGHEST JET
DIRECTIONALLY
ADJUSTABLE
FULLY
ADJUSTABLE
JETS
FORCE OF AIR: For units with electronic controls the Force
of Air is controlled electronically. Refer to the Electronic Control
Panel instructions for details in adjusting Force of Air. Units
with manual controls are discussed on page 22.
the handles to the right (clockwise). Customize water force by
lowering water volume of one (1) jet(s) to increase water force
in another jet(s). In units with 2 speed motors the water force
can be increased or decreased using the electronic control.
Never run the whirlpool system with all the jets closed.
CONTROL PANEL OPERATION
All tubs in this product line come with electronic controls and
standard Chromotherapy. Read and follow the operation
instructions for the control system of your unit.
General Functions
This Jacuzzi tub is equipped with an electronic control panel.
The seven button panel controls a two speed pump/motor,
Chromotherapy lighting, air controls, wave control, and in
some units the blower. LED lights (in the control panel)
indicate function levels. When switching between functions,
the LED for the inactive functions will dim and the active
function will brighten.
The bath is equipped with a water level sensor(s). When the
water level is below the sensor, the pump/motor can not be
activated. If the ON/OFF pump/motor button is pressed at
this time, the pump/motor will not operate. When the water
goes above the water level sensor, the pump/motor can be
activated. If the water level drops below the level sensor, the
pump/motor will shut OFF. To restart the pump/motor after
the water level goes above the level sensor, the ON/OFF
pump/motor button must be pressed. The pump/motor will
automatically shut off 30 minutes after the pump/motor was
turned on.
NOTE: Ensure the water level sensor located inside the bath
is free of any soap or dirt buildup.
