Jacuzzi Whirlpool Bath: Finestra Walk-in Bath Page 22 FL61000B • 10/07

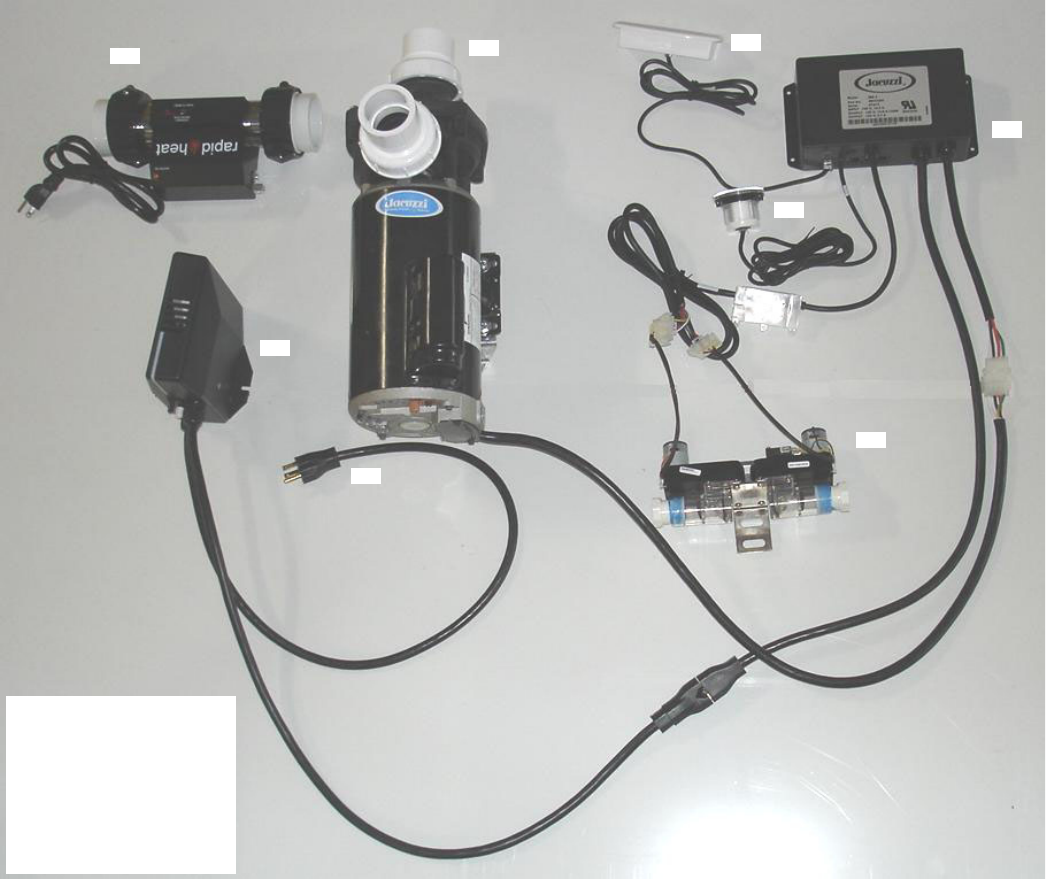

WHIRLPOOL BATH INTERCONNECTION DIAGRAM
The Whirlpool bath equipment is shown in the following
gure. It shows the only acceptable manner in which the
system components may be interconnected for efcient and
safe operation. If the equipment is not congured as shown
in the gure, the equipment may not operate or it may result
in damage to the equipment
B
C
A
E
F
D
LEGEND
A Heater
B Pump/motor
C Control panel
D Control box
E Chromatherapy light
F Electronic air switch
G GFCI Plug, 20 A
H Ozone system
H
G
MODEL NUMBERS
EU50, EU55, EU60, EU65,
EY10, EY15, EY50, and EY55,
See Specications for details
ELECTRICAL SPECS
Requires a separate dedicated GFCI protected circuit
RapidHeat, 120 VAC, 20 A, 60 Hz
PN BN60000 (EU60, EU65, EY50, and EY55 only)
