SPECIFICATIONS
Technical Specifications
Dimensions
60” L x 30” W x 38-1/2” H
(1524 mm) L x (762 mm) W x (977.9 mm) H
Drain/Overflow
A: 31-1/2” (800 mm) B: 11-11/16” (297 mm)
Cutout
NA
Total Weight
EU60, EU65: 360 lb. (163.5 kg)
EY50, EY55: 360 lb. (163.5 kg)
EW15, EW20: 340 lb. (154.5 kg)
EY40, EY45: 340 lb. (154.5 kg)
Operating Gallonage
Max: 85 U.S. Gal. (322 liters)
Min: 70 U.S. Gal. (265 liters)
Product Weight
EU60, EU65: 310 lb. (141 kg)
EY50, EY55: 310 lb. (141 kg)
EW15, EW20: 290 lb. (132 kg)
EY40, EY45: 290 lb. (132 kg)
Skirt Mounting
NA
Electrical Specifications (Models EU60, EU65, EY50, EY55 only)
Motor/Pump and RapidHeat™: 120 VAC, 20 AMP, 60 Hz.
Heater
RapidHeat™: P/N BN60000
*(Models EU60, EU65, EY50, EY55 only)
Installation Notes
Refer to installation instructions included with fixture before
beginning installation. Please confirm product availability and
specifications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO
CHANGE WITHOUT NOTICE.
Ordering Information
Product Code:
EU60 Finestra™ 6036 Walk-In 14" Seat Whirlpool Bath, LH
EU65 Finestra™ 6036 Walk-In 14" Seat Whirlpool Bath,
RH
EY50 Finestra™ 6036 Walk-In 17" Seat Whirlpool Bath, LH
EY55 Finestra™ 6036 Walk-In 17" Seat Whirlpool Bath, RH
EW15 Finestra™ 6036 Walk-In 14" Seat Bath, LH
EW20 Finestra™ 6036 Walk-In 14" Seat Bath, RH
EY40 Finestra™ 6036 Walk-In 17" Seat Bath, LH
EY45 Finestra™ 6036 Walk-In 17" Seat Bath, RH
• Left and Right Hand drain locations
• Standard drain kit, No. FB48827
• Accessories / Hardware:
Remote Drain Kit: #FC30XXX
Pillow: #EK91959
• Trim Kit Finishes Available:
Standard Part No. BN21XXX
(827) – Chrome
(829) – Bright Brass
(898) – Brushed Chrome
(826) – Brushed Nickel
(845) – Oil-Rubbed Bronze
(805) – Platinum
(815) – Satin Nickel

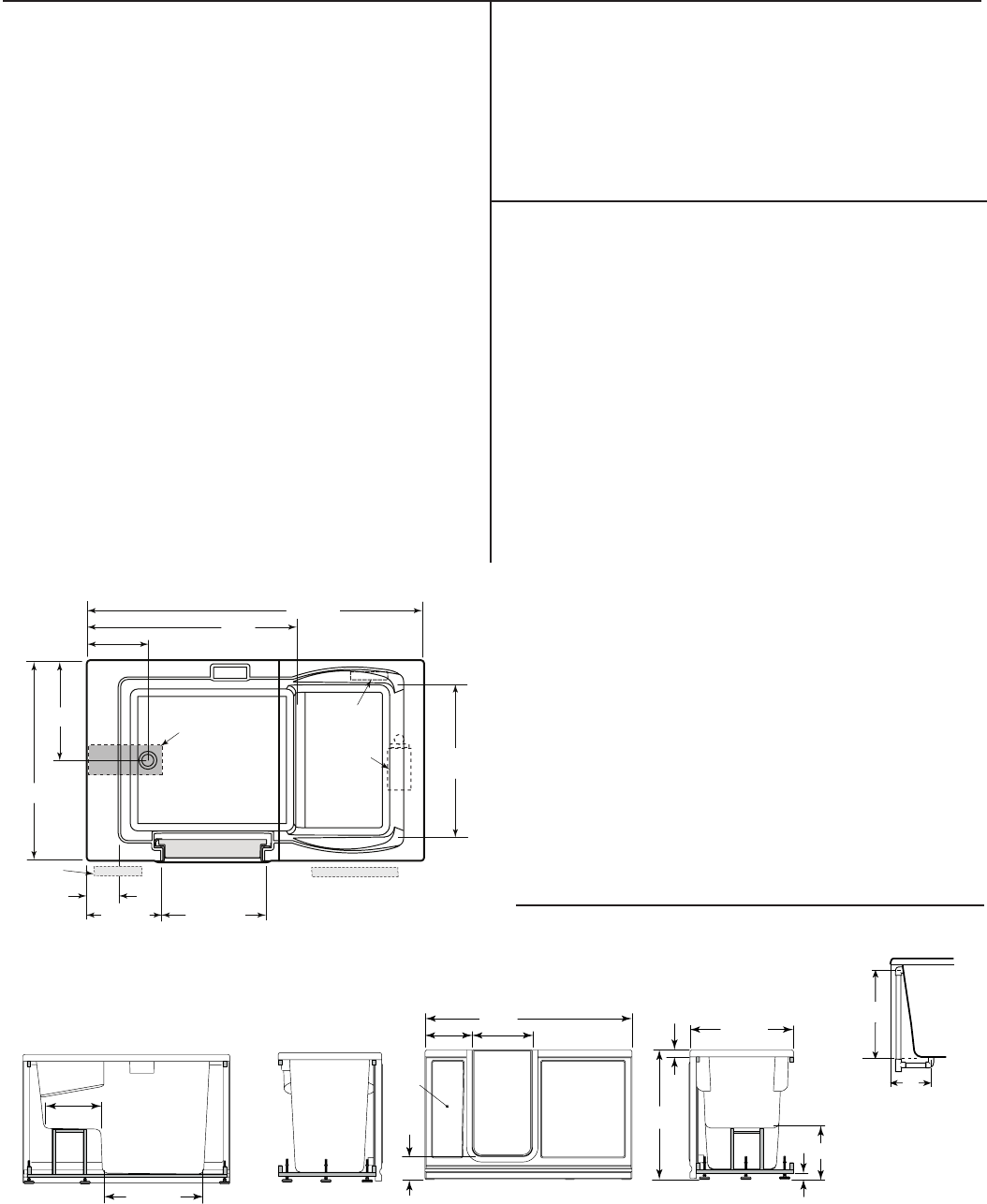

DRAIN/OVERFLOW
A
B
BACK FRONTLEFT END RIGHT END
L
H
W
14" or 17"
1-1/2"
2"
6-1/2"
29-1/2"
16-3/4"
17-1/2"
13-3/4"
Service Access
Service
Access
60"
36"
17-1/2"
5"
18"
6-5/8"
37"
13-3/4"
26"
4" x 16"
Motor
SeatFloor
FINESTRA™ 6036
*Heater
27" H x 24" L
Service Access
27" H x 9" L
Service Access
Door
Finestra™ 6036 Walk-In 14" Seat Whirlpool Bath Left Hand (EU60) shown.
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
Minimum service access dimensions given.
