DIAGNOSTIC DISPLAY
5. Touching the “Enter Button” will redisplay the hidden
fault. Touching the “Enter Button” once again will hide
the fault and return the screen to the single or four
parameter display. NOTE: The fault can only be cleared
by correcting the cause of the fault condition.

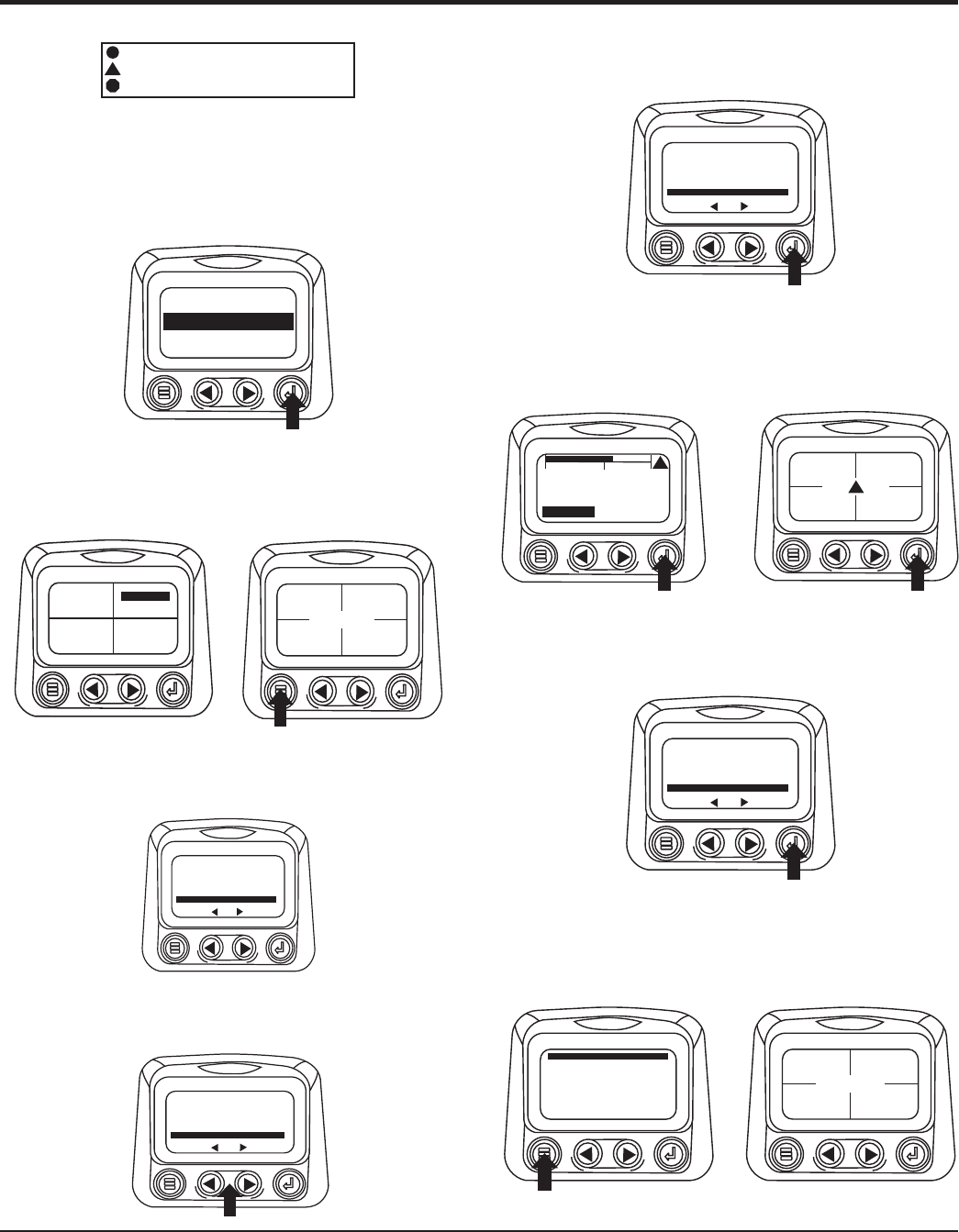

Active Fault Codes
1. During normal operation the single or four parameter
screen will be displayed
2. When the PowerView receives a fault code from an
engine control unit the single or four parameter screen
will be replaced with the “Active Fault Codes” message.
3. If the word “MORE” appears above the “Arrow Buttons”,
there are more active fault codes that may be viewed.
Use the “Arrow Buttons” to scroll to the next “Active
Fault Code”.
!
!
!
Indicates Auxiliary Gage Fault
Indicates Fault Warning
Indicates Derate or Shutdown Condition Fault
ENGINE OIL PRESSURE
GAGE NOT RESPONDING
1ofx
HIDE
98%
14.2
57 PSI
1000 RPM
LOAD RPM
BATTVOLT
ENG RPM
OIL PRES
125°F
COOL TEMP
143°F
OIL TEMP
57 PSI
1000 RPM
ENG RPM
OIL PRES
SPN110 FMI10
HIGH COOLANT TEMP
WARNING
1ofx
MORE
HIDE
SPN110 FMI10
HIGH COOLANT TEMP
1ofx
MORE
HIDE
4. To acknowledge and “Hide” the fault and return to the
single or four parameter display touch the “Enter
Button”.
5. The display will return to the single or four parameter
display but the display will contain the “Active Fault”
warning icon. Touching the “Enter Button” will redisplay
the hidden fault.
6. Touching the “Enter Button” once again will hide the
fault and return the screen to the single or four
parameter display.
7. The Single or Four parameter screen will display the
fault icon until the fault condition is corrected. NOTE:
Ignoring active fault codes could result in severe engine
damage.
SPN110 FMI10
HIGH COOLANT TEMP
1ofx
MORE
HIDE
COOL
1800 RPM
0
1500
3000
TEMP!
ENG RPM
!
98%
14.2
!
57 PSI
1000 RPM
LOAD RPM
BATT VOLT
ENG RPM
OIL PRES
!
SPN110 FMI10
HIGH COOLANT TEMP
WARNING
1ofx
MORE
HIDE
