Contents of Carton
3
7
Before beginning installation, remove all parts from the carton to make sure everything is present. Carton contents are listed below
and shown in Fig. 2-1. Hardware part numbers are shown in parentheses.
Hitch Bracket Kit •
(3 brackets & Hardware Pack)
700 Series Mount Kit • (2 brackets & hardware)
Chute Tube Extension•
Hitch Support•
Discharge Chute Elbow•
Grass Catcher Cover Screen•
Grass Catcher Cover•
Two Grass Bag Assemblies•
Upper Chute Tube•
Upper Chute Support•
Hinge Cover Pin•
Upright Support•
Bag Support Assembly•
Three Hardware Packs •
(Detailed & Pictured on next page)

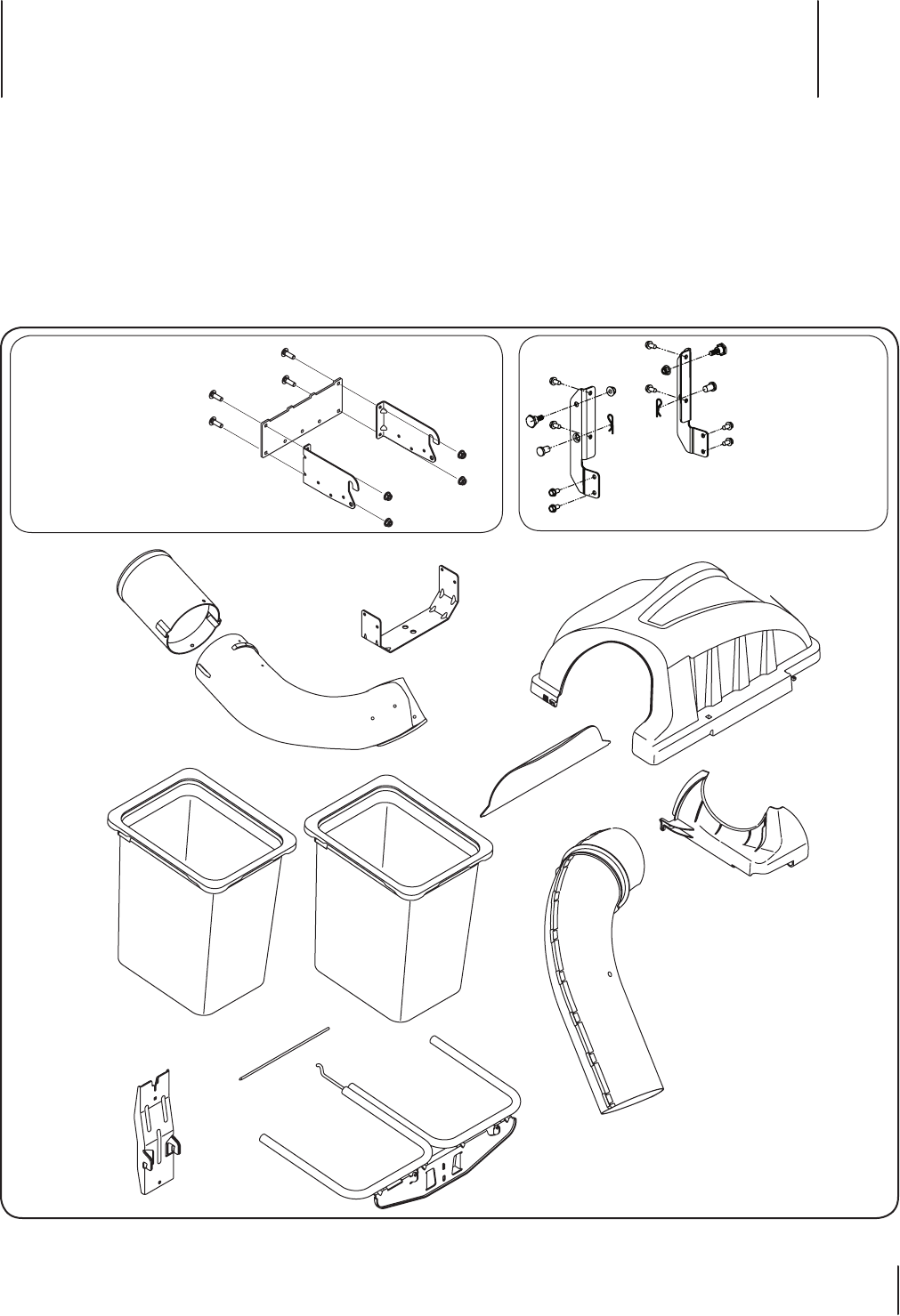

Figure 2-1
RH Bracket (783-05889)
LH Bracket (783-05890)
(8) Hex Bolts (710-04484)
(2) Shoulder Bolts (738-04267)
(2) Flange Lock Nuts (712-04065)
(2) Clevis Pins (711-0332)
(2) Click Pins (714-0145)
Hitch Bracket Kit
(3 Pcs. & Hardware Pack)
700 Series
Mounting Kit
Includes the
following parts:
Chute Tube
Extension
(731-06610)
Hitch Support
(783-05887)
Discharge Chute
Elbow
(731-04153A)
Grass Bag
Assemblies
(664-04096)
Hinge Cover Pin
( 711- 0 49 8 8)
Upright Support
(683-04519)
Bag Support
Assembly
(683-04461)
Upper Chute Tube
(631- 04291)
Upper Chute
Support
(731-06497)
Grass Catcher
Cover
(631-04292)
Grass Catcher
Cover Screen
(731-06504)
RH Mount (789-00052)
LH Mount (789-00054)
Rear Attachment Bracket
(789-00053)
Carriage Bolts (4)
(710-0276)
Flange Lock Nuts
(4) (712-04063)
