13se c t i O n 4 — as s e M b l y & in s t a l l a t i O n

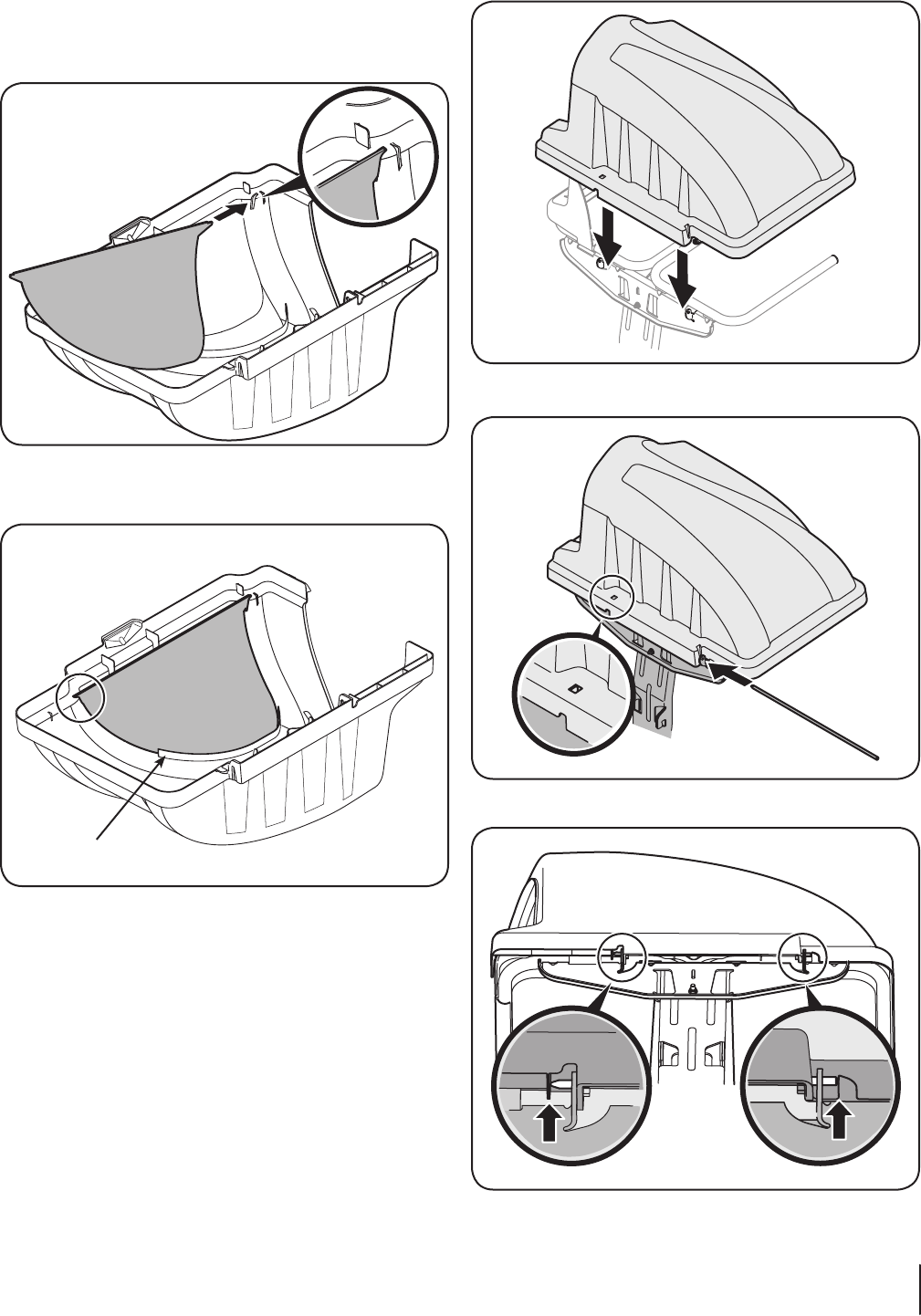

Install the bagger screen into the bagger cover by first 3.
inserting the end closest to the side with the cutout into
the mounting hole, as in Fig. 4-12. Make sure to feed the
screen under the lip, as in Fig. 4-13.
Clip in the other side by pushing the screen into the 4.
provided cutout. See Fig. 4-13.
Install the bagger cover onto the bag support assembly, as 5.
seen in Fig. 4-14. The plastic cover goes inside of the two
mounting tabs.
Slide the hinge pin into the hole located on the mounting 6.
tab, as in Fig. 4-15. Use the cut-out window (See inset in
Fig. 4-15) to line up the hinge pin on the other side and
push pin all the way in until it reaches the end-stop. At this
point the pin clips into place and is secured by a tab in the
bagger cover. See Fig. 4-16.
Figure 4-12
Figure 4-13
Figure 4-14
Figure 4-16
Figure 4-15
Make sure screen sits
under the cover’s lip
