between the spring retainer bracket and the
adjacent nyloc nut. Tighten the jam nut above
the trunnion roller.
4. If adjustment is necessary, loosen the nut
directly below the yoke. Turn the bottom nut
(below washer) until the correct measurement
is obtained (see Figure 18) turn nut clockwise
to lengthen the gap (screws rod into yoke) and
turn counterclockwise to shorten the gap (screws
rod out of yoke). Tighten nut against yoke and
check opposite side of unit, repeat if necessary.
Lengthen (or shorten) the brake rod until the
correct gap can be achieved by following steps
2 and 3.
Electric Clutch Adjustment
No adjustment necessary.
Reverse Indicator
Adjustment
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
2. Unhook seat latch and tilt seat forward.
3. Begin with either the left or right motion control
lever. Move lever to the neutral position and pull
lever back until the clevis pin (on arm below pivot
shaft) contacts the end of the slot (just beginning
to put pressure on spring). (Figure 19).
4. Check where lever is relative to notch in console
(should be centered allowing lever to pivot
outward to the neutral lock position).
5. If adjustment is needed, loosen the nut against the
yoke and while applying slight rearward pressure
on the motion control lever, turn the head of the
adjustment bolt in the appropriate direction until
lever is centered (keeping rearward pressure on
the lever will keep the pin at the end of the slot
and allow the adjustment bolt to move the lever
to the appropriate position). Tighten lock nut.
6. Repeat on opposite side of unit.

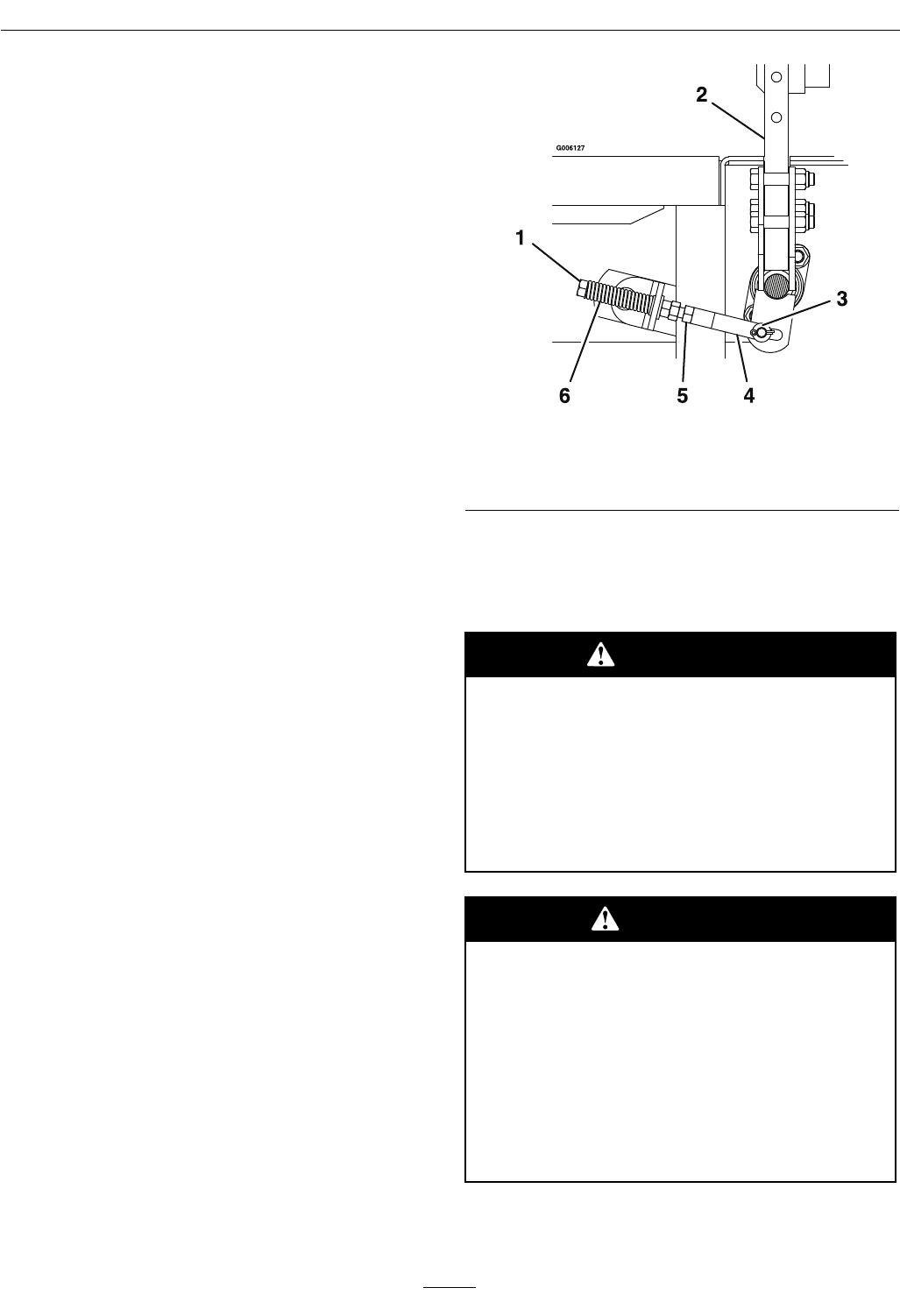

Figure 19
1. Turn bolt here 4. Yoke
2. Lever centered in notch 5. Loosen here
3. End of slot
6. Reverse indicator
Motion Control Linkage
Adjustment
WARNING
Engine must be running and drive
wheels must be turning so motion control
adjustment can be performed. Contact with
moving parts or hot surfaces may cause
personal injury
Keep ngers, hands, and clothing clear of
rotating components and hot surfaces.
CAUTION
Raising the mower deck for service or
maintenance relying solely on mechanical
or hydraulic jacks could be dangerous. The
mechanical or hydraulic jacks may not be
enough support or may malfunction allowing
the unit to fall, which could cause injury.
Do Not rely solely on mechanical or hydraulic
jacks for support. Use adequate jack stands
or equivalent support
