Product Overview
Overall Height:
Roll Bar - Up Roll Bar - Down
71.9 in. (182.6 cm)
53.8 inches (136.7 cm)
Tread Width: (Center to Center of
Tires, Widthwise)
Drive Wheels 41.9 inches (106.4 cm)
Caster Wheels 37.3 inches (94.7 cm)
Wheel Base: (Center of Caster Tire to
Center of Drive Tire)
53.7 inches (136.4 cm)
Curb Weight:
1290 lb (585 kg)
Torque Requirements
Bolt Location
Torque
Cutter Housing Spindle
Nut
140-145 ft-lb (190–197
N-m)
Blade Mounting Bolt
(lubricate with anti-seize)
55-60 ft-lb (75-81 N-m)
Engine Deck/Front Frame
Mount Bolts
30-35 ft-lb (41-47 N-m)
Anti-Scalp Roller Nyloc
Nut See Figure 10
30-35 ft-lb (41-47 N-m)
Anti-Scalp Roller Whizlock
Nut See Figure 10
30-35 ft-lb (41-47 N-m)
Engine Mounting Bolts
30-35 ft-lb (41-47 N-m)
Wheel Lug Nuts
90-95 ft-lb (122-129 N-m)
Wheel Motor Mounting
Bolts
72-77 ft-lb (98-104 N-m)
Wheel Hub Slotted Nut minimum 125 ft-lb (169
N-m)
Rollover Protection System
(Roll Bar) Mounting Bolts
30-35 ft-lb (41-47 N-m)
Deck Drive Jackshaft Nut
75-80 ft-lb (102-108 N-m)
Clutch Retaining Bolt
(secured with threadlocker)
55-60 ft-lb (75-81 N-m)

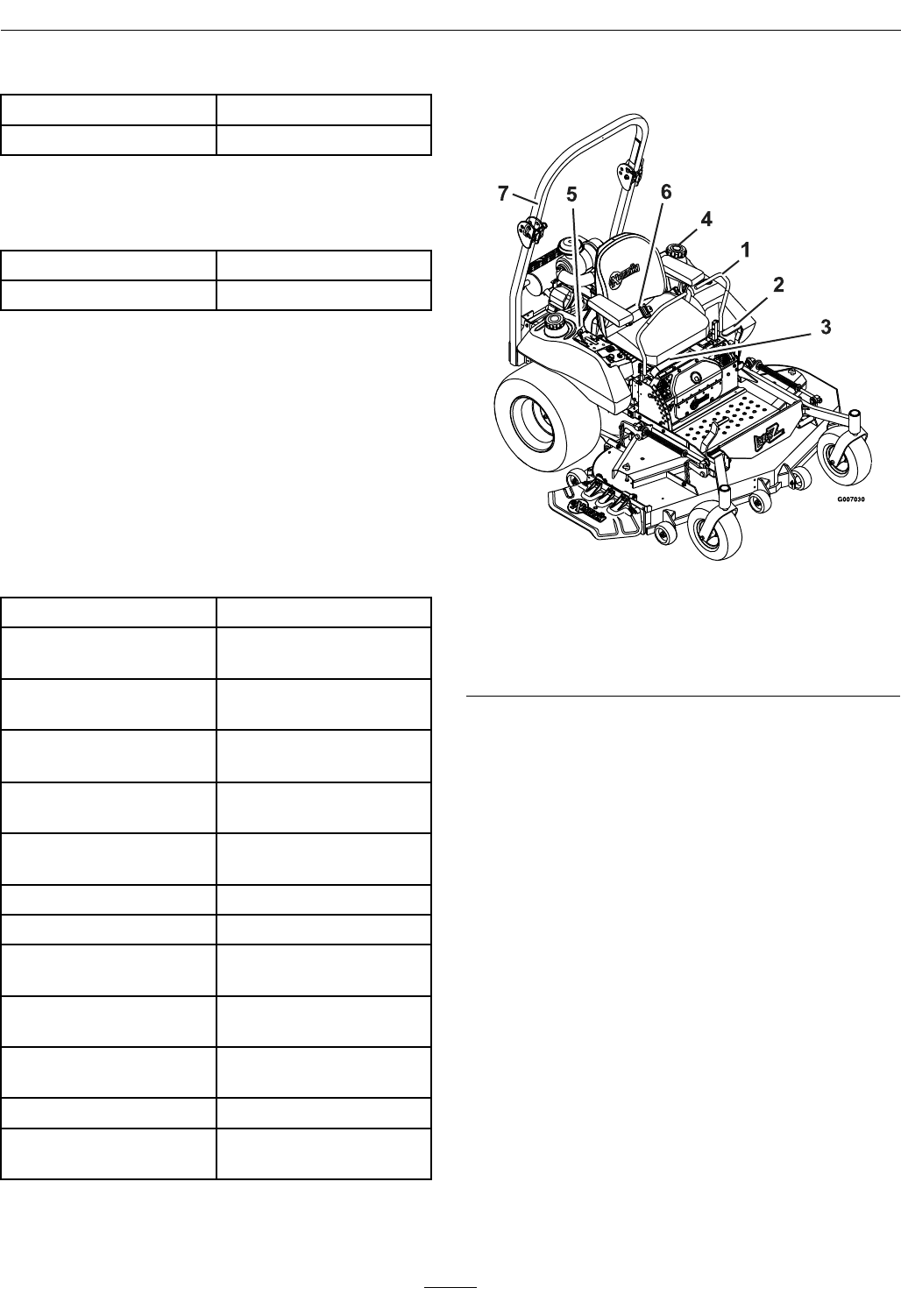

Product Overview
Figure 4
1. Motion Control Lever 5. Controls
2. Parking Brake Lever
6. Seat Belt
3. Height-of-Cut Lever
7. Roll Bar
4. Fuel Cap (Both Sides)
17
