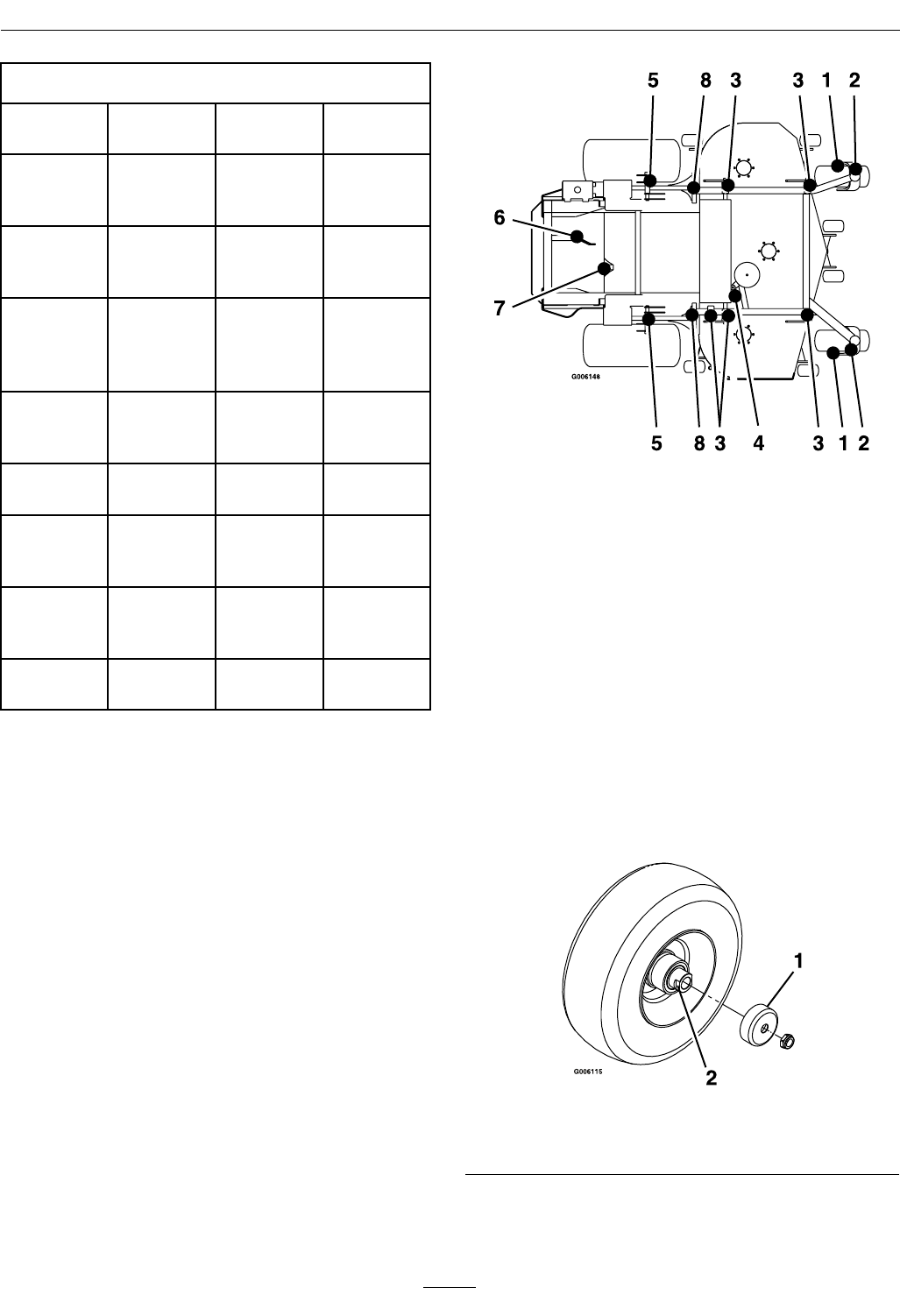

Maintenance
Lubrication Chart
Fitting
Locations
Initial
Pumps
Number of
Places
Service
Interval
1. Front
Caster
Wheel Hubs
*0
2
*Yearly
2. Front
Caster
Pivots
*0
2
*Yearly
3. Height
Adjustment
Shaft
Bearings
1
5 40 Hours
4. Deck
Drive Belt
Idler Arm
1 1
Yearly
5. Brake
Brackets
1 2
200 Hours
6. Mule
Drive Belt
Idler Arm
1 1
Yearly
7. Pump
Drive Belt
Idler Arm
1 1
Yearly
8. Deck
Rear Struts
1 2
40 Hours
* See step 3 for special lubrication instructions on
the front caster pivots and the Lubricate Caster
Wheel Hubs section for special lubrication
instructions on the front casters wheel hubs.
Number 6 (Mule Drive Belt Idler Arm) Located
Under Engine Frame
Number 7 (Pump Drive Belt Idler Arm) Located
Under Engine Frame
3. Lubricate front caster pivots once a year. Remove
hex plug and cap. Thread grease zerk in hole and
pump with grease until it oozes out around top
bearing. Remove grease zerk and thread plug back
in. Place cap back on.
Lubricate Caster Wheel Hubs
Service Interval: Yearly
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
Figure 13
1. Seal guard 2. Spacer nut with wrench
ats
2. Remove caster wheel from caster forks.
3. Remove seal guards from the wheel hub.
30
