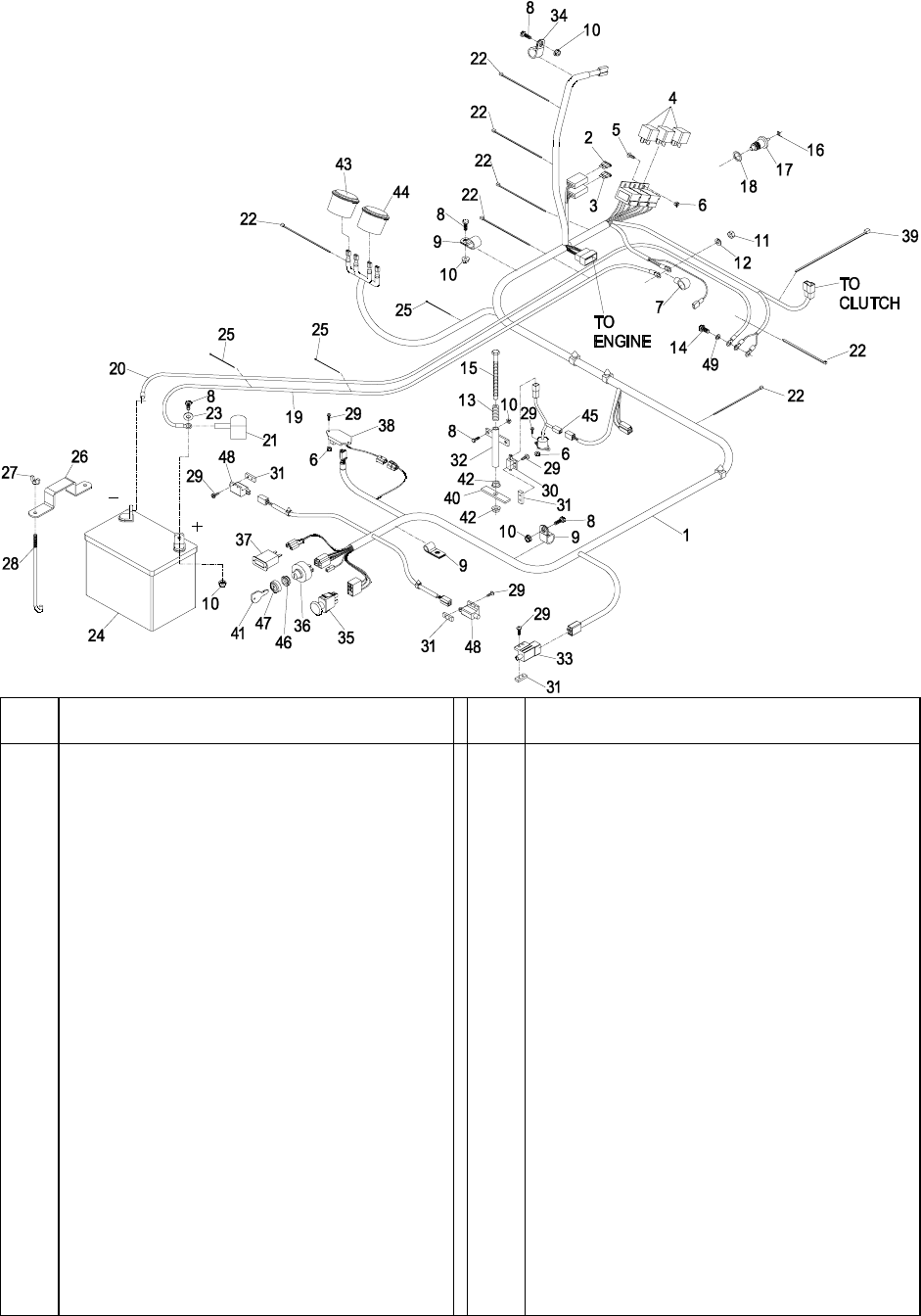

KAWASAKI 27 HP LIQUID-COOLED ELECTRICAL GROUP
Ref.
No.
Qty.
Part No. Description Req'd.
Ref.
No.
Qty.
Part No. Description Req'd.
1à
103-0883 Harness-wiring..................... 1 26 1-633652 Holdown-battery .................. 1
2 1-816001 Fuse-20 amp ....................... 1 27 1-543792 Wingnut, nyloc..................... 2
3 1-816003 Fuse-30 amp ....................... 1 28 1-633651 Bolt, battery holddown......... 2
4 1-643275 Relay, 12V .......................... 3 29 3290-500 Screw, #10-24x5/8 ..............12
5 1-803071 Screw, machine #10-24x1/2 2 30 1-513152 Switch- seat N.C.................. 1
6 3296-2 Nut, nyloc #10-24 ................ 6 31 1-633181 Plate- tapped....................... 4
7 1-543393 Insulator, solenoid + ........... 1 32 1-522424 Spring mount wldmt............. 1
8 321-4 Screw, 1/4-20x3/4................ 7 33 1-633111 Switch-brake N.O./N.O........ 1
9 1-633396 Clip- loom .69....................... 3 34 1-513762 Clip-loom .50 ....................... 1
10 32128-33 Nut, 1/4-20 whizlock ............ 7 35 1-633673 Switch.................................. 1
11 33014-00 Nut, hex M8-1.25 ................ 1 36 103-0206 Switch-ignition w/ keys ........ 1
12 3256-23 Washer, 5/16 SAE .............. 1 37 1-513374 Meter- engine hours ............ 1
13 1-523415 Spring- seat switch .............. 1 38 100-6186 Module, seat delay .............. 1
14 33114-016 Screw, hex M8-1.25x16 ...... 1 39 1-643115 Plastic tie (large) ................. 1
15 1-800282 Screw, 5/16-18x7................. 1 40 1-513180 Actuator, seat switch ........... 1
16
1-643145 Tab, #10stud .25 Spade 45° 1
41 1-603511 Keys, ignition ....................... 1
17 103-0283 Sender Unit, Temp .............. 1 42 32128-20 Nut, 5/16-18 whizlock.......... 2
18 1-643153 Washer, Alum. Sender gskt. 1 43 1-643037 Gauge, Voltmeter ................ 1
19 1-523279 Cable- battery (+)................. 1 44 1-643021 Gauge, Temperature........... 1
20 1-633307 Cable-battery (-)................... 1 45 1-633782 Switch, tilt ............................ 1
21 1-543391 Insulator-battery................... 1 46 103-0498 Nut, Ignition ......................... 1
22 1-303335 Plastic tie (medium) ............ 7 47 103-0499 Seal, Ignition........................ 1
23 3256-2 Washer, 1/4 flat ................... 2 48 1-513051 Switch, drive lever N.O........ 2
24 103-0293 Battery-12V.......................... 1 49 3256-23 Washer, 5/16 SAE............... 1
25 1-303287 Plastic tie (small) ................. 3
à Use dielectric grease on all wiring harness connectors.
