11

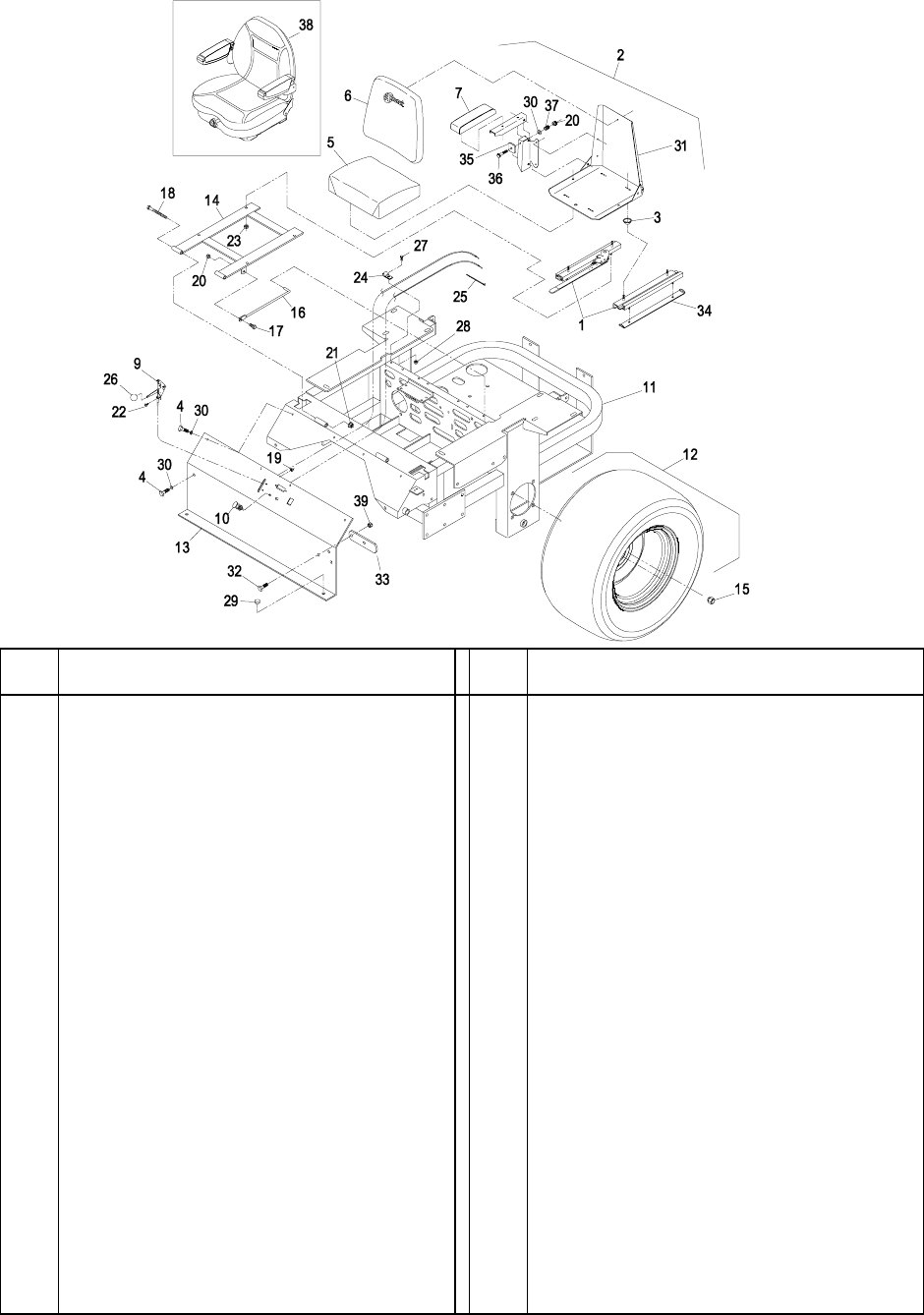

MAIN FRAME GROUP
Ref.
No.
Qty.
Part No. Description Req'd.
Ref.
No.
Qty.
Part No. Description Req'd.
1 1-643255 Track, seat (4” adjustable) ... 1 23 32128-20 Nut, whizlock 5/16-18 ........... 4
2 103-0287 Seat (All units except 26hp Koh) 1 24 1-513762 Clip, loom (.50) ..................... 1
3 1-543401 Spacer, seat track................ 2 25 1-303335 Plastic tie (lrg)....................... 1
4 322-3 Screw, 5/16-18 x 3/4............ 6 26 1-513592 Ball, (red) throttle cable ........ 1
5 103-0290 Cushion, seat....................... 1 27 321-6 Screw, 1/4-20 x 1.0............... 1
6 103-0289 Cushion, backrest ................ 1 28 32128-33 Nut, whizlock 1/4-20 ............. 1
7 103-0292 Cushion, armrest (RH) ......... 1 29 1-513658 Bumper ................................. 2
8∗ 103-0291 Cushion armrest (LH).......... 1 30 3256-23 Washer, 5/16 SAE flat.......... 8
9 1-633696 Cable, throttle....................... 1 31 1-633859 Seat Frame........................... 1
10 1-603336 Cable, choke........................ 1 32 323-6 Screw, 3/8-16 x 1.................. 2
11 1-642324-03 Frame, engine deck ............. 1 33 1-633964-03 Stop, Park Brake .................. 1
12 1-633970 Wheel/tire assy. (60” & 72”). 2 34♦ 1-633872-03 Stop/Spacer
1-633993 Tire, 24x12-12 4 ply (60” & 72”) 2 (26 HP Kohl & 23 & 27 HP Kaw liq-cooled ) 2
1-633992 Wheel (60” & 72”) ................ 2 35 103-0284 Tab, Armrest Adjustment...... 2
1-653010 Wheel/tire assy. (52”)........... 2 36 322-7 Screw, 5/16-18 x 1 1/2.......... 2
1-653160 Tire, 23x9.5-12 4 ply (52”).... 2 37 1-633349 Spring, Compression ............ 2
1-653158 Wheel (52”) .......................... 2 38∇ 1-633821 Seat, Suspension (26hp Koh ) 1
13 1-633965-03 Front, Console ..................... 1 1-631845 Kit, Pan w/seat & back ......... 1
14 1-632187-03 Frame, seat mount............... 1 1-631844 Kit, Armrest Assy.................. 1
15 242-50 Nut, wheel 1/2-20 ................ 8 1-631843 Kit, Boot, upper&lower wire .. 1
16 1-633293 Rod, seat hold-up................. 1 1-631842 Kit, ArmrestPad w/hardwre... 1
17 322-5 Screw, 5/16-18 x 1............... 1 1-631846 Kit, Damper w/hardware ....... 1
18 323-39 Screw, 3/8-16 x 5................. 2 1-631847 Kit, Rollers, bumpers&hrdwre 1
19 3296-2 Nut, nyloc #10-24................. 2 1-631848 Kit, Spring,Cable & hardware 1
20 3296-29 Nut, nyloc 5/16-18................ 3 1-631849 Kit, Knob,Shaft & hardware .. 1
21 3296-39 Nut, nyloc 3/8-16.................. 2 1-643281 Switch, Seat ......................... 1
22 1-807513 Screw, #10-24 x 1/2............. 2 39 3290-357 Nut, whizlock 3/8-16 ............. 1
∗ Not Illustrated
∇ The suspension seat is standard on the Kohler 26 HP EFI units, it is an optional kit on other units PN MSSLZ.
♦ The stop/spacer is installed with the slotted holes to the rear on 26HP Kohler units and the slotted holes to the front on Kawasaki
liquid-cooled units. NOTE: If a Suspension Seat is installed on a Kawasaki liquid-cooled unit the stop/spacer must be turned
around and re-installed with the slotted holes to the rear.
Exmark black touch up spray paint - gloss black
