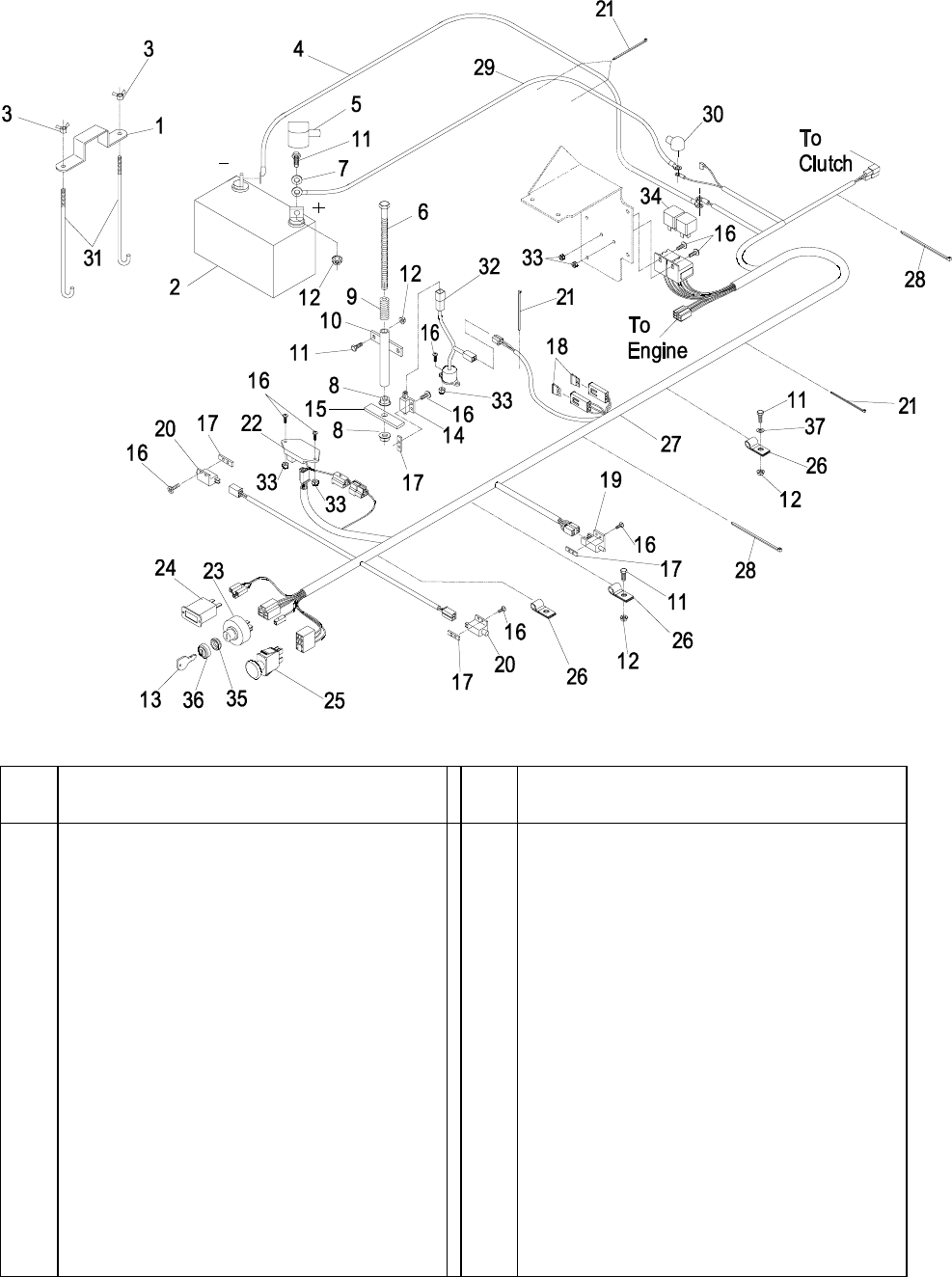

KOHLER 23 & 25 HP AIR-COOLED ELECTRICAL GROUP
Ref.
No.
Qty.
Part No. Description Req'd.
Ref.
No.
Qty.
Part No. Description Req'd.
1 1-633652 Hold down-battery .............. 1
19 1-633111 Switch-brake N.O/N.C ....... 1
2
103-0293 Battery-12V ........................ 1
20 1-513051 Switch-drive lever N.O. ..... 2
3
1-543792 Wingnut, nyloc.................... 2
21
1-303287 Plastic tie (small)................ 5
4
1-633307 Cable-battery (-) 40”........... 1
22
100-6186 Module-seat delay.............. 1
5
1-543391 Insulator-battery ................. 1
23
103-0206 Switch-ignition w/ keys....... 1
6
1-800282 Screw, 5/16-18x7 ............... 1
24
1-513374 Meter-engine hours............ 1
7
3256-2 Washer, 1/4 flat.................. 2
25
1-633673 Switch ................................ 1
8
32128-20 Nut, 5/16-18 whizlock......... 2
26
1-633396 Clip-Loom .69 .................... 3
9
1-523415 Spring-seat switch.............. 1
27
103-0294 Harness-wiring................... 1
10
1-522424 Spring mount wldmt ........... 1
28
1-303335 Plastic tie (large) ................ 2
11
321-4 Screw, 1/4-20x3/4 .............. 6
29
1-523281 Cable-battery (+) 30”.......... 1
12
32128-33 Nut, 1/4-20 whizlock........... 6
30
1-543393 Insulator, solenoid (+) ........ 1
13
1-603511 Keys, ignition...................... 1
31
1-633651 Bolt, battery hold down ...... 2
14
1-513152 Switch- seat N.C. ............... 1
32
1-633782 Switch, tilt........................... 1
15 1-513180 Actuator, seat switch.......... 1 33
3296-2 Nut, #10-24 Hex Nyloc....... 6
16
3290-500 Screw, #10-24x5/8 ............. 14
34 1-643275 Relay, 12V ......................... 2
17
1-633181 Plate, tapped ...................... 4
35 103-0498 Nut, Ignition........................ 1
18
1-816001 Fuse-20 amp...................... 2
36 103-0499 Seal, Ignition ...................... 1
37 3256-22 Washer, ¼ SAE................. 1
à Use dielectric grease on all wiring harness connectors.
