Dimension One Spas - Bay Collection - Owner’s Manual
19
Operating the Dynamic Massage Sequencer
Sequence Button
The Sequence button chooses between the six different massage
sequences. The light glows to indicate the current sequence.
When all jets are operating at once (the default mode) none of the
sequence lights will glow.

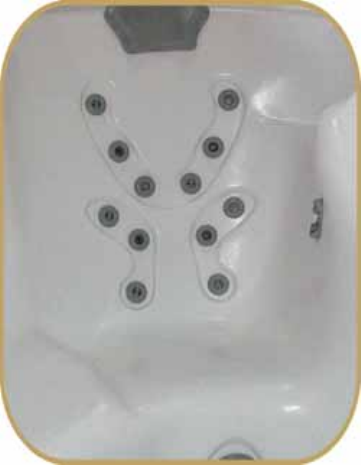

Massage Zones
The lights in the Massage Zone Indicator (Human Figure) show which
zone is currently selected. When the desired sequence is found with the
Sequence button, press the Start/Stop button to start your massage.
Push the Jets button to turn on the jet pump.
Select a sequence by pushing the Sequence button until the desired one
is found (the lights in the Human Figure show the zones that will be
active). Press the Start/Stop button to begin the massage. Use the Speed
button to control how quickly the spa moves through the massage
sequence.
Sequence #1 steps through each individual zone one at a time, from
zone A through F, then reverses the sequence.
Sequence #2 activates all zones at once, then deactivates individual
zones one at a time, from A through F. Then it reverses that sequence.
Sequence #3 activates alternate groups of zones. It activates Zones A, C,
and E all at once, then switches to Zones B, D, and F.
Sequence #4 steps through each individual zone one at a time, from
zone A through F, then it starts over in groups of two zones – activating
zones A and B, then zones B and C, etc.
Sequence #5 starts with Zone A and adds new zones one at a time until
all zones are active. Then it reverses the sequence by removing zones
one at a time until all zones are inactive.
Sequence #6 activates random pairs of zones at one time, starting with
adjacent zones, (A and B, then B and C, etc.), then opposite zones (A
and F, then B and F, etc.), and finally the middle zones (B and E, then C
and D, etc.).
