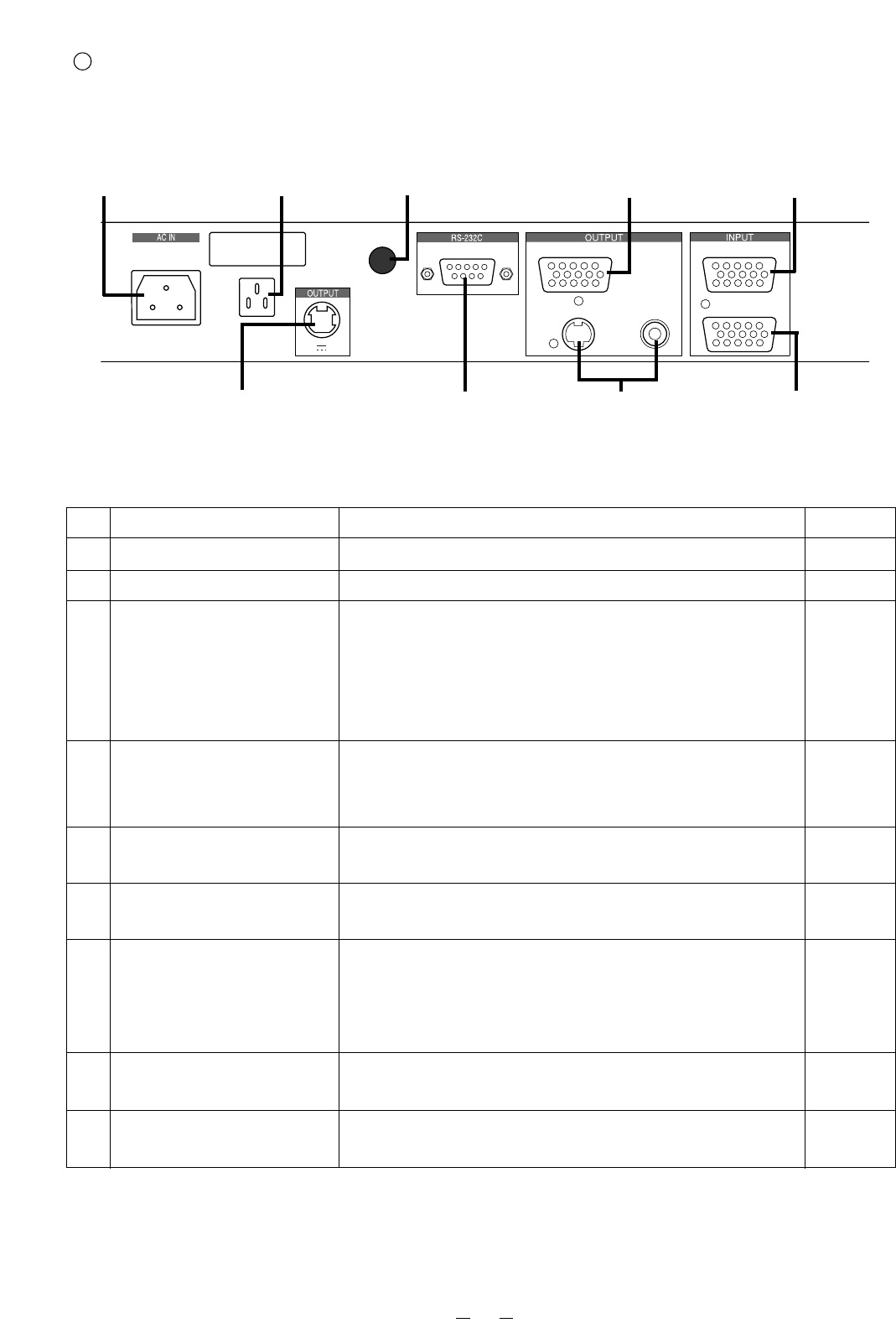

21. Power Cord Receptacle 22. AC Outlet
28. Video-in Terminal 1
Part Name Function
Reference Page
21
Power Cord Receptacle [AC IN]
Connected to the power cord.
22 AC Outlet To supply power up to 400W (Not interlocked with the power switch).
23 DC Output Terminal To output 12VDC. The LCD Color Monitor (LM-5011N) or
[OUTPUT] ELMO Desk-top Presenter (HD-80XG) can be connected with the
supplied DC cable.
Note: Do not connect any equipment other than LM-5011N
and HD-80XG.
24 Infrared Sensor The light receiver of the wireless remote control. When operating
the Presenter from behind, aim the wireless remote control at this
light receiver.
25 RS-232C Terminal To connect a PC with an RS-232C cable to control the Presenter from
[RS-232C] the PC.
26 Analog RGB Output Terminal To connect RGB input equipment, such as an LCD Projector and a
[OUTPUT ⋅ RGB OUT] Multi-SYNC Monitor, to output the image.
27 Video-out Terminal To connect a NTSC/PAL conformable monitor, such as a TV
[OUTPUT ⋅
S-VIDEO/VIDEO
] monitor and the LCD Color Monitor (LM-5011N), to output the
S-Video (mini DIN 4P) image.
Composite-Video (RCA pinjack)
28 Video-in Terminal 1 Video signal from this terminal is output when input selection is set
[INPUT ⋅ RGB1] at RGB1.
29 Video-in Terminal 2 Video signal from this terminal is output when input selection is set
[INPUT ⋅ RGB2] at RGB2.
24. Infrared Sensor
23. DC Output Terminal
25. RS-232C Terminal
26. Analog RGB Output Terminal
27. Video-out Terminal
- S-Video (mini DIN 4P)/
- Composite-Video (RCA pinjack)
29. Video-in Terminal 2
P.11
P.25
P.19
P.19
