Button Name Function

Reference Page

32 POSITION To adjust the screen position and image size of the video output.

33 UPPER To turn ON/OFF the upper lighting unit.

34 BASE To turn ON/OFF the base lighting unit.

35 MAIN To select the image from the built-in camera.

36 RGB1 To select the RGB1 image input.

37 RGB2 To select the RGB2 image input.

38 TELE To zoom in.

39 WIDE To zoom out.

40 NEAR To move the focus near.

41 FAR To move the focus far.

42 AF To focus automatically.

43 IRIS NORMAL To iris automatically.

44 IRIS OPEN To open the iris manually.

45 IRIS CLOSE To close the iris manually.

P.22

P.19

P.19

P.19

P.19

P.19

P.22

P.22

P.23, P.24

P.23, P.24

P.23

P.24

P.24

P.24

35. MAIN

38. TELE

39. WIDE

32. Position

34. BASE

33. UPPER

37. RGB2

36. RGB1

41. FAR

40. NEAR

43. IRIS NORMAL

44. IRIS OPEN

45. IRIS CLOSE

42. AF

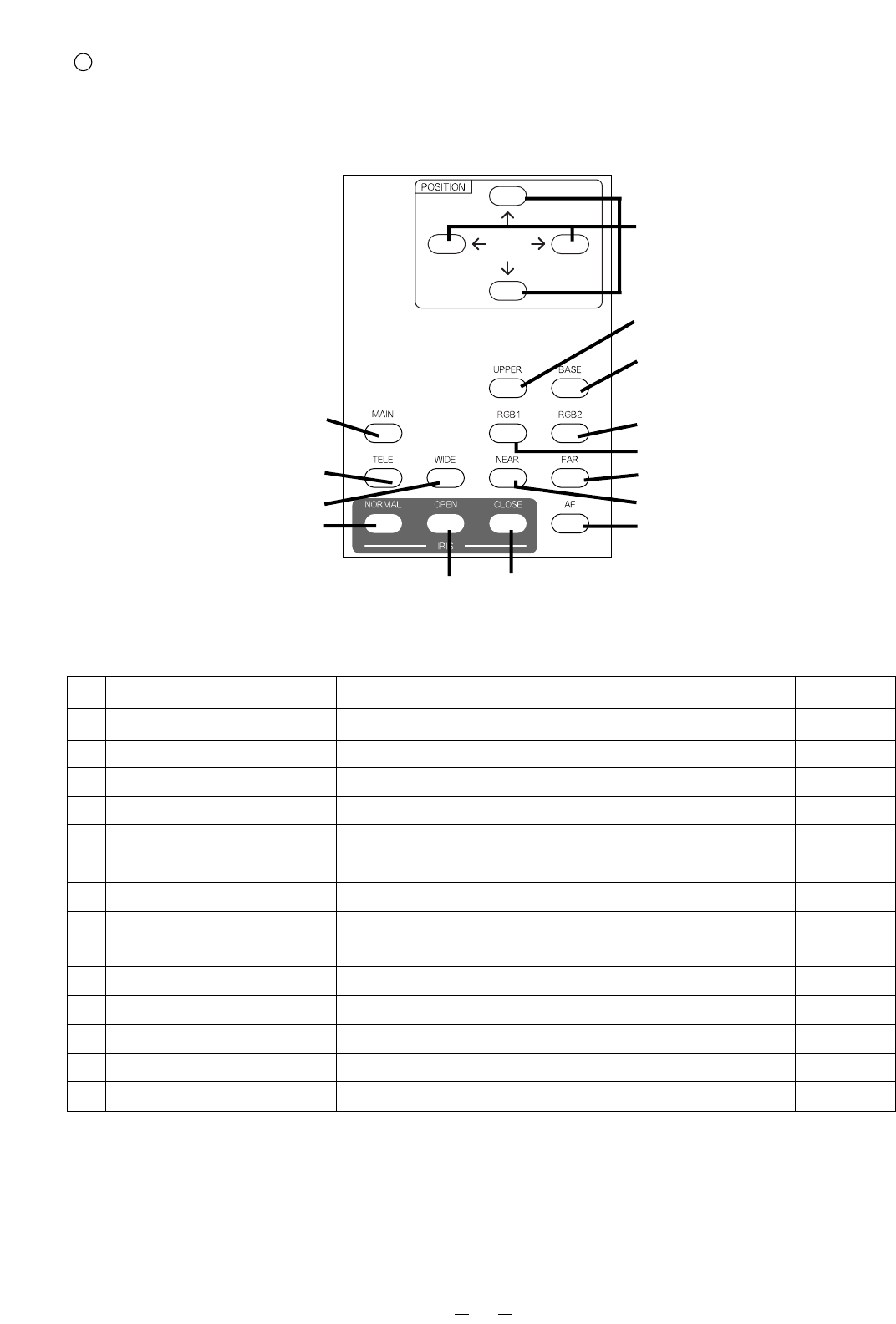

Wireless Remote Control
